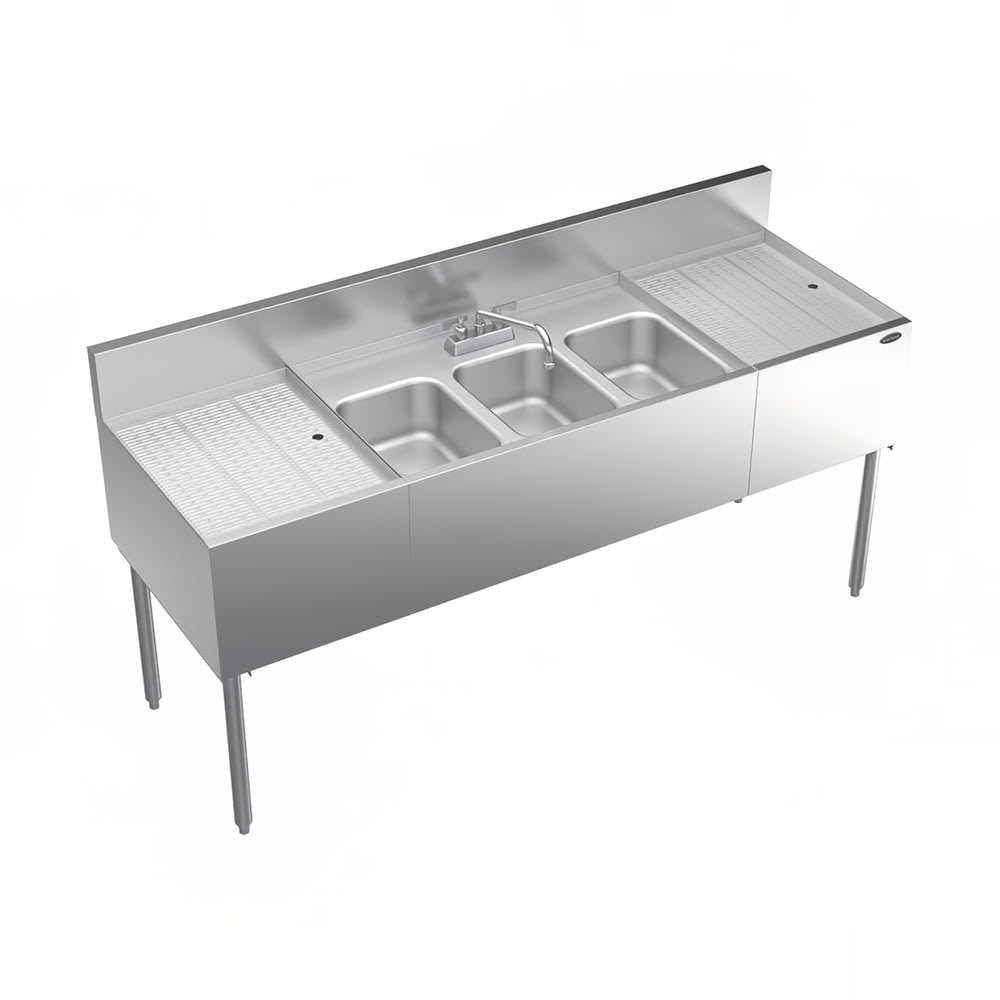

Krowne KR24-63C 72" 3 Compartment Sink w/ 10"L x 14"W Bowl, 10" Deep

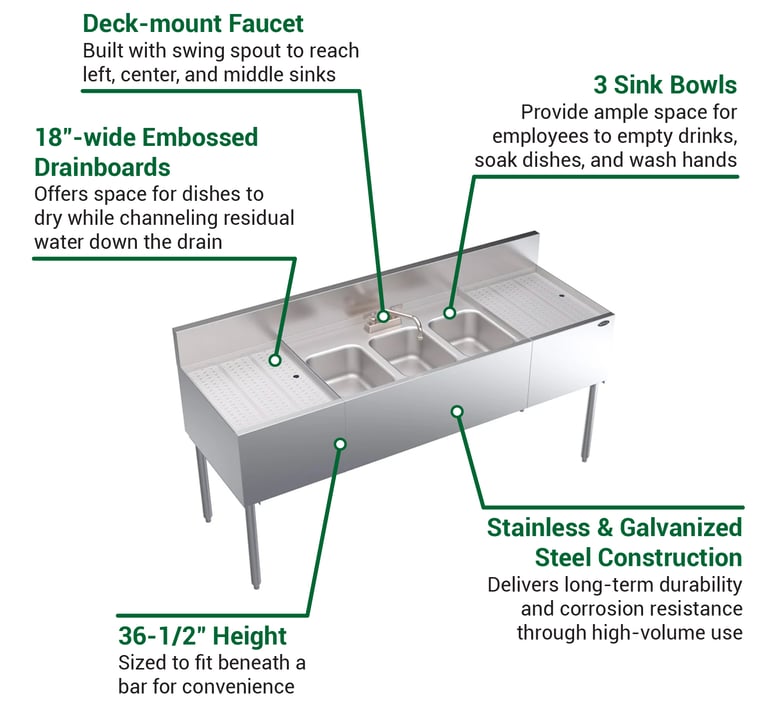

To establish a streamlined dishwashing station, the Krowne KR24-63C Royal underbar sink features three 10-inch-long by 14-inch-wide by 10-inch-deep sinks with 18-inch-wide embossed drainboards on the left and right sides. Its center deck-mount faucet boasts a swing spout that can be adjusted to reach the left, middle, and right sink bowls. To minimize overflowing risks, each sink is built with a left rear-corner drain and removable overflow standpipe. As dishes dry, they can be placed on the drainboards, which are dotted with small holes to guide water into the drain and prevent liquid from pooling on the unit's surface. A backsplash behind the faucet protects nearby areas from spills and splashes.

The Krowne KR24-63C underbar sink measures 72 inches long by 24 inches deep by 36¹⁄₂ inches tall for behind-bar installation. Its stainless and galvanized steel construction provides lasting durability and corrosion resistance while blending in with other back-of-house equipment. This unit rests on 1⁵⁄₈-inch-diameter tubular legs that elevate the structure, and the open base enables users to thoroughly clean beneath the sink as needed. To prevent rocking or wobbling during use, the gray plastic feet can be raised or lowered to stabilize the unit on sloped or uneven surfaces.

Product Details

• Featured in the Royal series
• For behind-the-bar use
• (3) 6-gal.-capacity sink bowls with left rear-corner drains
• (3) 7¹⁄₂-in. removable overflow pipes
• 4-in. center deck-mount faucet with swing spout and ceramic cartridge valves
• 18-in.-wide embossed drainboards on left and right sides
• Front apron constructed of 20-ga. stainless steel clad over 20-ga. galvanized steel
• 20-ga. galvanized steel back and base
• Sides, backsplash, drainboards, and sink bowls constructed of 20-ga. stainless steel
• 1⁵⁄₈-in.-diameter tubular stainless steel legs
• Adjustable gray plastic bullet feet

Dimensions & Utilities

• Sink bowls: (3) 10 in. L x 14 in. W x 10 in. D
• Overall: 72 in. W x 24 in. D x 36¹⁄₂ in. H
• Hot/cold water: ¹⁄₂-in. IPS
• Drain: 1¹⁄₂-in. IPS

Product Features

From The Manufacturer

Royal Series Underbar Sink Unit, three compartment, 72"W x 24"D, 10" wide x 14" front-to-back x 10" deep compartments, 18" embossed drainboards on left & right, deck mount Royal Series faucet with swing spout, apron on front & sides, (3) removable overflow standpipes, stainless steel top, front, & sides, stainless steel legs with adjustable thermoplastic bullet feet, NSF

*Image may not depict product color, inclusions or accessories.

Krowne KR24-63C Specifications

Spec Attribute	Spec Value
Manufacturer	Krowne
Backsplash Height (in)	6.5
Bowl Depth (in)	14
Bowl Length (in)	10
Bowl Width (in)	10
Depth (in)	24
Drain Size	1.5
Drainboard Length (in)	18
Drainboard Location	Both Sides
Faucet Centers (in)	4
Faucet Mount	Deck
Includes	Faucet
Height (in)	36.5
Length (in)	72
No. of Compartments	3
Sink Depth (in)	10
Sink Length (in)	14
Sink Width (in)	10
Product	Compartment Sinks
Series	Royal Series
Product Type	Commercial Sinks
Stainless Steel Gauge	20 gauge
Special Features	All Stainless Construction
Special Features	Under Bar
Warranty	1-year Limited
Width (in)	24
Weight	145.00
