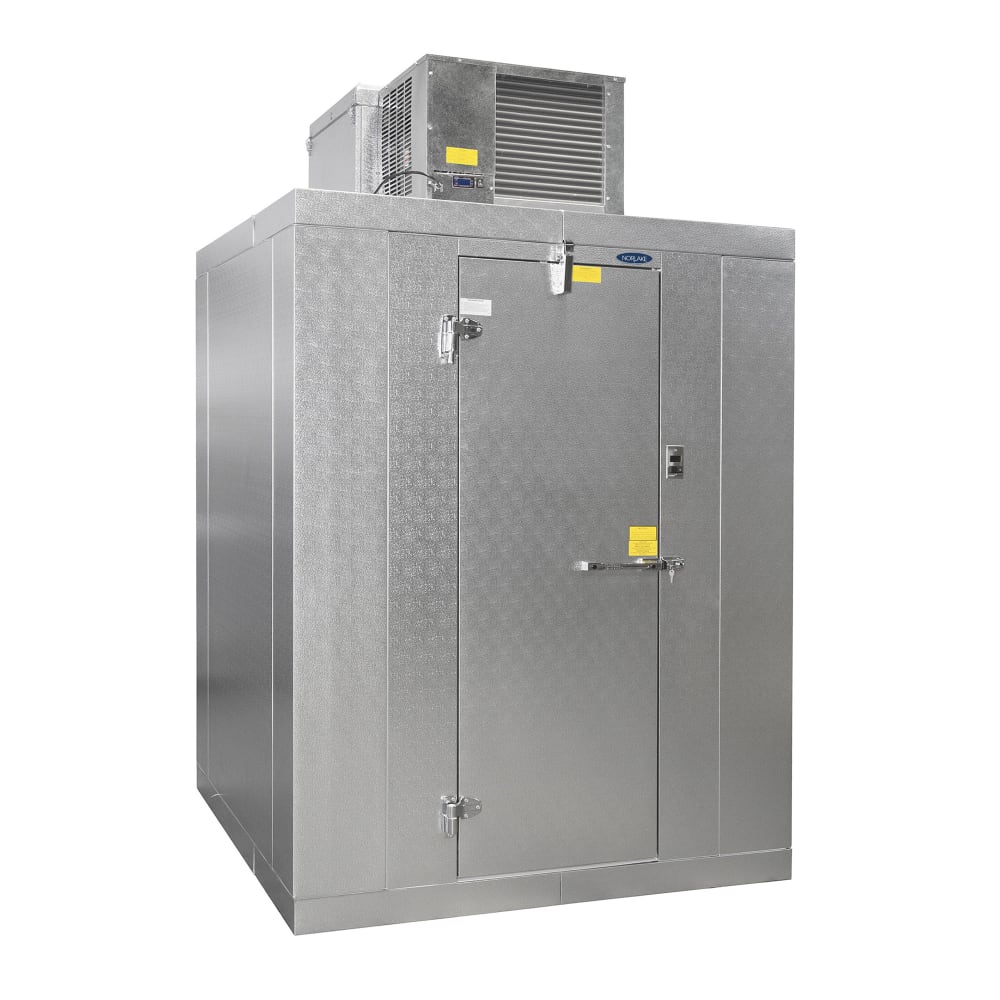

Norlake KODB88-C 8' x 8' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

As a standard model in the Kold Locker™ series, the Norlake KODB88-C walk-in outdoor cooler measures 8 feet wide by 8 feet deep by 6 feet 7 inches high and features a 26-inch-wide by 66-inch-tall door. Its modular wall, floor, and ceiling panels can be assembled using the male and female mating rails and cam locking fasteners to create a properly aligned, airtight seal. To conserve energy and create a durable panel structure, 4-inch-thick polyurethane insulation is foamed in place into each panel. Its interior and exterior panels are finished with stucco-embossed, corrosion-resistant 26-gauge coated steel, while the flooring is made of smooth aluminum. To accommodate heavy shelves of bulk foods, the floor can support an evenly distributed load of 800 pounds per square feet.

The entrance door opens smoothly and self-closes due to its cam-lift hinges and spring-actuated door closure to ease stocking and retrieving inventory. So staff have a full view of the interior, a vapor-proof LED light illuminates the storage area. Users can quickly turn the light on or off with the corresponding switch, and an exterior pilot light will indicate if the light is on or off. Operators quickly discern the unit's interior temperature with the digital thermometer to ensure products are stored in a food-safe environment. After business hours, the deadbolt handle can be locked. To prevent employees from becoming trapped inside the cooler, it's built with an inside safety release mechanism.

To achieve an interior temperature of 35 degrees Fahrenheit, the Norlake KODB88-C walk-in cooler comes with a top-mount Capsule Pak™ refrigeration system. For best results, this unit should be used in areas no warmer than 90 degrees Fahrenheit. A weather protection kit is included to shield the cooler from outdoor elements. For simple setup, the one-piece, 35-millimeter white membrane roof material doesn't need to be seamed or glued to the ceiling panels, and the metal trim for the roof's flashing can be secured to the wall panels with self-drilling and self-tapping TEK screws.

Product Details

• Featured in the Kold Locker and Standard collections
• For outdoor use
• Modular ceiling, floor, and wall panels with male and female mating rails and cam locking fasteners
• 4-in.-thick foamed-in-place polyurethane insulation with R-25 value
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• Corrosion-resistant, stucco-embossed 26-ga. coated steel finish on exterior and interior panels
• Smooth aluminum flooring supports an evenly distributed load of 800 lbs. per square foot
• Weather protection kit with 1-piece, 35-mm. white membrane roof material and metal trim for roof flashing
• 26-in.-wide x 66-in.-tall right-hinged, self-closing door centered on short side
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Inside safety release mechanism
• Vapor-proof LED light fixture above door
• Light switch
• Exterior pilot indicator light
• Digital thermometer
• Replaceable perimeter heater wire

Capsule Pak Refrigeration System Included

• Holding temperature: 35 degrees F
• Top/ceiling mount
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 8 ft. W x 8 ft. D x 6 ft. 7 in. H
• 120 V/60 Hz/1 ph

*Free shipping on Norlake KODB88-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Outdoor +35°F Cooler, 8' x 8' x 6'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 8' wall, locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPB075JC-E-4-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
