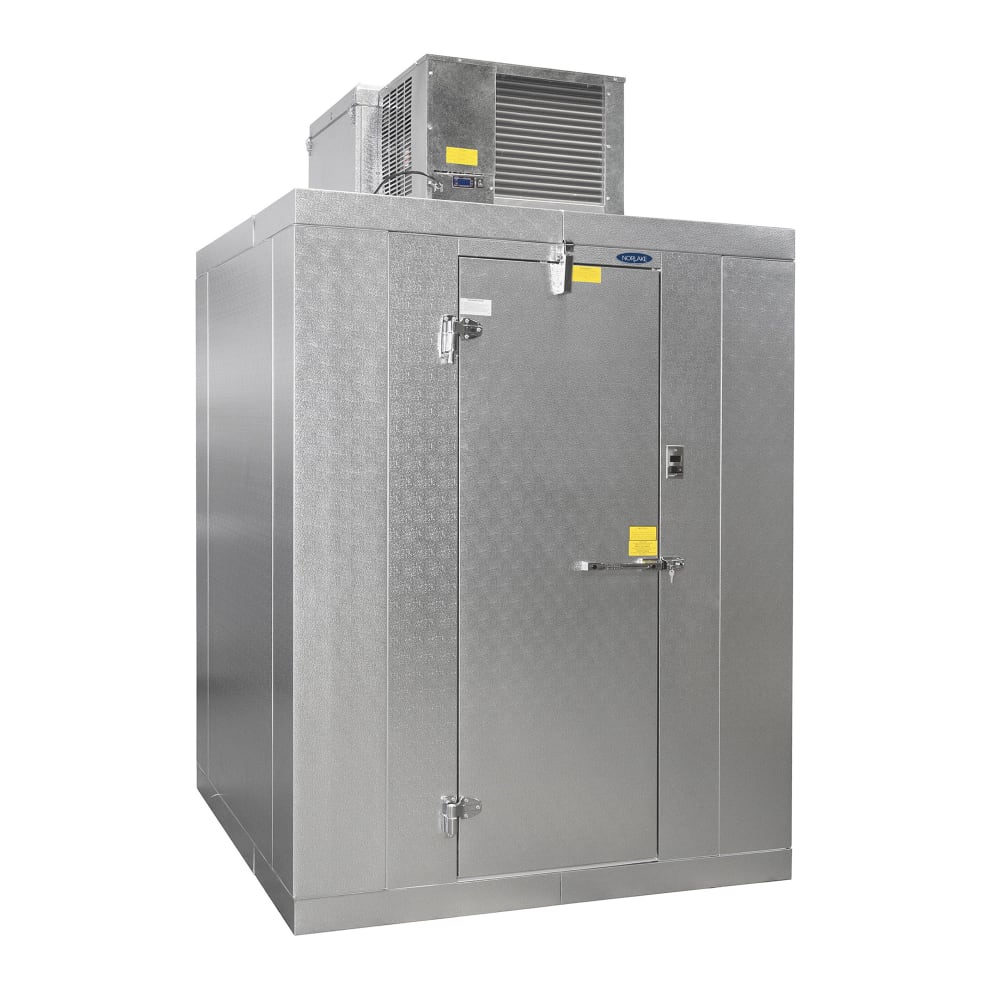

Norlake KODB77810-C 8' x 10' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

The Norlake KODB77810-C Kold Locker™ walk-in cooler is an 8-foot-wide by 10-foot-deep by 7-foot-7-inch-tall unit designed for outdoor placement. To simplify setup, its modular wall, floor, and ceiling panels feature male and female mating rails that properly align the panels during installation, and cam locking fasteners that create an airtight seal that enhances energy efficiency. All panels are foamed in place with 4-inch-thick polyurethane insulation that creates a sturdy structure and provides an R-25 thermal resistance value. The interior and exterior panels are finished with stucco-embossed, corrosion-resistant 26-gauge coated steel for lasting durability. To accommodate bulk items, the smooth aluminum flooring can accommodate an evenly distributed load of 800 pounds per square foot.

The cooler's 26-inch-wide by 78-inch-tall right-hinged door opens and closes smoothly thanks to its cam-lift hinges and spring-actuated door closer. The door closes automatically to minimize temperature fluctuations and deter pests from entering. Inside the unit, a vapor-proof LED light brightens the room, and a digital thermometer provides an accurate readout of interior temperatures. Operators can quickly turn the light on and off with the light switch, and the exterior pilot light indicates if the interior light is on. After business hours, the door's deadbolt handle can be locked to deter theft and tampering. To minimize the chance of employees getting locked inside the cooler, they can safely exit with the inside release mechanism.

Product Details

• Featured in the Kold Locker line and 77 series
• For outdoor use
• Included weather protection kit comes with 1-piece, 35-mm. white membrane roof material with metal trim for flashing
• Modular ceiling, floor, and wall panels
• Male and female mating rails
• Foamed-in-place cam locking fasteners
• 4-in.-thick foamed-in-place polyurethane insulation
• Insulation provides R-25 thermal resistance value
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• Stucco-embossed, corrosion-resistant 26-ga. coated steel finish on interior and exterior panels
• Smooth aluminum flooring accommodates an evenly distributed load of 800 lbs. per square foot
• 26-in.-wide x 78-in.-tall right-hinged, self-closing door is centered on 8-ft. side
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket for smooth door closure
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Inside safety release mechanism
• Vapor-proof LED light fixture above door
• Light switch
• Exterior pilot indicator light
• Digital thermometer
• Replaceable perimeter heater wire

Capsule Pak™ Top-mounted Refrigeration System

• Holding temperature: 35 degrees F
• Pre-charged condensing unit with a factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• Highly efficient evaporator fan motors

Dimensions & Utilities

• 8 ft. W x 10 ft. D x 7 ft. 7 in. H
• 120 V/60 Hz/1 ph

*Free shipping on Norlake KODB77810-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Outdoor +35°F Cooler, 8' x 10' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPB075JC-E-4-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
