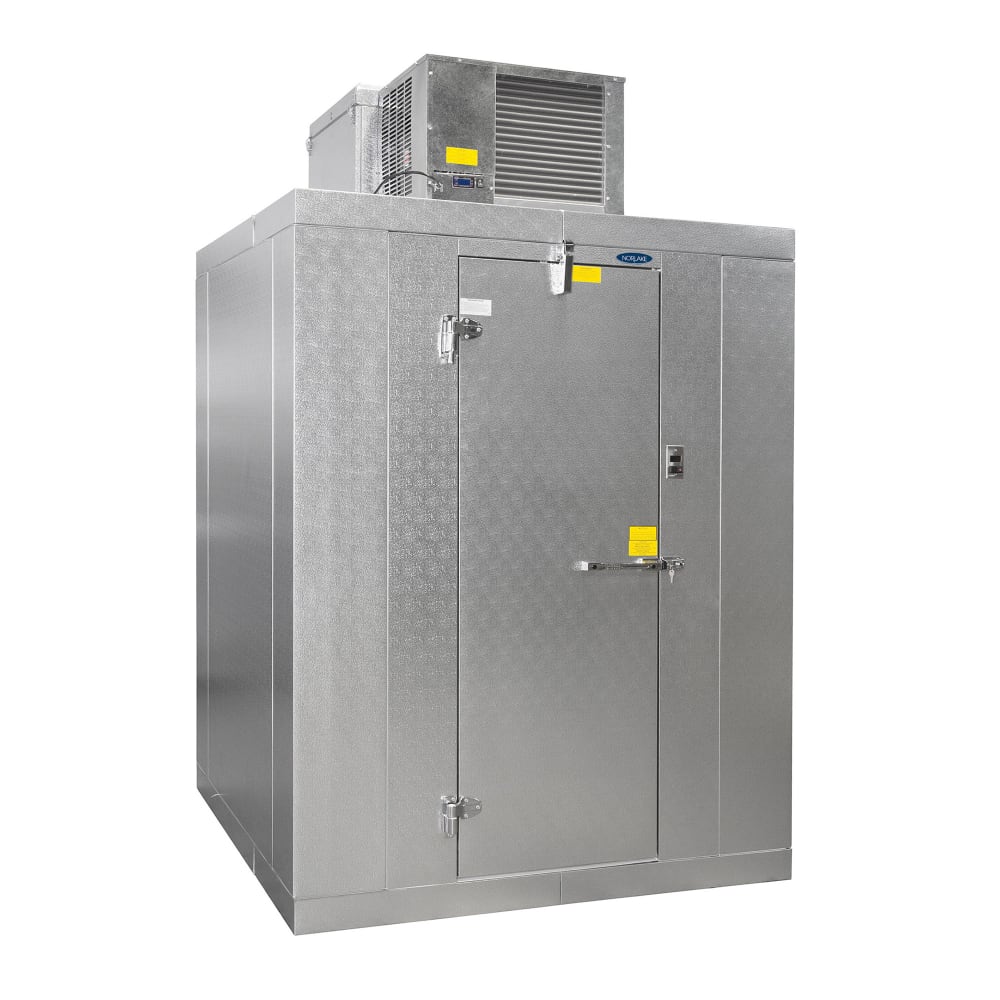

Norlake KODB7768-C 6' x 8' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

Designed to endure outdoor placement, the Norlake KODB7768-C Kold Locker™ walk-in cooler is equipped with a weather protection kit, which includes a one-piece, 35-millimeter white membrane roof material and a metal trim for the roof's flashing. To simplify installation, the roof material doesn't require seaming or gluing, and the trim can be secured to the wall panels with self-drilling, self-tapping TEK screws. Although this unit ships fully unassembled, its modular wall, floor, and ceiling pieces can be locked together and secured in the appropriate position with the cam locking fastener system and male and female mating rails. To retain generated temperatures and establish a sturdy structure, 4-inch-thick polyurethane insulation is foamed into each panel to create an R-25 thermal resistance rating for the walls, door, and ceiling. Both the interior and exterior panels are finished with a corrosion-resistant 26-gauge coated steel with stucco embossments.

This unit can support 800 pounds per square foot on its smooth aluminum flooring when the weight is evenly distributed. For enhanced visibility inside the unit, an LED light fixture is built above the door. Staff can quickly turn the light on and off with the corresponding switch, and the exterior pilot light shines when the interior light is on so operators don't leave the light on when not in use. The digital thermostat provides an accurate digital readout of interior temperatures so operators can ensure foods are held at safe temperatures. This runs with a Capsule Pak™ refrigeration system to maintain an interior temperature of 35 degrees Fahrenheit. To prevent the refrigeration unit from overworking, this cooler shouldn't be used in ambient settings hotter than 90 degrees Fahrenheit.

Users can enter and exit the Norlake KODB7768-C outdoor walk-in cooler via its 26-inch-wide by 78-inch-tall door. While its cam-rise hinges enhance mobility, its magnetic gaskets and spring-actuated door closer ensure secure door closure with a tight seal. Staff can lock the deadlock handle and padlock to prevent unauthorized access, and in the event an employee becomes locked inside the unit, they can use the inside safety release to safely exit.

Product Details

• Part of the 77 series and Kold Locker collection
• Outdoor unit
• 270-cu.-ft. capacity
• Includes weather protection kit with 1-piece, 35-mm. white membrane roof material and metal trim for roof's flashing
• Modular wall, floor, and ceiling panels
• Cam lock fastener systems and male and female mating rails
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• Floor, ceiling, and wall panels built with 4-in.-thick foamed-in-place polyurethane insulation
• R-25 thermal resistance value for walls, door, and ceiling
• Interior and exterior panels finished with corrosion-resistant, stucco-embossed 26-ga. coated steel
• Smooth aluminum flooring accommodates 800 evenly distributed lbs. per square foot
• 26-in.-wide x 78-in.-tall right-hinged, self-closing door centered on short side
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket
• Deadbolt locking handle with independent key/padlock
• Inside safety release
• Vapor-proof LED light fixture fitted above door
• Exterior pilot indicator light
• Digital thermometer with light switch
• Replaceable perimeter heater wire

Capsule Pak Refrigeration System

• Holding temperature: 35 degrees F
• Mounted on ceiling/top
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 8 ft. D x 7 ft. 7 in. H
• 120 V/60 Hz/1 ph

*Free shipping on Norlake KODB7768-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Outdoor +35°F Cooler, 6' x 8' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing left hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPB050JC-E-0-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
