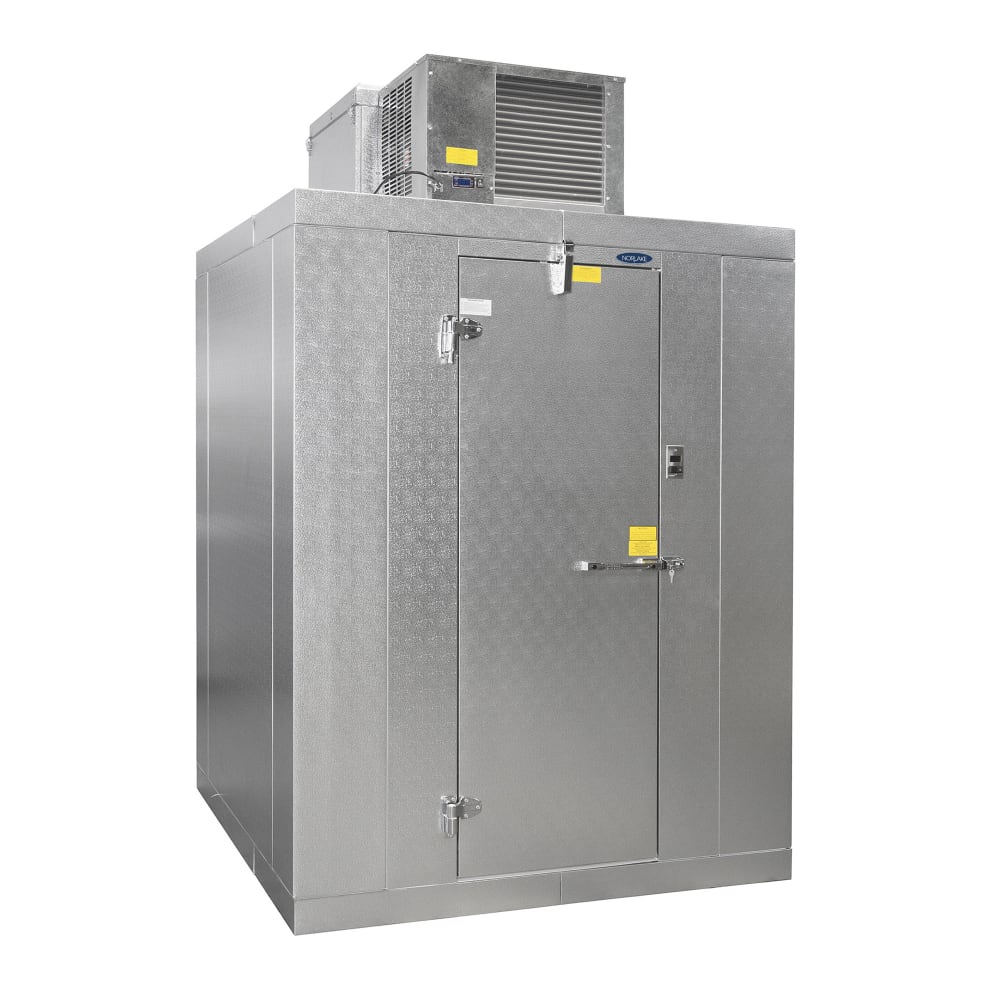

Norlake KLF812-C 8' x 12' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

To create a dedicated space for storing frozen foods, the Norlake KLF812-C Kold Locker™ walk-in freezer measures 8 feet wide by 12 feet deep by 6 feet 7 inches high. This unit is designed for use with its Capsule Pak™ refrigeration unit or the Norlake CPF150PC-S-4 Capsule Pak ECO™ refrigeration system. So this system can maintain an interior temperature of -10 degrees Fahrenheit, it must be stored in ambient settings that don't exceed 90 degrees Fahrenheit.

For simple setup, this walk-in is comprised of modular wall, ceiling, and floor panels that feature male and female mating rails to ensure proper alignment during installation, and cam locking fasteners that create an airtight seal for enhanced energy efficiency. Each panel is built with 4-inch-thick foamed-in-place polyurethane insulation for a sturdy structure and an R-32 thermal resistance value for the walls, ceiling, and door and an R-28 value for the floor. While the interior and exterior panels are finished with a corrosion-resistant, stucco-embossed 26-gauge coated steel, the floor is made of smooth aluminum and accommodates an evenly distributed load of 800 pounds per square foot.

The Norlake KLF812-C indoor freezer's 26-inch-wide by 66-inch-tall entrance door features cam-lift hinges that enable it to open and close smoothly, while the spring-actuated door closer and magnetic gasket securely hold the door shut. Inside the unit, a vapor-proof LED light positioned above the door illuminates the space, and a corresponding light switch lets users turn it on and off quickly. So operators can ensure the light is off during non-business hours, a pilot indicator light is built onto the exterior. Staff can quickly determine the interior temperature with the digital thermometer. To prevent users from becoming locked inside the unit, a safety release mechanism enables staff to exit from the inside. After business hours, the deadbolt handle and padlock can be locked to deter tampering and theft.

Product Details

• Part of the Kold Locker and Standard series
• Interior volume capacity: 490 cu. ft.
• For indoor placement
• Modular panels with male and female mating rails and foamed-in-place cam locking fasteners
• 4-in.-thick foamed-in-place polyurethane insulation
• Insulation provides R-32 value for walls, ceiling, and door and R-28 value for floor
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• Interior and exterior panels finished with 26-ga. corrosion-resistant, stucco-embossed coated steel
• Smooth aluminum flooring can support an evenly distributed 800 lbs. per square foot
• 26-in.-wide x 66-in.-tall flush-mounted, self-closing door is right hinged and centered on short side
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket for secure closure
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Inside safety release
• Digital thermometer
• Vapor-proof LED light fixture positioned above door
• Light switch
• Exterior pilot indicator light
• Replaceable perimeter heater wire

Capsule Pak Refrigeration System

• Holding temperature: -10 degrees F
• Ceiling-mounted placement on walk-in freezer box
• Pre-charged condensing unit
• Factory-assembled evaporator coil with flush design for keeping refrigeration components outside the box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 8 ft. W x 12 ft. D x 6 ft. 7 in. H
• 120 V/60 Hz/1 ph

*Free shipping on Norlake KLF812-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor -10°F Freezer, 8' x 12' x 6'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, R449 Capsule Pak Refrigeration CPF150JC-S-4-EV (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLF812-C Specifications

Documents

Spec Sheet

Warranty

Installation Guide

Brochure
