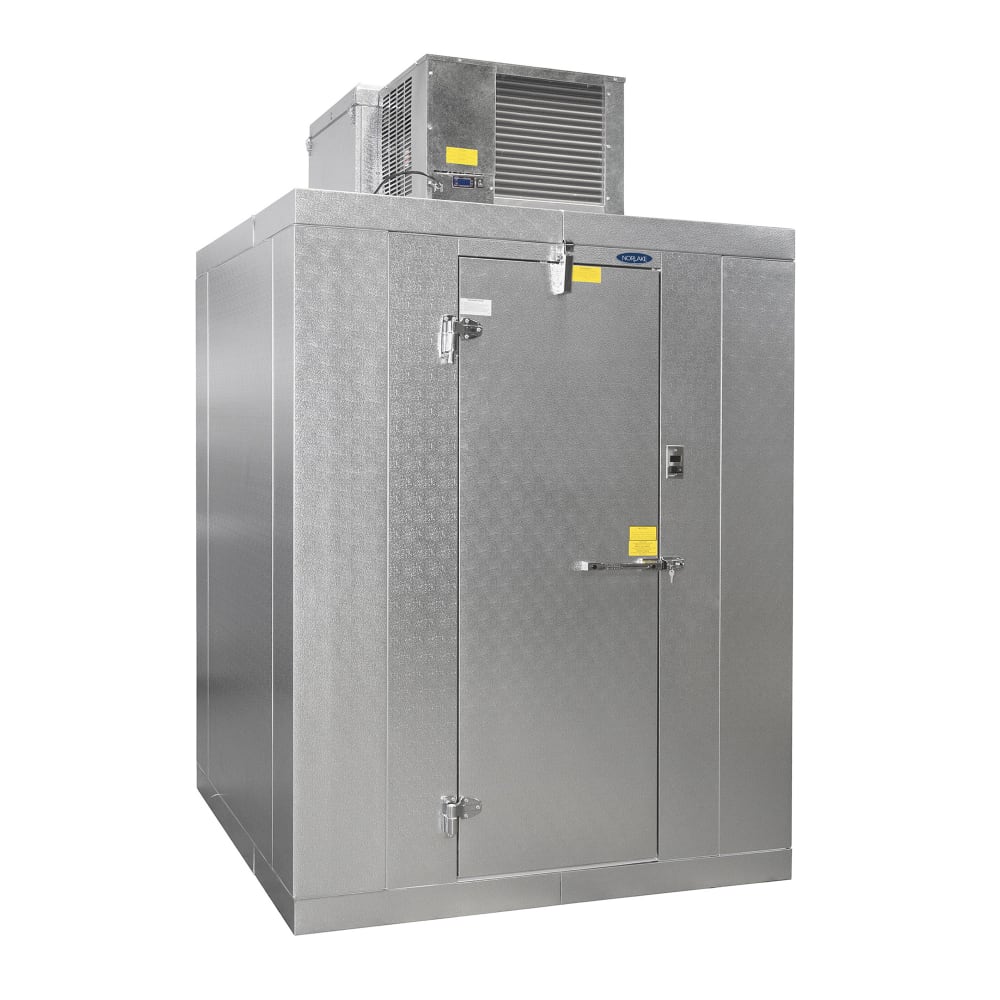

Norlake KLF77814-C 8' x 14' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

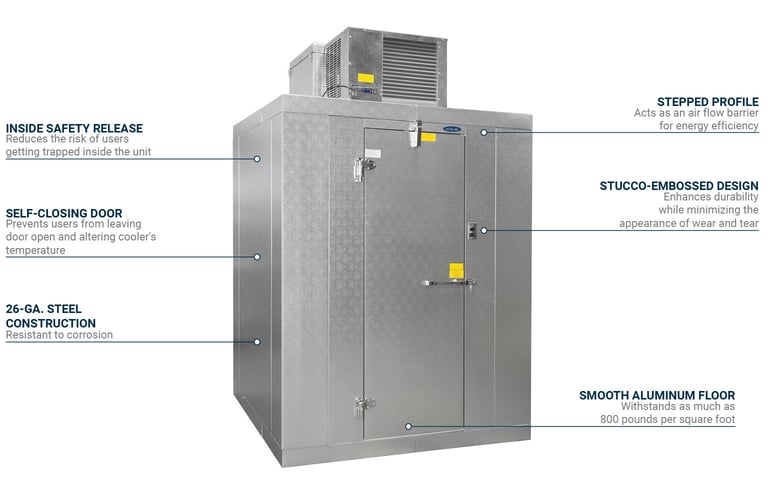

The Norlake KLF77814-C walk-in freezer comes with a Capsule Pak™ refrigeration system, which is designed for ceiling placement on the box. Great for restaurants or stores, this unit preserves fresh fruits, vegetables, and meats for prolonged storage. Its constructed of 26-gauge steel that resists corrosion and features a stucco-embossed design to hide everyday wear and tear. Its flooring is made of smooth aluminum capable of enduring 800 pounds per square feet. For simple installation, it doesn't require a drain line.

For security, the Norlake KLF77814-C indoor walk-in freezer provides a NL 9800 deadbolt locking handle with an independent key and padlock to safely secure its items when unsupervised. It has a flush-mounted door for a sleek look, and this door is self-closing to prevent users from leaving it open and allowing cool air to escape. It also has a stepped profile design works as an air flow barrier to enhance energy efficiency. To illuminate interior space, it has a vapor-proof LED light, and it measures 8 feet wide by 14 feet deep by 7 feet 7 inches high.

Product Details

• Part of the Kold Locker™ collection
• For indoor use
• 675-cu.-ft. interior space
• 26-ga. Stucco-embossed, corrosion-resistant coated steel on all surfaces except interior floor
• Full, 4-in. panels foamed in place with moisture-resistant polyurethane insulation
• Optimal walk-in storage space because polyurethane foam enables thinner walls
• Interior floor is smooth aluminum
• Floor withstands maximum of 800 lbs. per sq. ft.
• No drain line required for indoor models
• Overall dimensions: 8 ft. W x 14 ft. D x 7 ft. 7 in. H

Capsule Pak Refrigeration System Details

• Holding temperature: -10 degrees F
• Ceiling-mount placement
• Pre-charged condenser
• Factory-assembled evaporator coilwith flush design to keep refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Door Details

• Centered on short side of walk-in box
• NL 9800 deadbolt locking handle with independent key/padlock
• Inside safety release
• NL 2400 adjustable spring-loaded door hinge attached on the right
• Stepped profile design serves as airflow barrier for energy efficiency
• Flush-mounted, self-closing door
• Heavy-duty, molded ABS breaker permanently foamed in place
• 2 field-adjustable cam-lift hinges with locking set screw
• Frame panel includes:
• Replaceable perimeter heater wire
• Magnetic stainless steel trim
• Digital thermometer
• Vapor-proof LED light fixture
• Switch with exterior pilot indicator light
• Door section is pre-wired with concealed conduit inside of door frame panel
• Hinges and door handle are mounted to ¹/₂-in. synthetic insulated tapping plates
• Each door section complete with a fiberglass-reinforced, plastic, heated threshold
• Magnetic gasket

Product Features

*Free shipping on Norlake KLF77814-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor -10°F Freezer, 8' x 14' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, R449 Capsule Pak Refrigeration CPF200JC-S-4-EV (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLF77814-C Specifications

Documents

Spec Sheet

Warranty

Manual

Installation Guide

Brochure
