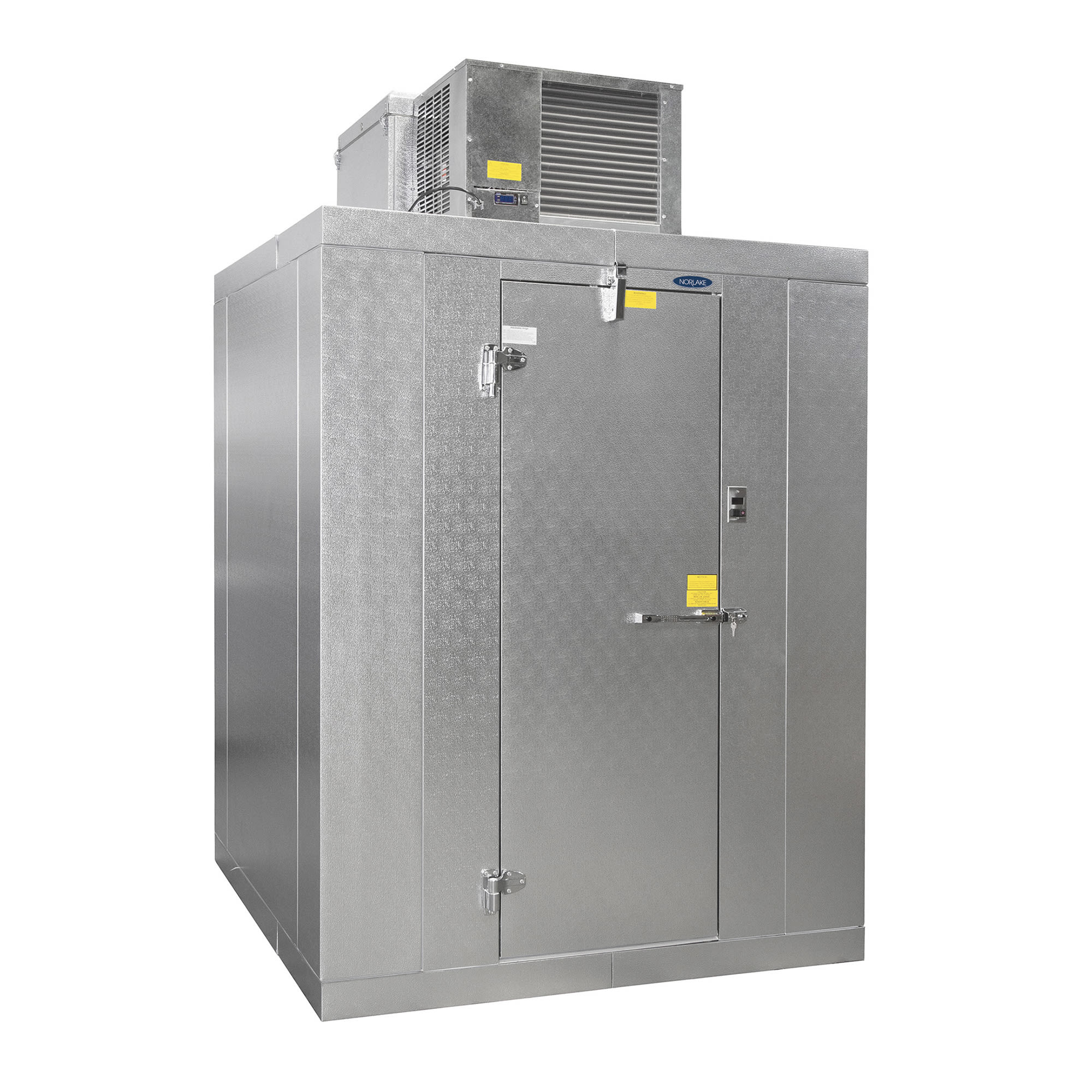

Norlake KLF7768-C 6' x 8' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

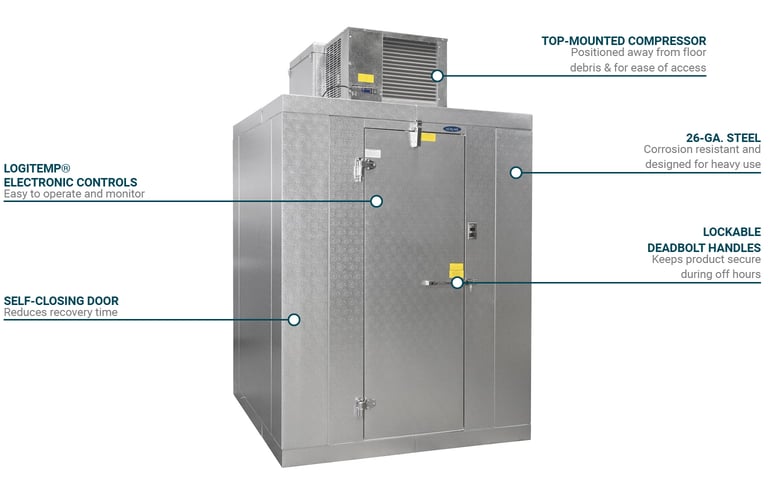

The Norlake KLF46-C Kold Locker™ walk-in freezer operates using an electronic LogiTemp® controller that provides access to various system settings. The unit is equipped with a digital thermometer and light switch for full user control. To prevent ice buildup, the automatic condensate evaporator reduces humidity, while the integrated heating wire keeps the door from sealing over. This unit uses R290 hydrocarbon refrigerant.

Designed for durability and longevity, the Norlake KLF46-C indoor walk-in freezer is constructed of 26-gauge steel. For ideal insulation, foamed-in-place polyurethane sits between the metal paneling. The floor is made of aluminum for durability and corrosion resistance. The solid door is self-closing to reduce the recovery time needed to reach the desired temperature. Note that this unit is designed for indoor use only.

Product Details

• Kold Locker series
• Indoor use
• 26-ga. coated steel construction
• Aluminum flooring
• Foamed-in-place, 4-in. polyurethane insulation
• Self-closing, left-hinged door
• Magnetic gasket
• Cam-lift hinges
• Deadbolt with lockable handle
• Perimeter door heater wire
• Electronic LogiTemp controller system
• 4-in. foamed polyurethane insulation
• Digital thermometer and light switch
• LED light above doorway
• Holding temperature: -10 degree F

Capsule Pak Refrigeration Unit

• Top-mounted compressor
• Flush-mounted evaporator coil
• Automatic condensate evaporator
• Air-cooled condensing unit
• R290 hydrocarbon refrigerant

Dimensions & Utilities

• 4 ft W x 6 ft. D x 6 ft. 7 in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLF7768-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor -10°F Freezer, 6' x 8' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing left hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPF100PC-S-0, KL2 QUALIFIER (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLF7768-C Specifications

Documents

Spec Sheet

Warranty

Installation Guide
