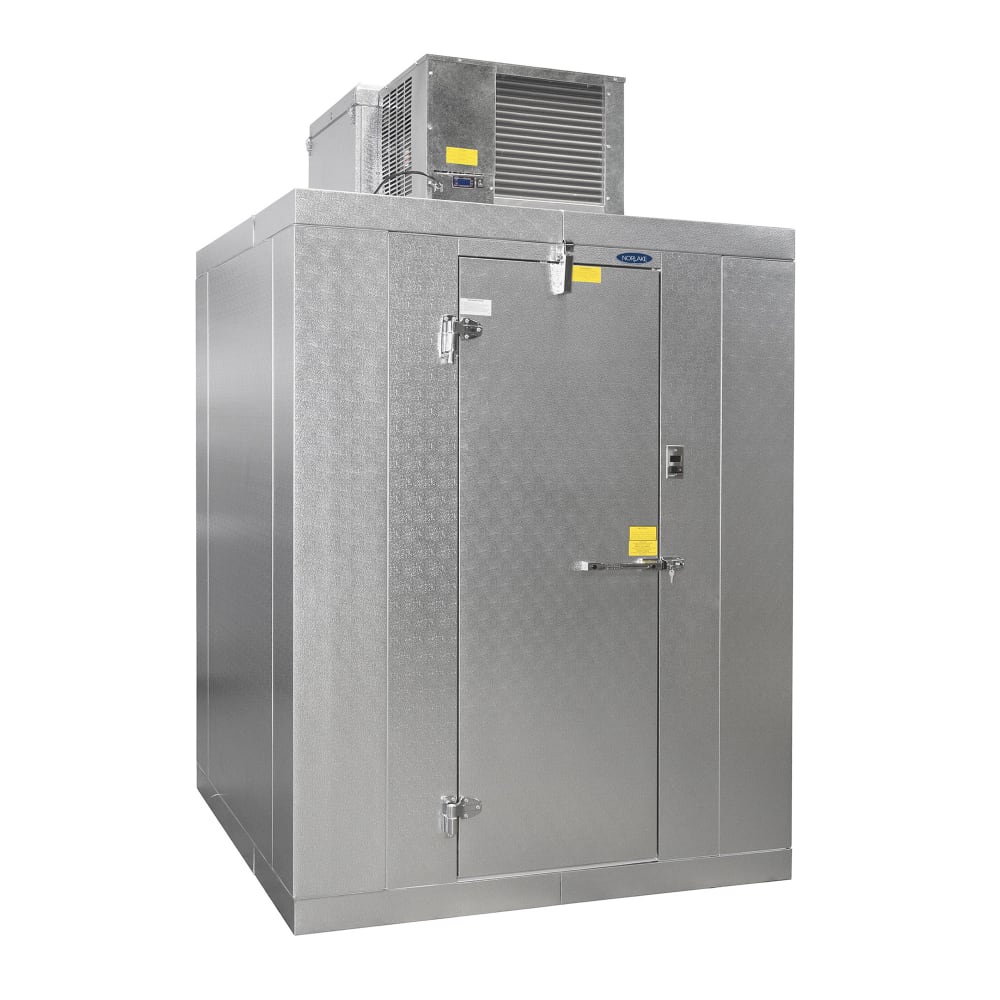

Norlake KLF610-C 6' x 10' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

The Norlake KLF610-C walk-in freezer is constructed of 26-gauge, corrosion-resistant steel for enhanced durability. Its stucco-embossed design adds strength while minimizing the appearance of everyday wear and tear. It features full, 4-inch-thick panels that are foamed in place with moisture-resistant polyurethane insulation. To withstand as much as 800 pounds per square foot, its floor has a smooth aluminum construction, and for simple installation, it doesn't require a drain line. This unit comes with a refrigeration system to freeze prepped products, bulk orders, and more.

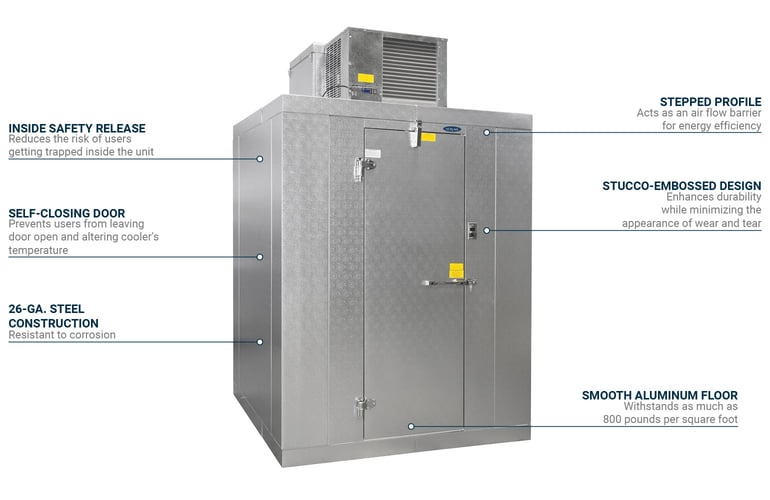

To prevent users from getting trapped inside the unit, the Norlake KLF610-C indoor walk-in freezer comes with an inside safety release. It's built with a NL9800 deadbolt locking handle with independent key and padlock for heightened security, and for energy efficiency, it has a self-closing door and stepped profile design—this serves as an airflow barrier. Overall, this unit measures 6 feet wide by 10 feet deep by 6 feet 7 inches high.

Product Details

• Part of the Kold Locker™ collection
• For indoor use
• 295-cu.-ft. interior space
• Capsule Pak™ refrigeration system
• Holding temperature: -10 degrees F
• Top-mounted refrigeration placement on walk-in box
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors
• 26-ga. stucco-embossed steel interior and exterior construction resists corrosion
• Full, 4-in. panels foamed in place with polyurethane insulation for moisture resistance
• Optimal walk-in storage space because polyurethane foam enables thinner walls
• Interior floor has a smooth aluminum construction
• Floor withstands a maximum of 800 lbs. per sq. ft.
• No drain line required for indoor models
• Overall dimensions: 6 ft. W x 10 ft. D x 6 ft. 7 in. H

Door Details

• NL 9800 deadbolt locking handle with independent key/padlock
• Inside safety release
• NL 2400 adjustable spring-loaded door hinge attached on the right
• Stepped profile design works as barrier to airflow for energy efficiency
• Flush-mounted, self-closing door
• Heavy-duty, molded ABS breaker permanently foamed in place
• 2 field adjustable cam-lift hinges with locking set screw
• Frame panel includes:
• Replaceable perimeter heater wire
• Magnetic stainless steel trim
• Digital thermometer
• Vapor-proof LED light fixture
• Switch with exterior pilot indicator light
• Hinges and door handle mounted to ¹/₂-in. synthetic insulated tapping plates
• Door section is pre-wired with concealed conduit inside of door frame panel
• Each door section complete with a fiberglass-reinforced, plastic heated threshold
• Magnetic gasket

Product Features

*Free shipping on Norlake KLF610-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor -10°F Freezer, 6' x 10' x 6'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPF100PC-S-0 (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLF610-C Specifications

Documents

Spec Sheet

Warranty

Manual

Installation Guide

Brochure
