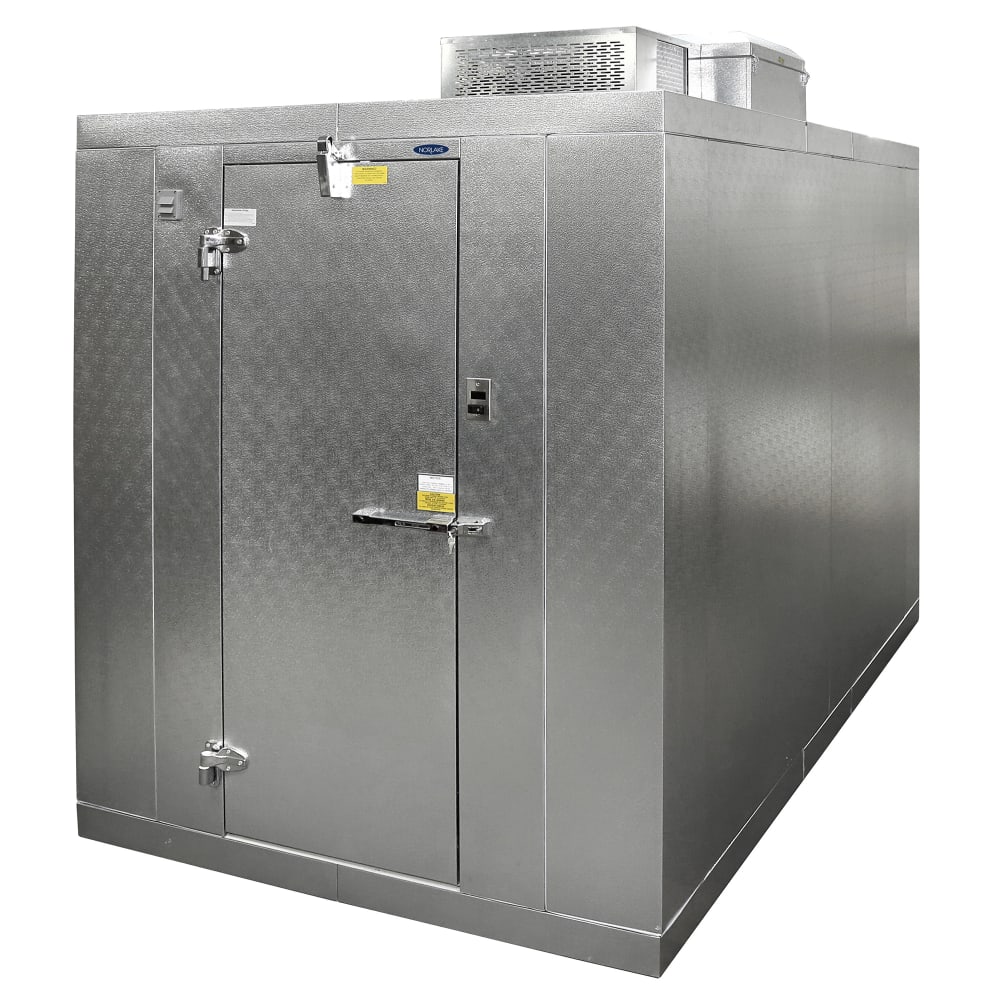

Norlake KLB7766-C 6' x 6' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

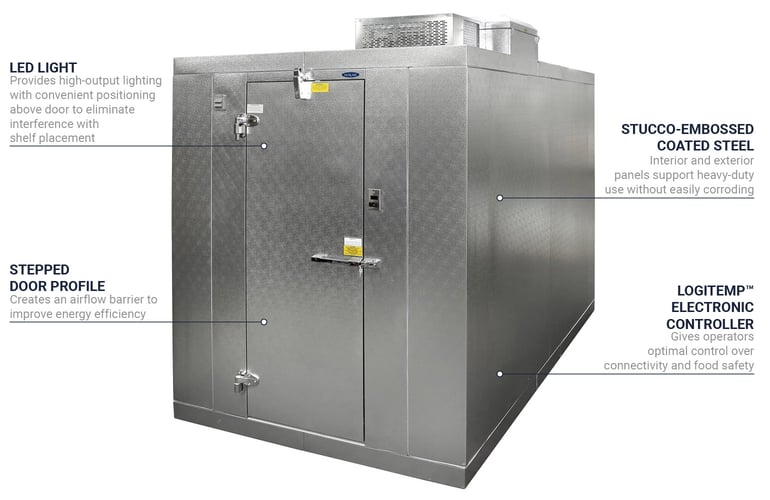

Compatible with businesses capable of sacrificing indoor space to create a proper food storage environment, the Norlake KLB7766-C walk-in cooler is a floorless unit measuring 6 feet wide by 6 feet deep by 7 feet 7 inches tall and boasts an interior volume of 196 cubic feet to accommodate bulk storage. The wall, floor, and ceiling panels interlock to create an airtight seal, and for proper alignment, they're built with male and female mating rails. Polyurethane insulation measuring 4 inches thick is foamed into each panel to create a sturdy structure and minimize energy consumption in warm settings. For a classic appearance that doesn't sacrifice durability, the interior and exterior panels are finished with corrosion-resistant, stucco-embossed coated steel. Its smooth aluminum flooring can accommodate 800 evenly distributed pounds per square foot.

So staff can quickly access the Norlake KLB7766-C indoor walk-in cooler's interior to load or remove inventory, its 26-inch-wide by 78-inch-tall door features field-adjustable cam-lift hinges that ensure smooth opening and closing. To minimize the chance of the door remaining cracked rather than closed, its spring-actuated door closer initiates a self-closing mechanism, while its magnetic gasket creates a secure seal. A vapor-proof LED light fixture mounted above the door brightens the interior using minimal energy, and operators can quickly determine if the light has been left on with the exterior pilot indicator light. To ensure products are stored in an appropriate environment, a digital thermometer provides an accurate interior temperature readout. If staff become locked inside the unit, the safety release mechanism grants a smooth exit. After business hours, users can lock the handle and the independent key and padlock to prevent unauthorized access.

Product Details

• Part of the Kold Locker™ collection and 77 series
• Interior capacity: 196 cu. ft.
• Indoor use
• Modular, interlocking wall, floor, and ceiling panels simplify assembly
• Cam locking fasteners create airtight seal
• Male and female mating rails for proper panel alignment
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• Each panel is insulated with 4-in.-thick foamed-in-place polyurethane insulation
• Insulation provides R-25 thermal resistance value
• Stucco-embossed, corrosion-resistant 26-ga. coated steel finish on interior and exterior panels
• Smooth aluminum flooring accommodates a uniformly distributed 800 lbs. per square foot
• 26-in.-wide x 78-in.-tall right-hinged, self-closing door with flush-mounted design
• 2 field-adjustable cam-lift hinges include locking set screw
• Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket
• Deadbolt locking handle with independent key/padlock
• Inside safety release
• Vapor-proof LED light fixture above door
• Light switch with exterior pilot indicator light
• Digital thermometer
• Replaceable perimeter heater wire

Capsule Pak™ Refrigeration System

• Ceiling mounted on cooler
• Holding temperature: 35 degrees F
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Foamed-in-place polyurethane insulation for evaporator enclosure
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 6 ft. D x 7 ft. 7 in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLB7766-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor +35°F Cooler, 6' x 6' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall, locking deadbolt handle, R290 Capsule Pak Refrigeration CPB050PC-S-0, KL2 QUALIFIER (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel

Norlake KLB7766-C Specifications

Documents

Spec Sheet

Warranty

Installation Guide

Brochure
