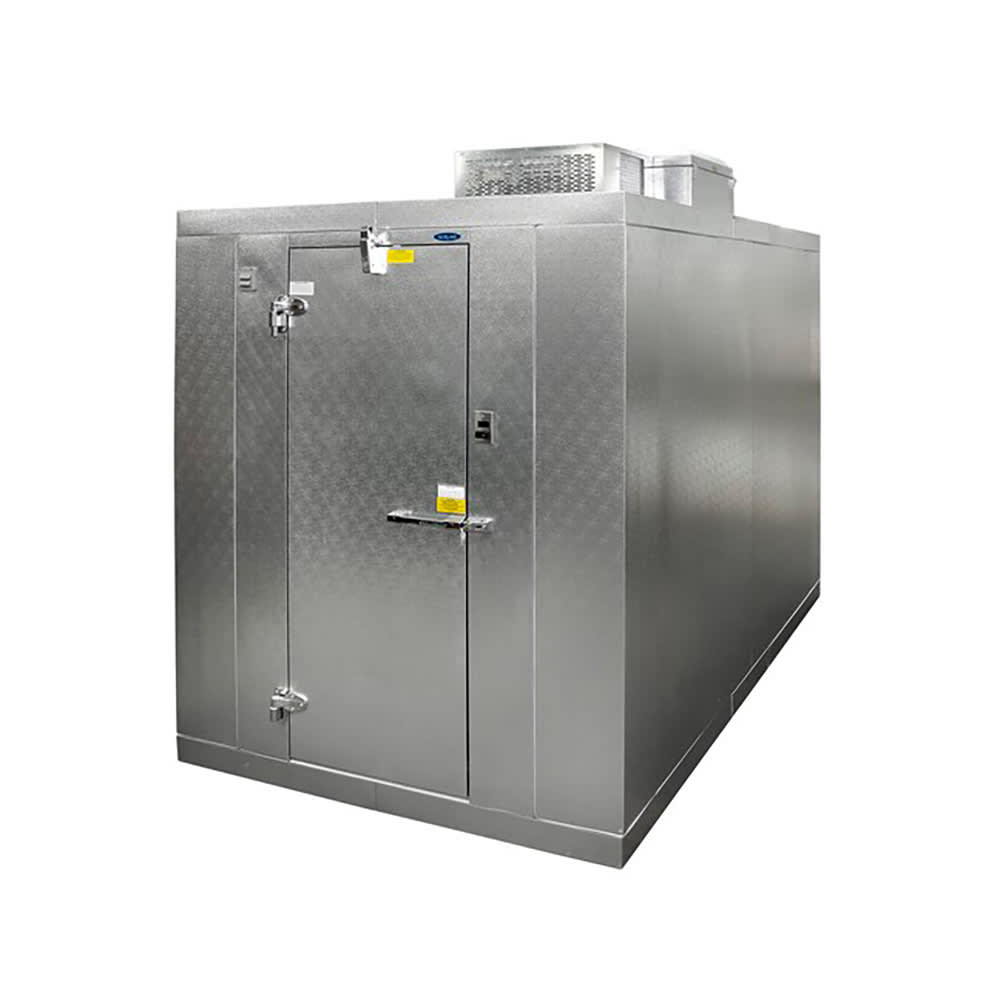

Norlake KLB77612-C 6' x 12' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

To simplify cleaning and survive everyday use in supermarkets and restaurants, the Norlake KLB77612-C Kold Locker™ indoor cooler's interior and exterior panels are finished with stucco-embossed, corrosion-resistant 26-gauge coated steel. Its smooth aluminum flooring supports as much as 800 pounds per square foot when uniformly distributed. Ideal for delis, supermarkets, chain restaurants, and more, it can be used to house bulk amounts of refrigerated products. This unit is built with foamed-in-place polyurethane insulation to preserve chill and improve efficiency.

With 418 cubic feet of interior space, the Norlake KLB77612-C walk-in cooler measures 6 feet wide by 12 feet deep by 7 feet 7 inches high overall. Its right-hinged, 26-inch-wide by 78-inch-high door is flush mounted for a cohesive, smooth presentation, and it self-closes to increase convenience and minimize chill loss. An inside safety release enables operators to open the door from the interior if they become locked inside the unit. To provide a clear readout of the cooler's current temperature, it's equipped with a digital thermometer. This unit features LED lighting to brighten its interior as well as an exterior pilot indicator light.

Product Details

• Part of the Kold Locker and 77 series
• 418-cu.-ft. interior space
• For indoor placement
• Smooth aluminum flooring can support an evenly distributed load of 800 lbs. per square foot
• Modular panels with male and female mating rails and foamed-in-place cam locking fasteners
• Digital thermometer

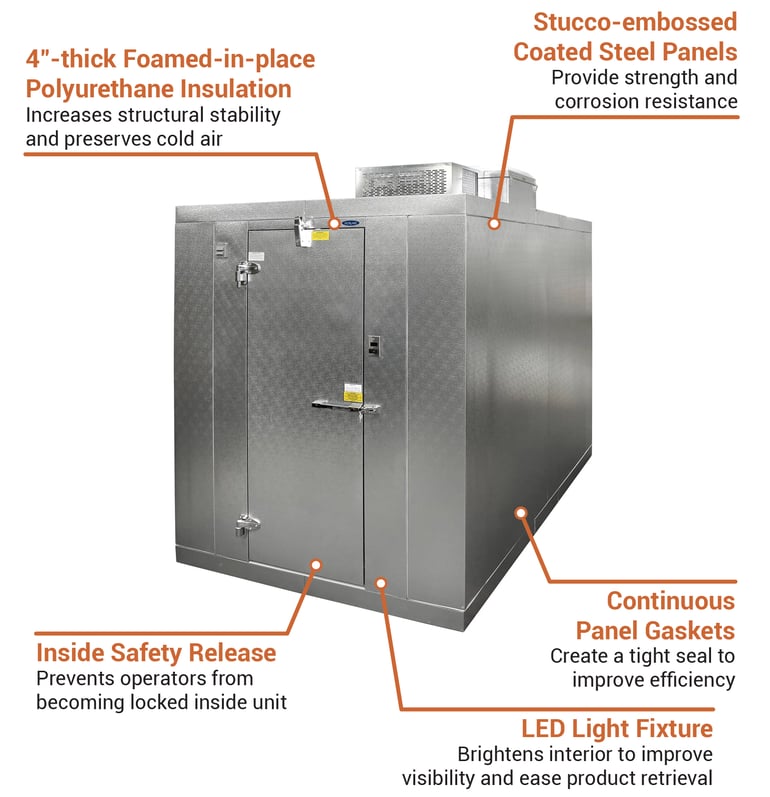

• 4-in.-thick foamed-in-place polyurethane insulation and foamed-in-place edge caps for end of floor and ceiling panels
• Continuous panel gaskets along outer perimeter
• Exterior and interior panels finished with corrosion-resistant, stucco-embossed 26-ga. coated steel
• 26-in.-wide x 78-in.-tall flush-mounted right-hinged door centered on short side of box
• Door is self-closing with inside safety release
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated door closer
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Vapor-proof LED light fixture and switch with exterior pilot indicator light
• Replaceable perimeter heater wire
• Requires assembly

Capsule Pak™ Refrigeration System Included

• Holding temperature: 35 degrees F
• Ceiling-mount placement on walk-in box
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 12 ft. D x 7 ft. 7 in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLB77612-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor +35°F Cooler, 6' x 12' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPB075PC-S-0 (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
