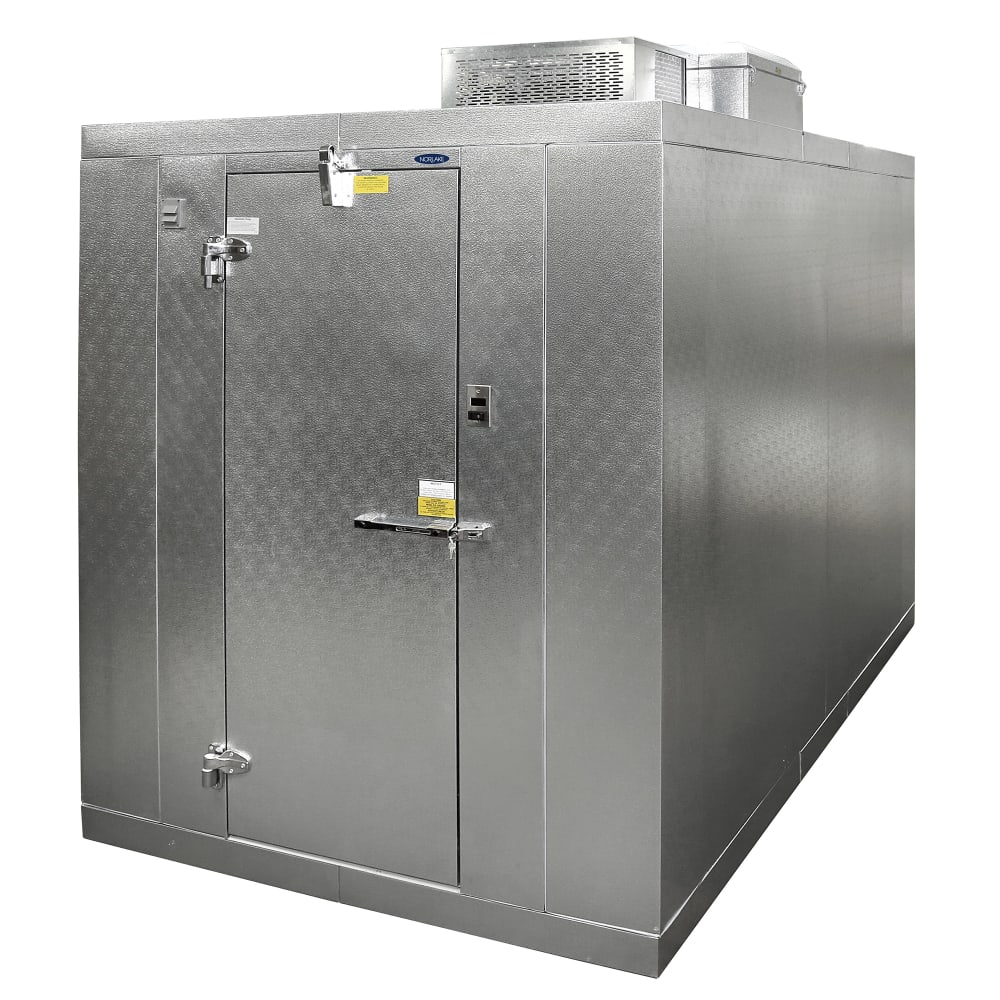

Norlake KLB7466-C 6' x 6' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor

Although the Norlake KLB7466-C Kold Locker™ indoor cooler requires assembly, its modular panels are built with male and female mating rails that ensure proper alignment in addition to cam locking fasteners that create an airtight seal. Each panel is built with 4-inch-thick foamed-in-place polyurethane that establishes a sturdy structure and provides an R-25 value to enhance energy efficiency. Instead of a floor, it comes with a vinyl floor sealer that can be placed atop existing tile or concrete. When fully assembled, this unit measures 6 feet wide by 6 feet deep by 7 feet 3⁵⁄₈ inches tall.

The Norlake KLB7466-C walk-in cooler's right-hinged door measures 26 inches wide by 78 inches tall, featuring a flush-mounted design for a sleek, seamless appearance. While its two cam-lift hinges can be adjusted to ensure smooth door movement, its spring-actuated door closer creates a self-closing mechanism. The magnetic gasket creates a tight seal when the door is closed to minimize the chance of temperature fluctuations. To keep the door secure after business hours, it's built with a deadbolt locking handle and independent key and padlock. If a staff member gets locked inside the unit, they can open the door with the inside safety release mechanism. A vapor-proof LED light fixture illuminates the box's interior, while its digital thermometer provides a clear readout of interior temperatures. This unit is designed to maintain 35 degrees Fahrenheit and operates with a Capsule Pak™ refrigeration system.

Product Details

• Part of the Kold Locker and 74 series
• Floorless indoor model
• Interlocking modular wall and ceiling panels
• Male and female mating rails enable secure alignment
• Cam locking fasteners for airtight seal
• 4-in.-thick foamed-in-place polyurethane insulation with R-25 value
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of ceiling panels
• Interior and exterior panels finished with 26-ga. stucco-embossed coated steel
• Includes vinyl sealers in place of flooring
• 26-in.-wide x 78-in.-tall right-hinged, self-closing door
• In-fitting, flush-mounted door design
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket
• Deadbolt locking handle featuring independent key/padlock feature
• Inside safety release

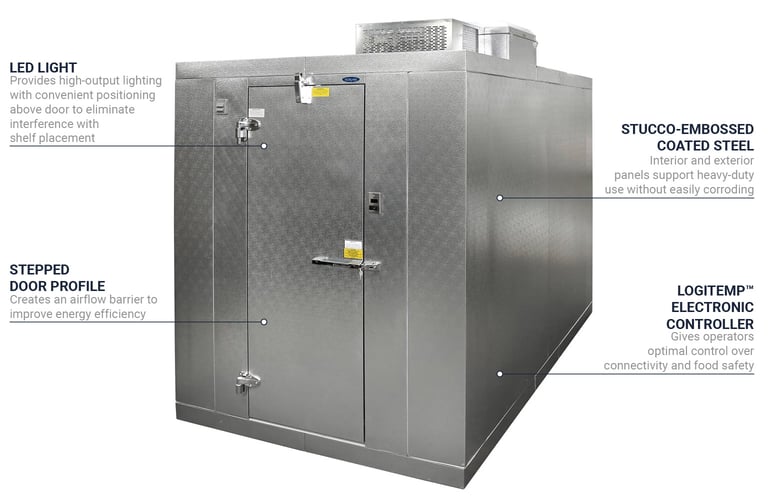

• Digital thermometer provides accurate readout of interior temperature
• Vapor-proof LED light fixture mounted above door
• Light switch with exterior pilot indicator light
• Replaceable perimeter heater wire

Capsule Pak Refrigeration System

• Holding temperature: 35 degrees F
• Ceiling-mount placement on walk-in box
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 6 ft. D x 7 ft. 3⁵⁄₈ in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLB7466-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor +35°F Cooler, 6' x 6' x 7'-4" H, floorless, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall, locking deadbolt handle, R290 Capsule Pak Refrigeration CPB050PC-S-0, KL2 QUALIFIER (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
