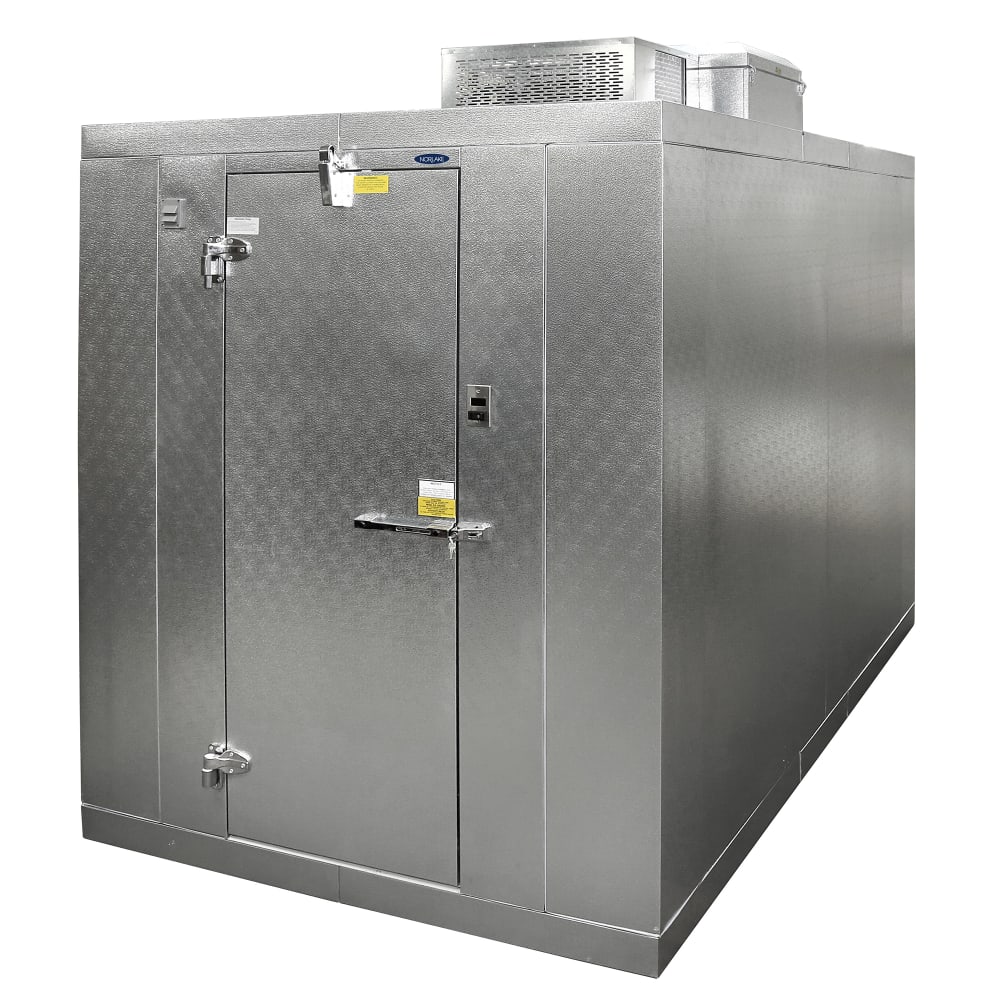

Norlake KLB74614-C 6' x 14' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor

Designed for indoor placement, the Norlake KLB74614-C Kold Locker™ cooler measures 6 feet wide by 14 feet deep by 7 feet 4 inches high. It's paired with a Capsule Pak™ refrigeration system, so it can hold bulk amounts of refrigerated essentials such as milk, eggs, cheese, condiments, and meat at an interior temperature of 35 degrees Fahrenheit. To ease cleaning and provide durability, its interior and exterior panels are finished with stucco-embossed, corrosion-resistant 26-gauge coated steel. Great for establishments with smooth tile or concrete flooring, this model is equipped with vinyl sealers in place of flooring.

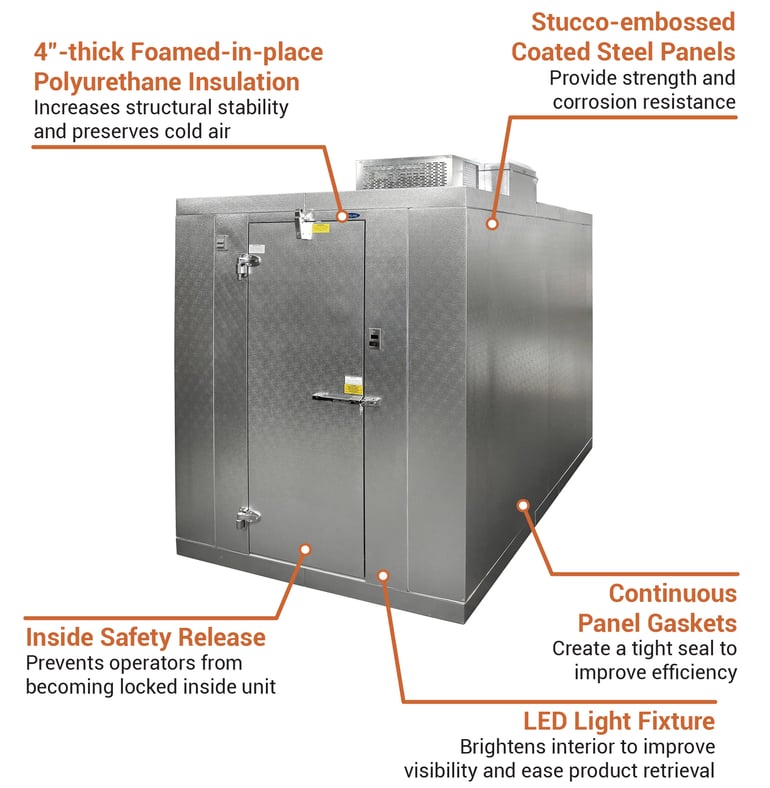

The Norlake KLB74614-C walk-in cooler box is insulated with 4-inch-thick foamed-in-place polyurethane to preserve chill and optimize efficiency; it also features continuous panel gaskets along the outer perimeter that create a tight seal. While its LED light fixture brightens the interior to improve visibility, its digital thermometer provides a clear readout of the current temperature. To minimize temperature fluctuations and deter pests, the door is self-closing. This unit's NL 9800 deadbolt locking handle features an independent key/padlock feature. To prevent employees from getting locked inside the unit, an inside safety release provides a simple way to exit the cooler.

Product Details

• Featured in the Kold Locker and 74 series
• For indoor installation
• Floorless unit with vinyl sealers
• Modular panels with male and female mating rails and foamed-in-place cam locking fasteners
• 4-in.-thick foamed-in-place polyurethane insulation preserves cold air
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• 2 field-adjustable cam-lift hinges with locking set screw
• Exterior and interior panels finished with corrosion-resistant, stucco-embossed 26-ga. coated steel
• 26-in.-wide x 78-in.-tall flush-mounted, right-hinged door is self-closing
• Door is centered on the short side of the unit
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Vapor-proof LED light fixture and switch with exterior pilot indicator light
• Replaceable perimeter heater wire
• Inside safety release
• Digital thermometer
• Requires assembly

Capsule Pak Refrigeration System

• Holding temperature: 35 degrees F
• Ceiling-mount placement on walk-in box
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 14 ft. D x 7 ft. 4 in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLB74614-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor +35°F Cooler, 6' x 14' x 7'-4" H, floorless, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPB075PC-S-0 (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
