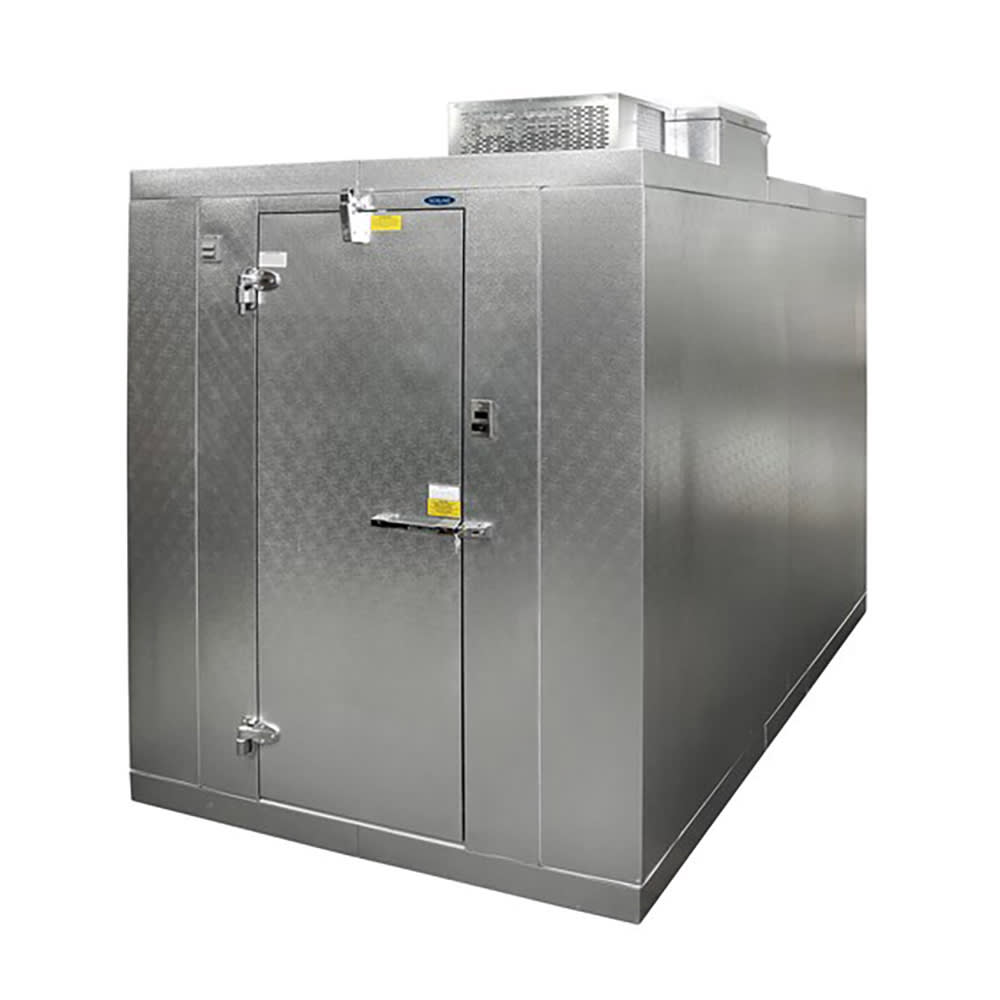

Norlake KLB610-C 6' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

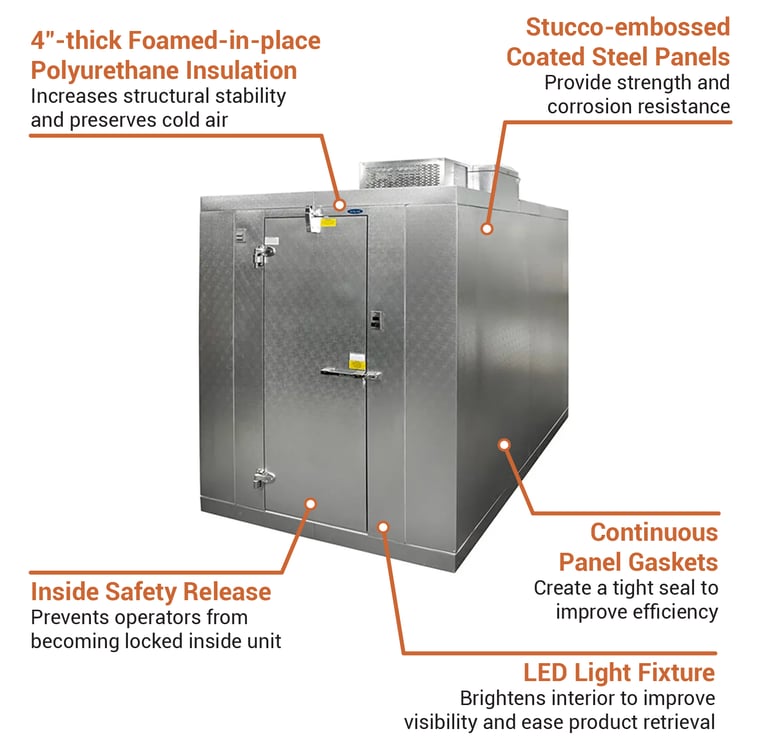

The Norlake KLB610-C Kold Locker™ cooler is designed for indoor installation to keep bulk amounts of ingredients on hand and chilled. To enhance structural stability and preserve cold air, it's built with 4-inch-thick foamed-in-place polyurethane insulation. Its door is self-closing to further preserve chill, and it's flush mounted to create a smooth, streamlined appearance. This unit is built with smooth aluminum flooring capable of supporting an evenly distributed load of 800 pounds per square foot. To prevent operators from being locked inside the cooler, it's equipped with an inside safety release.

With 295 cubic feet of interior space, the Norlake KLB610-C walk-in cooler measures 6 feet wide by 10 feet deep by 6 feet 7 inches high overall. While its digital thermometer provides a clear readout of its current temperature, its interior LED lighting enhances visibility to simplify product retrieval. To create a tight seal and improve efficiency, it features continuous panel gaskets along the outer perimeter. This unit's interior and exterior panels are finished with stucco-embossed 26-gauge coated steel to resist corrosion, ease cleaning and offer durability throughout everyday use

Product Details

• Part of the Kold Locker and Standard series
• 295-cu.-ft. interior space
• For indoor placement
• Smooth aluminum flooring can support an evenly distributed load of 800 lbs. per square foot
• Modular panels with male and female mating rails and foamed-in-place cam locking fasteners
• 4-in.-thick foamed-in-place polyurethane insulation
• Continuous panel gaskets along outer perimeter
• Foamed-in-place edge caps for end of floor and ceiling panels
• Interior and exterior panels finished with corrosion-resistant, stucco-embossed 26-ga. coated steel
• 26-in.-wide x 66-in.-tall flush-mounted, right-hinged door
• 2 field-adjustable cam-lift hinges with locking set screw
• Spring-actuated, self-closing door centered on the short side of the unit
• NL 9800 deadbolt locking handle with independent key/padlock feature
• Inside safety release
• Digital thermometer
• Vapor-proof LED light fixture and switch with exterior pilot indicator light
• Replaceable perimeter heater wire
• Assembly required

Capsule Pak™ Refrigeration System

• Holding temperature: 35 degrees F
• Ceiling-mount placement on walk-in box
• Pre-charged condensing unit
• Factory-assembled evaporator coil
• Flush evaporator coil keeps refrigeration components outside the walk-in box
• Evaporator enclosure with foamed-in-place polyurethane insulation
• High-efficiency evaporator fan motors

Dimensions & Utilities

• 6 ft. W x 10 ft. D x 6 ft. 7 in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Norlake KLB610-C within the 48 contiguous states.

From The Manufacturer

Kold Locker™, Indoor +35°F Cooler, 6' x 10' x 6'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPB075PC-S-0 (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )

*Image may not depict product color, inclusions or accessories.

18-month Limited Parts & Labor; 15-year Panel
