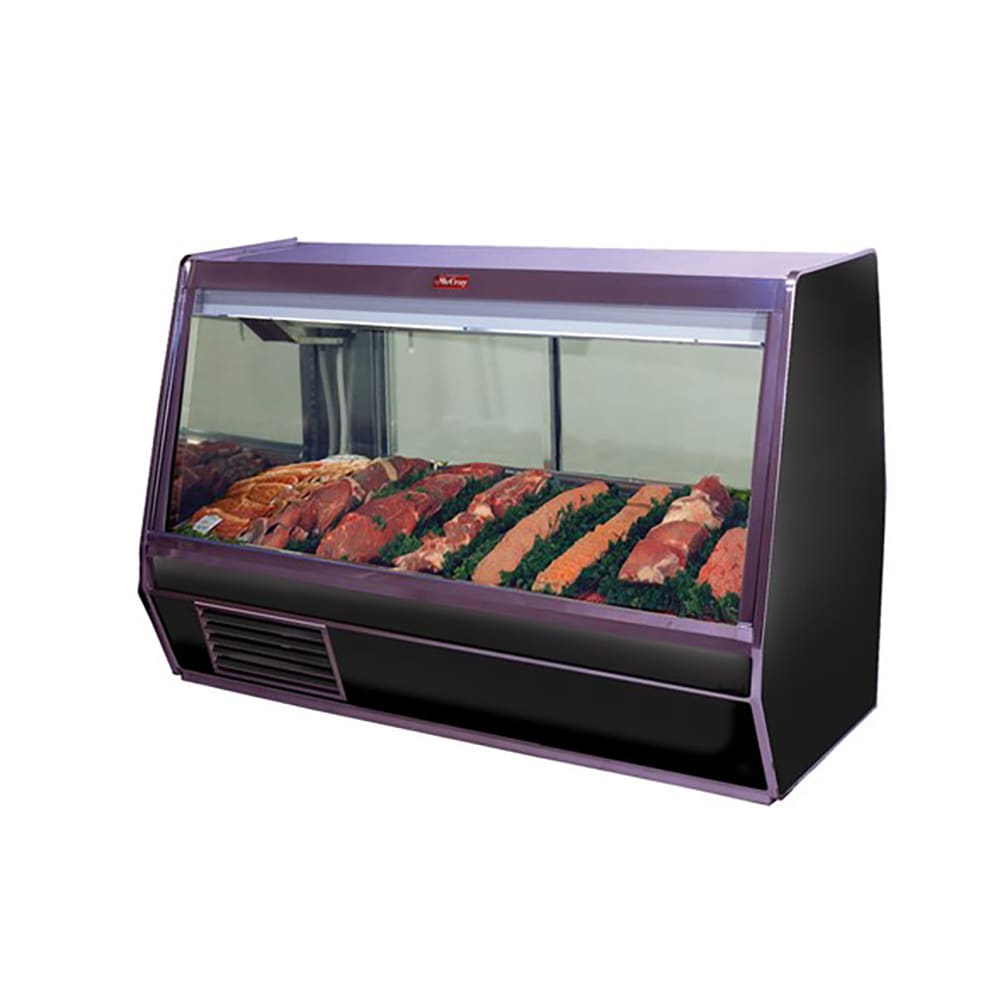

Howard-McCray SC-CMS32E-8-BE-LED 98" Full Service Red Meat Case w/ Straight Glass - (1) Level, 115v

With a single-duty, endless design, the Howard-McCray SC-CMS32E-8-BE-LED full-service meat case can be installed as a standalone unit or be installed as part of a continuous line of units. This merchandiser has a black exterior that can fit in with most equipment setups. The white interior makes it easy for staff to clean, and the insulated straight front glass works with the interior LED lights to provide a clear view of shelf items. The interior is equipped with for main deck shelves and two rows of two mezzanine shelves; the interior is accessed through the rear doors.

The Howard-McCray SC-CMS32E-8-BE-LED full-service meat case has a self-contained refrigeration system that permits efficient installation. This unit relies on R513A refrigerant to maintain a set operating temperature between 34 and 36 degrees Fahrenheit. To ensure long-lasting performance and prevent ice buildup, this unit is equipped with a 24-hour air defrost system. If installed as a standalone unit with end panels, this item measures 98 inches long by 30¹/₂ inches deep by 49⁵/₈ inches high.

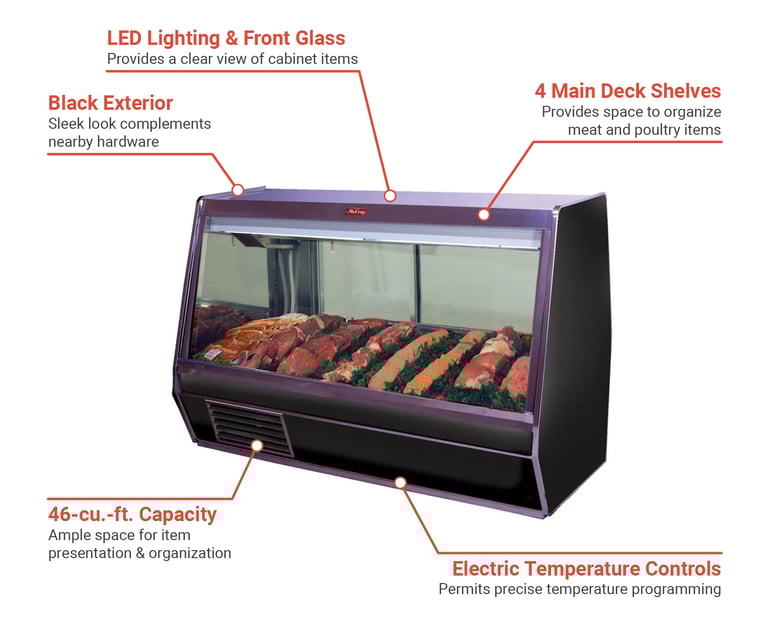

Product Details

• 46-cu.-ft. interior capacity
• 1 level
• Single-duty, endless design
• Full-service red meat case
• Steel top
• Black exterior
• White interior
• Insulated straight front glass
• Rear removable doors
• 4 main deck shelves
• 2 rows of 2 mezzanine shelves
• Electric temperature controls
• 2 rows of LED interior lighting at top of unit

Refrigeration System

• Self-contained design
• Full-length gravity coil system
• Extra full-length humidity coil at the main deck
• Temperature holding range: 34-36 degrees F
• R513A refrigerant
• 24-hour air defrost system

Dimensions & Utilities

• Door size: 20¹³/₁₆ in. L x 23¹/₂ in. H
• Front glass: 46¹¹/₁₆ in. L x 28 in. H
• Main deck: 23⁵/₈ in. L x 25 in. H
• Mezzanine shelf: 47 in. L x 12 in. W
• Overall: 98 in. L x 30¹/₂ in. D x 49⁵/₈ in. H
• 16 A, ¹/₂ HP
• 115 V/60 Hz/1 ph, cord with a 5-20P plug

Product Features

*Free shipping on Howard-McCray SC-CMS32E-8-BE-LED within the 48 contiguous states.

From The Manufacturer

One level only; additional shelf optional

Red Meat Service Case, 98"W single duty, endless design, self-contained refrigeration, full length gravity coil system, extra full length humidity coil at the main deck, stainless steel top, black exterior & white interior, LED lighting, 1/3 HP, 115v/60/1-ph, 16.0 amps, cULus, UL EPH Classified, UL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor
