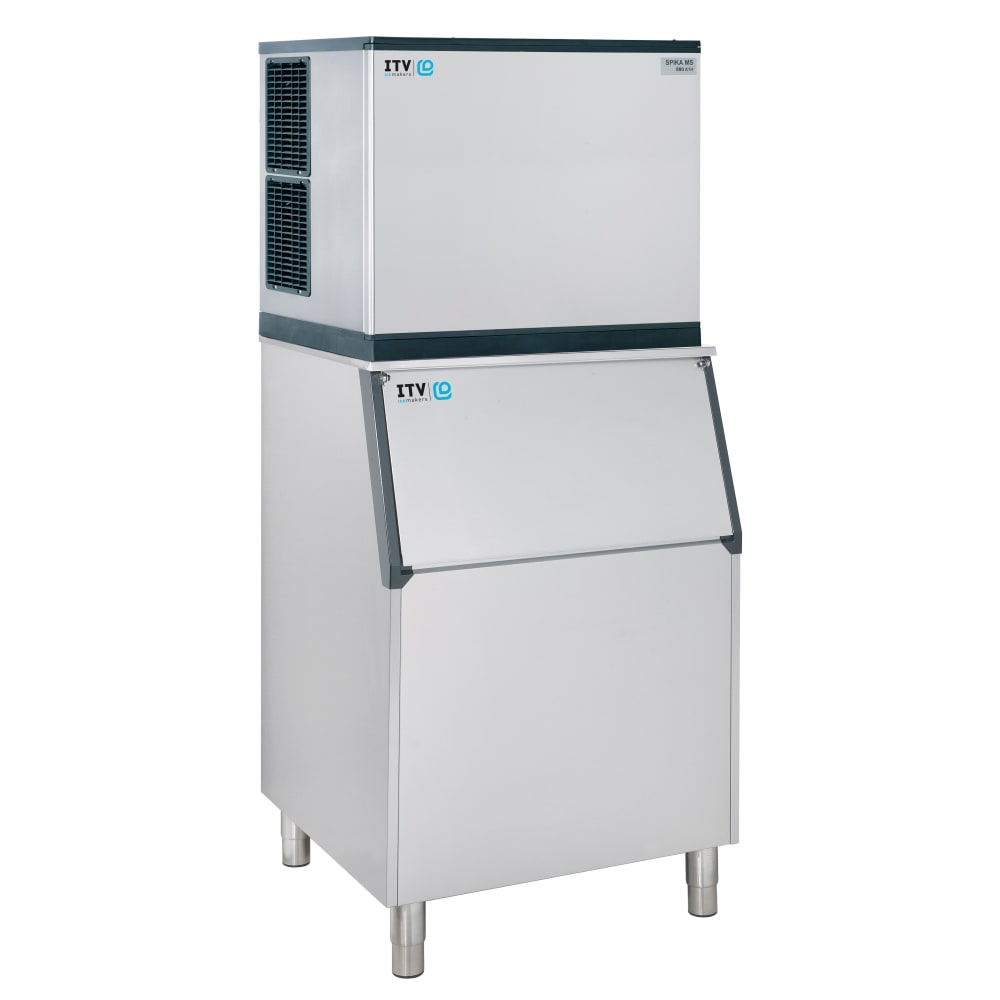

ITV Ice Makers SPIKA MS 1000/S-500 970 lb Spika Full/Half Cube Ice Machine w/ Bin - 507 lb Storage, Air Cooled, 208-230v

The ITV Ice Makers SPIKA MS 1000/S-500 ice machine produces 970 pounds of half- or full-size ice cubes every day using its vertical plate evaporator and R404A refrigerant. For energy efficiency, this unit operates with an air-cooled design and has front ventilation. To ensure optimal operating conditions, this ice machine is equipped with a smart electronic control board. Designed with a 304 stainless steel external frame, the unit’s panels are easily removable for maintenance. This ice machine measures 30 inches wide by 24²/₅ inches deep by 29⁹/₁₀ inches high, while the ice bin measures 30 inches wide by 32¹/₄ inches deep by 48¹/₂ inches high.

The ITV Ice Makers SPIKA MS 1000/S-500 ice bin features a 304 stainless steel body and door with metal door closures for a tight seal. The bin’s polyethylene liner and rounded corners facilitate cleaning, while its polyurethane foamed insulation ensures temperature retention. With a storage capacity of 507 pounds, the bin’s drainage system collects and directs melted ice to the drain, keeping the interior dry. This bin is mounted on four adjustable legs for stabilization on uneven surfaces.

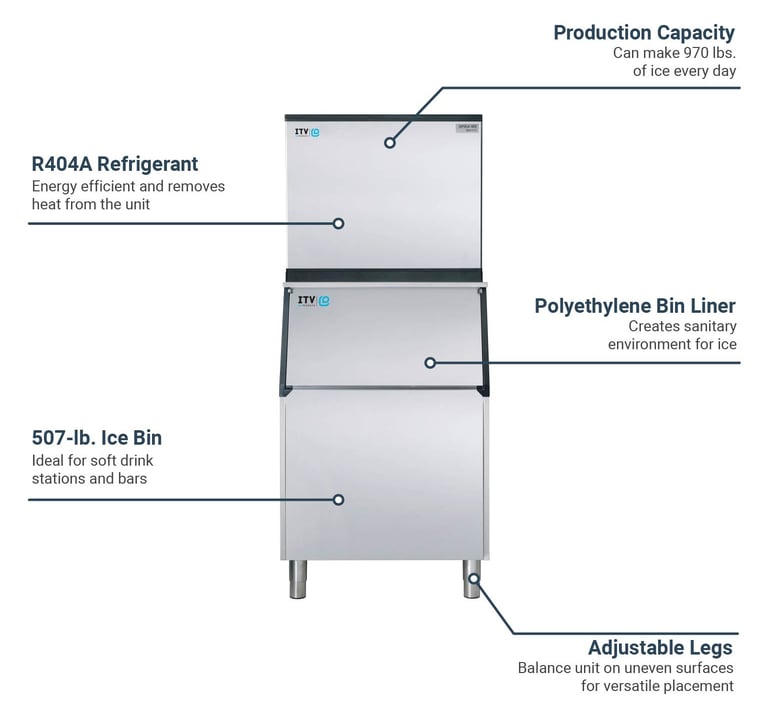

Ice Machine

• SPIKA series
• 970-lb. production capacity per day
• Produces half- or full-size ice cubes
• 304 stainless steel external frame
• Removable panels
• Air cooled
• Front ventilation
• R404A refrigerant
• Vertical plate evaporator
• Smart water distributor
• Smart electronic control board

Ice Bin

• 507-lb. storage capacity
• 304 stainless steel body and door
• Metal door closures for tight seal
• High-density polyurethane foam insulation
• Sanitary polyethylene liner
• Rounded corners
• 1 ice scoop
• Drainage system
• 4 adjustable stainless steel legs

Dimensions & Utilities

• Ice machine: 30 in. W x 24²/₅ in. D x 29⁹/₁₀ in. H
• Ice bin: 30 in. W x 32¹/₄ in. D x 48¹/₂ in. H (with legs)
• 208-230 V/60 Hz/1 ph (hardwire)

Product Features

*Free shipping on ITV Ice Makers SPIKA MS 1000/S-500 within the 48 contiguous states.

From The Manufacturer

SPIKA Ice Maker, modular, half or full Classic American ice cube-style, 30" W, 970 lb. production/24 hr, 30" wide, dual switch, 304 stainless steel construction, vertical plate evaporator, cETLus, NSF

Ice Storage Bin, 30" W, 510 lbs. storage capacity, slope front bin, 304 stainless steel construction front & side, galvanized back & bottom, 6" adjustable legs (not included on dimensions), NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts

ITV Ice Makers SPIKA MS 1000/S-500 Specifications

Documents

Spec Sheet
