IKON IMG-36 36" Gas Griddle w/ Manual Controls - 3/4" Steel Plate, Natural Gas
$1,045.50 /Each
Call us for pricing
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
IKON IMG-36 Description

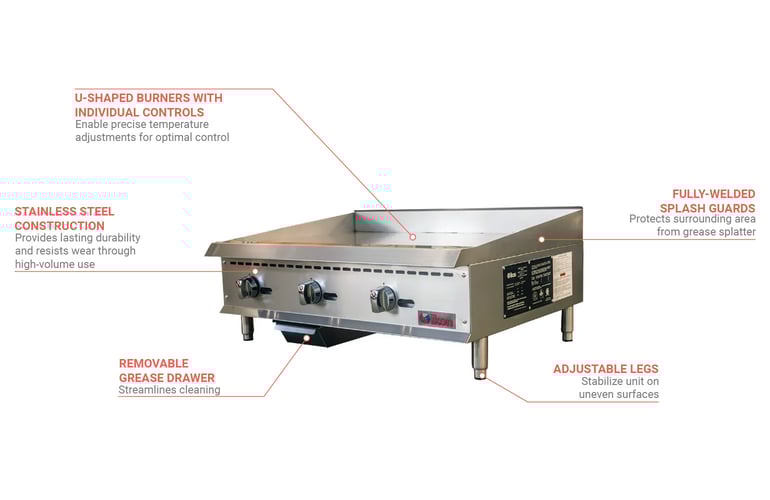

The IKON IMG-36 countertop griddle's cabinet is constructed of durable, wear-resistant stainless steel featuring double-walled insulated sides that keep heat on the cooking surface. To shield surrounding surfaces from grease, it's designed with fully welded back and side splash guards, and to reduce the risk of burns, it features a cool-to-the-touch stainless steel front edge. For simplified cleaning and maintenance, the unit is fully serviceable through the front and includes a 3⁄4-inch removable grease drawer with a weep hole and baffle, enabling operators to determine when the trap needs to be cleaned. To stabilize the unit on countertops, this 36-inch wide by 342/5-inch-deep by 151⁄2-inch-high griddle is mounted on adjustable stainless steel legs, which are capped with nonskid feet that void leaving marks on surfaces.
For simplified operation and precise temperature adjustments, the IKON IMG-36 natural gas griddle features manual gas controls and a front-lit pilot light. It has three gas control knobs to accommodate multiple items with varying temperature requirements and has three integrated U-shaped burners. Each burner operates at 30,000 BTU for a total of 90,000 BTU. Great for burgers, vegetables, and hibachi, this unit has a 36-inch-wide by 201/2-inch-deep by 3⁄4-inch-thick polished steel griddle plate. The back ventilation flue facilitates proper air circulation, and to convert the unit from natural gas to liquid propane, it comes with a field conversion kit.
Product Details
- Stainless steel base
- Double-walled insulated sides
- Cool-to-the-touch front stainless steel edge
- Fully welded back and side splash guards
- Countertop model
- 3⁄4-in.-thick polished steel griddle plate
- One manual gas control knob per burner
- 3 U-shape burners
- Front-facing pilot light
- Adjustable stainless steel legs
- Nonskid feet
- Removable 31⁄4-in. grease drawer with "weep hole" and baffle
- Back-facing ventilation flue
- 30,000 BTU per burner
Dimensions and Utilities
- Overall: 36 in. W x 342/5 in. D x 151⁄2 in. H
- Cooking area: 36 in. W x 201/2 in. D
- Powered by natural gas
- Includes conversion kit for use with LP
- 3⁄4-in. diameter NPT gas connection
- 90,000 BTU
Product Features
*Free shipping on IKON IMG-36 within the 48 contiguous states.
From The Manufacturer
Griddle, gas, countertop, 36" W x 34.4" D, adjustable manual control, front lit pilot light, (3) 30,000 BTU U-shape burners, 3/4" polished steel griddle plate, (3) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 90,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
*Image may not depict product color, inclusions or accessories.
IKON IMG-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | IKON |
| Application | Medium Duty |
| BTU / Burner | 30,000 |
| Control Spacing (in) | 12 |
| Controls | Manual |
| Cooking Area Depth (in) | 20.5 |
| Cooking Area Width (in) | 36 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 36 |
| Plate Material | Steel |
| Plate Thickness (in) | 3/4 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Series | IMG Series |
| Warranty | 1-year Parts & Labor |
| Width (in) | 36 |
| Weight | 284.00 |
