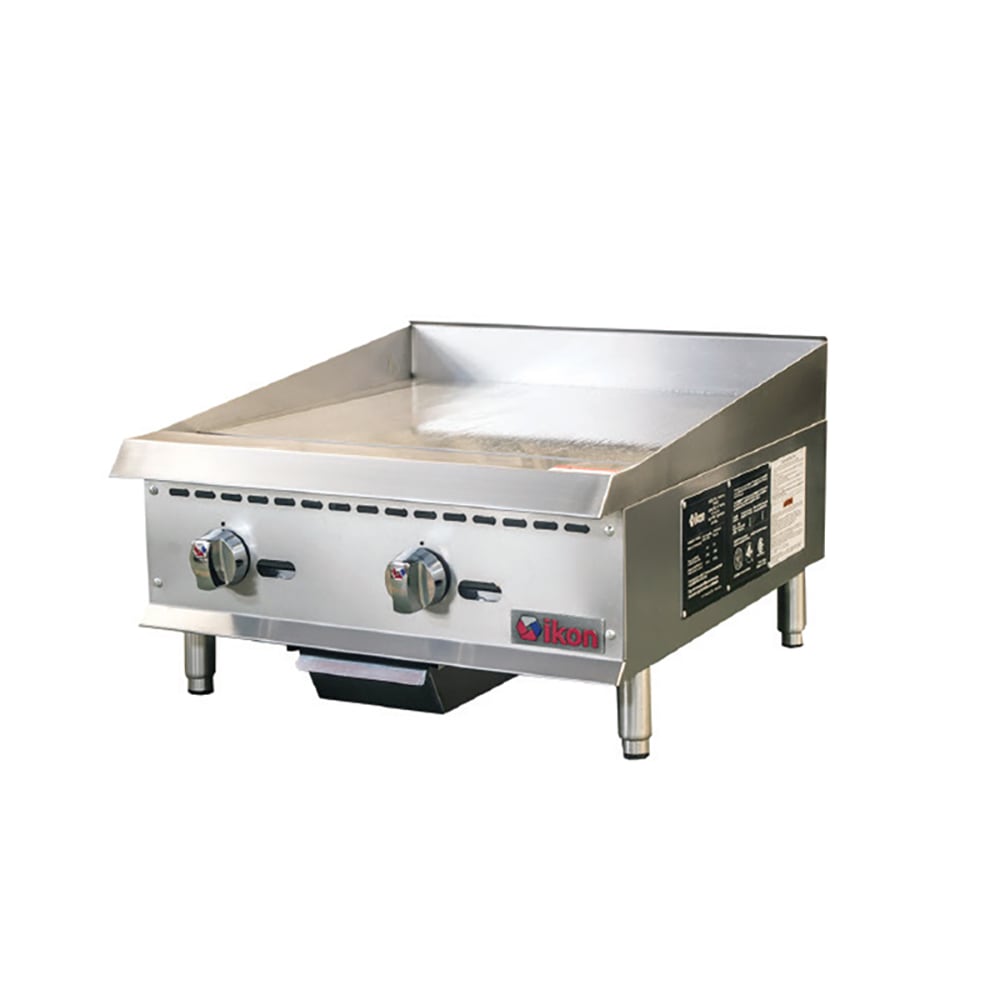

IKON IMG-24 24" Gas Griddle w/ Manual Controls - 3/4" Steel Plate, Natural Gas
$794.38 /Each
Call us for pricing
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
IKON IMG-24 Description
For lasting durability in busy kitchens, the IKON IMG-24 countertop griddle features a stainless steel body with double-walled insulated sides. To shield the surrounding area from grease splatter, this unit has back and side splash guards that are fully welded to the 3⁄4-inch-thick polished steel griddle plate. This unit also features a cool-to-the-touch stainless steel front edge to minimize burn risks. Because its 3⁄4-inch removable grease drawer is constructed with a weep hole and baffle, operators can quickly determine when the trap needs to be emptied and cleaned. This griddle measures 24 inches wide by 342/5 inches deep by 151⁄2 inches high and is mounted on adjustable stainless steel legs for stabilization. To protect countertops from marking, these legs are capped with nonskid feet.
To make precise temperature changes, the IKON IMG-24 griddle features two adjustable manual gas control knobs. Its front-lit pilot light is simple to access for maintenance, and for proper air circulation, the back of the cabinet features a ventilation flue. With its two U-shaped burners, this unit provides thorough, even heat to its 24-inch-wide by 201/2-inch-deep cooking surface; each burner outputs 30,000 BTU for a total of 60,000 BTU. While this griddle is powered by natural gas, it comes equipped with a conversion kit for use with liquid propane.
Product Details
- Stainless steel construction
- Double-walled insulated sides
- Cool-to-the-touch front stainless steel edge
- Fully welded back and side splash guards
- Countertop configuration
- 3⁄4-in.-thick polished steel griddle plate
- 2 manual gas controls
- Front-lit pilot light
- 2 U-shape burners
- Ventilation flue
- Adjustable stainless steel legs featuring nonskid feet
- Removable 31⁄4-in. grease drawer with "weep hole" and baffle
- 30,000 BTU per burner
Dimensions and Utilities
- Cooking area: 24 in. W x 201/2 in. D
- Overall: 24 in. W x 342/5 in. D x 151⁄2 in. H
- Powered by natural gas
- Conversion kit included
- 3⁄4-in. diameter NPT gas connection
- 60,000 BTU
Product Features
*Free shipping on IKON IMG-24 within the 48 contiguous states.
From The Manufacturer
Griddle, gas, countertop, 24" W x 34.4" D, adjustable manual control, front lit pilot light, (2) 30,000 BTU U-shape burners, 3/4" polished steel griddle plate, (2) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 60,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
*Image may not depict product color, inclusions or accessories.
IKON IMG-24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | IKON |
| Application | Medium Duty |
| BTU / Burner | 30,000 |
| Control Spacing (in) | 12 |
| Controls | Manual |
| Cooking Area Depth (in) | 20.5 |
| Cooking Area Width (in) | 24 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 24 |
| Plate Material | Steel |
| Plate Thickness (in) | 3/4 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Series | IMG Series |
| Warranty | 1-year Parts & Labor |
| Width (in) | 24 |
| Weight | 196.00 |
