Southbend S36D-3G 36" Gas Range w/ Full Griddle & Standard Oven, Liquid Propane
$6,821.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend S36D-3G Description
The Southbend S36D-3G S-Series gas range has a griddle and one standard oven that is equipped with a heavy-duty, U-shaped burner. Operators can monitor the temperature with a snap-action thermostat, which has an adjustable range of 175 to 550 degrees Fahrenheit. For corrosion resistance, the oven's interior is enameled, and to retain heat, it is insulated with block-type rock wool. This oven can accommodate various product heights because of its removable rack and two-position rack guides.
Constructed of stainless steel, the Southbend S36D-3G gas range has a sturdy front, sides, shelf, and front rail that withstand heavy use. Its 4-inch front rail has welded end caps, while the metal control knobs are striped to ensure the proper temperature setting. The burners are made of painted cast iron, and underneath the burners, crumbs are caught in a one-piece drawer, which is removable for cleaning. For effective heat distribution, its 1⁄2-inch-thick griddle plate is constructed of steel and has four burners.
Product Details
- Part of the S-Series
- Stainless steel front, sides, and shelf are durable

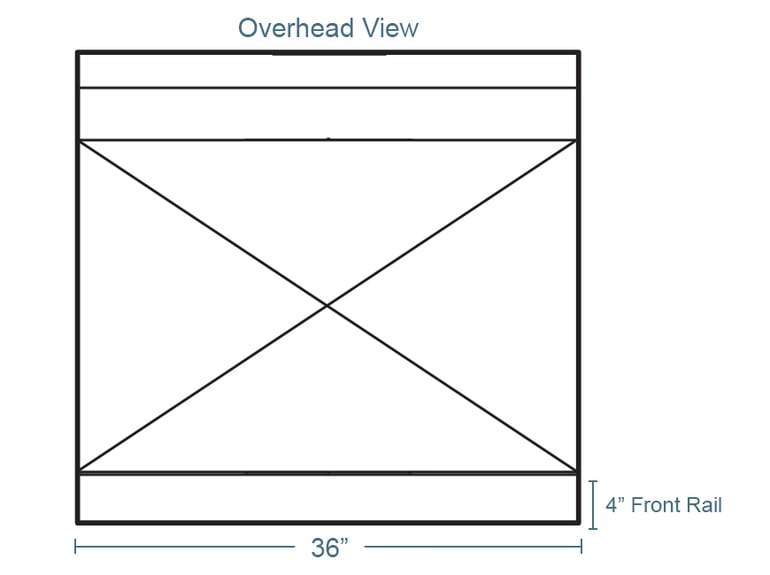

- 4-in. front rail is made of stainless steel with welded end caps
- Painted cast iron burners will not clog
- Removable, individual grate tops are constructed of cast iron
- 1-piece drawer under burners is removable
- 1⁄2-in. steel griddle plate with 4 burners
- Metal knobs with red stripe for precise setting
- 6-in. legs are made of stainless steel for durability
- Pressure regulator and hinged, lower valve panel
- 99,000 BTU
Product Features
Standard Oven Details
- Heavy-duty, U-shaped burner
- Snap-action thermostat
- Temperature holding range: 175-550 degrees F
- Enameled interior resists corrosion
- Flame failure safety device prevents accidents
- Insulated with heavy, block-type rock wool
- 1 removable rack with 2-position rack guides
- Quadrant spring door with chrome handle that is heat resistant
Dimensions & Utilities
- Oven interior: 26 in. W x 26.5 in. D x 14 in. H

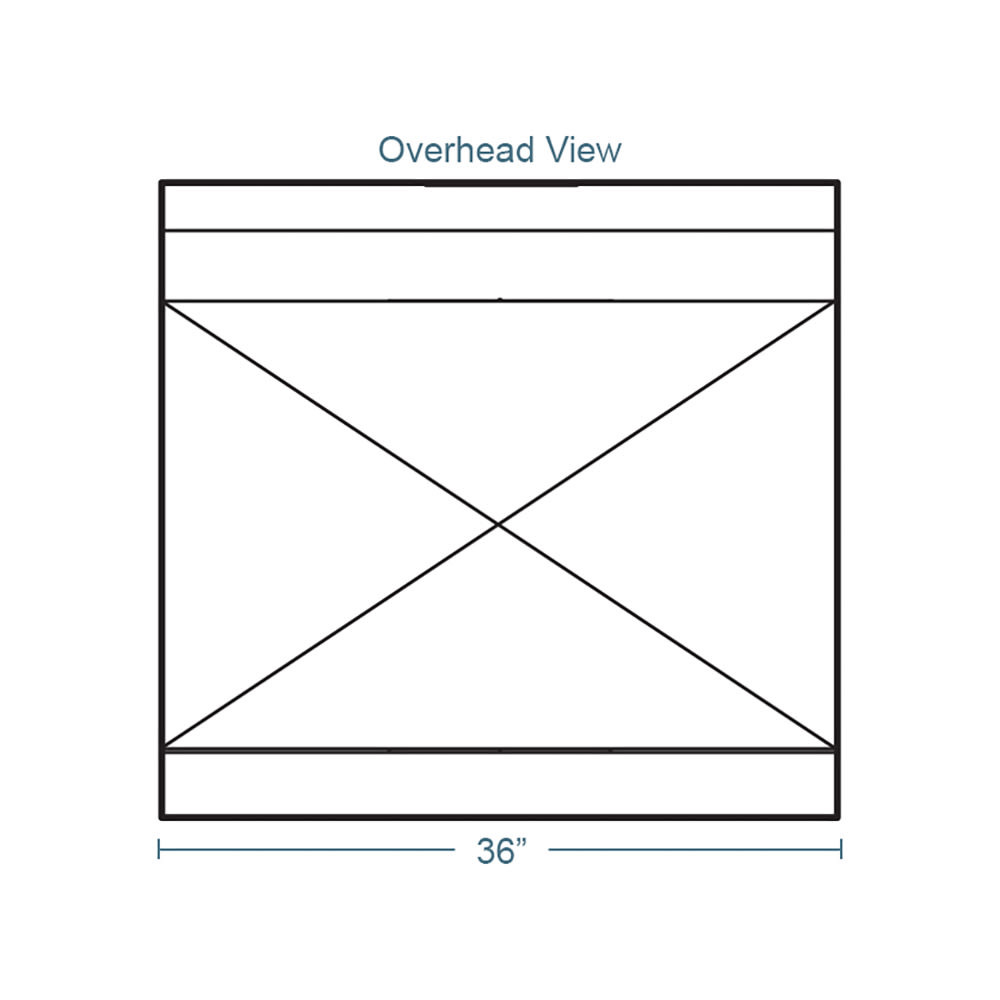

- Overall: 36.5 in. W x 34 in. D x 59.5 in. H
- Uses LP gas
*Free shipping on Southbend S36D-3G within the 48 contiguous states.
From The Manufacturer
S-Series Restaurant Range, LP gas, 36", griddle, manual controls, (1) standard oven, snap action thermostat, hinged lower valve panel, includes (1) rack, stainless steel front, sides, shelf, 4" front rail, 6" adjustable legs, 99,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Southbend S36D-3G Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 24000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Griddle Location | Full |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | None |
| Number of Ovens | Single |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Griddle |
| Rating | Better |
| Series | S-Series |
| Standard Oven BTU/hr | 35000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 99000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 660.00 |
