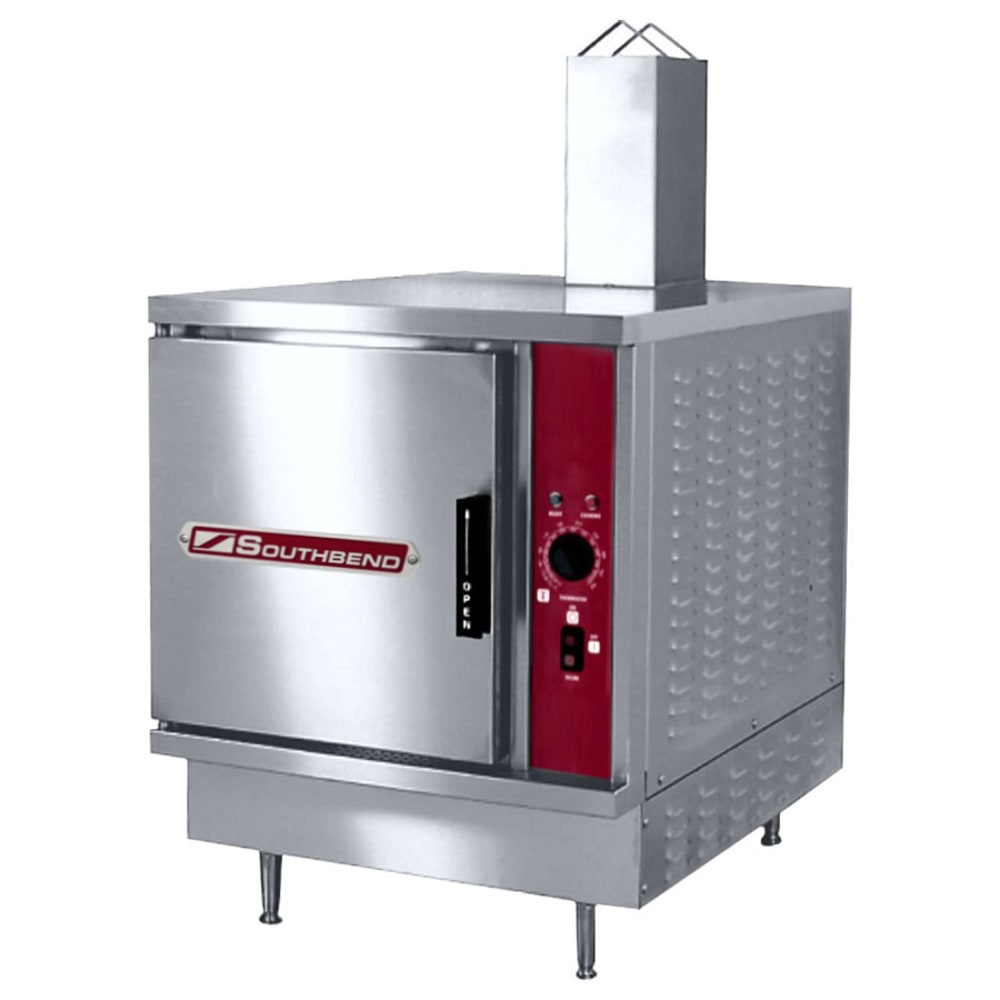

Southbend RG24-5 Gas Countertop Steamer w/ (5) Full Size Pan Capacity, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 348-RG245NG • MPN: RG24-5 NG
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $10,981.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Southbend RG24-5 Description


The Southbend 348-RG245NG countertop steamer is heated by natural gas with a gas-fired stainless steel steam generator. The exterior is made from 304 stainless steel, and the interior is made from 316 stainless steel. The cooking chamber has coved corners that are easy to clean than square corners. The heavy-duty, stainless steel door has a stainless steel inner liner with a full perimeter gasket that keeps the heat inside the chamber. The outer liner is made of one-piece, all-welded stainless steel. The spring-release door has a positive lock and seal mechanism that makes opening and closing the door simple. A stainless steel drip trough connected to the drain collects condensate when the door is opened.

A fully accessible and removable panel comes with the stainless steel control housing where the controls to operate the steamer are. There is an illuminated, three-mode power switch that lets you choose on, off, or de-lime. Knowing where the food is in the cooking process is easy with the cooking and ready indicator lights. At the end of the cooking cycle, a 60-minute electric timer with an audible alarm goes off. The Southbend 348-RG245NG countertop steamer also comes with solid-state generator controls and electronic ignition.

Product Details

  • Natural gas heated
  • Gas-fired stainless steel steam generator
  • Made for low- to medium-volume cooking
  • Food does not burn or dry out
  • Minimal food shrinkage
  • Food is brighter in color, making it more appetizing
  • Dishes do not transfer flavor to each other when cooked in a steamer
  • Electric ignition
  • Steam flow to the cooking chamber is cut off when the door is opened and resumes once the door is closed
  • De-liming port on the right side panel
  • Split water connections for connecting to a water treatment system
  • 4-in. adjustable legs made of stainless steel
  • 120 V/50-60 Hz/1 ph, 12.3 kW, 42,000 BTU heat input
  • Overall Dimensions: 24 in. W x 32 in. D x 39.56 in. H (H does not include 4-in. legs)
  • CSA Listed; NSF Certified

Heavy-Duty Construction

  • 304 stainless steel exterior is made for heavy-duty use
  • 316 stainless steel interior is corrosion resistant
  • Cooking chamber has coved corners for easy cleaning
  • Heavy-duty, stainless steel door has full perimeter gasket to keep heat inside
  • Stainless steel inner and outer liner on the door
  • Spring-release door with a positive lock and seal mechanism
  • Stainless steel drip trough is connected to the drain to collect condensate from the door when it is opened
  • Stainless steel pan supports

Control Housing

  • Stainless steel control housing with a removable panel that is fully accessible
  • Illuminated, three-way power switch with on, off, and de-lime options
  • 60-min. electric timer with audible alarm at the end of the cooking cycle
  • Cooking and ready indicator lights
  • Solid-state generator controls

Pan Capacity

  • Holds 10 1-in.-deep pans
  • Holds 5 pans 212 in. deep
  • Holds 3 pans 4 in. deep
  • Holds 2 pans 6 in. deep

Convection Steamer, NG gas, countertop, steam generator, electronic ignition, (1) compartment, (5) 12" x 20" pan capacity, electromechanical controls, three way power switch (ON/OFF/Delime), split water connections, automatic fill & drain operation, automatic generator blow down valve, stainless steel interior, exterior & 4" adjustable legs, 42,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Southbend RG24-5 Specifications

PDF Spec Sheet
Manufacturer Southbend
Application High Volume
Controls Manual
Heat Gas
Steam Generator Boiler-Based
Width (in) 24
Depth (in) 32.5
Height (in) 25
Pan Capacity 5
Warranty 1 year limited parts & labor
BTU 42,000
Gas Type NG
Specialty Options Descaling Port
Hertz 60
Voltage 120
Phase 1
Weight 250.00
Southbend RG24-5 Certifications
  • NSF
