Southbend PCHE75S/S-V Platinum Ventless Single Half Size Convection Oven - 7.5kW, 240v/3ph
$8,354.00 /Each
Web price, call us!
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCHE75S/S-V Description

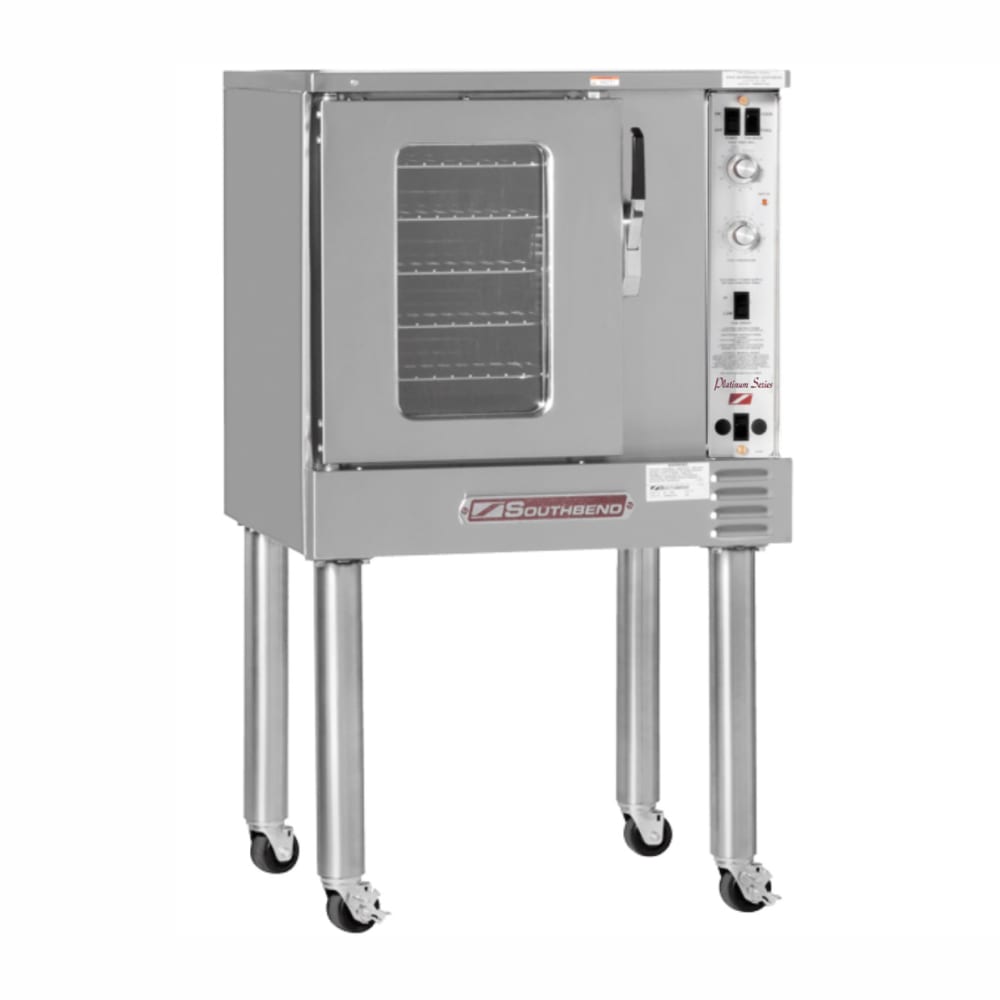

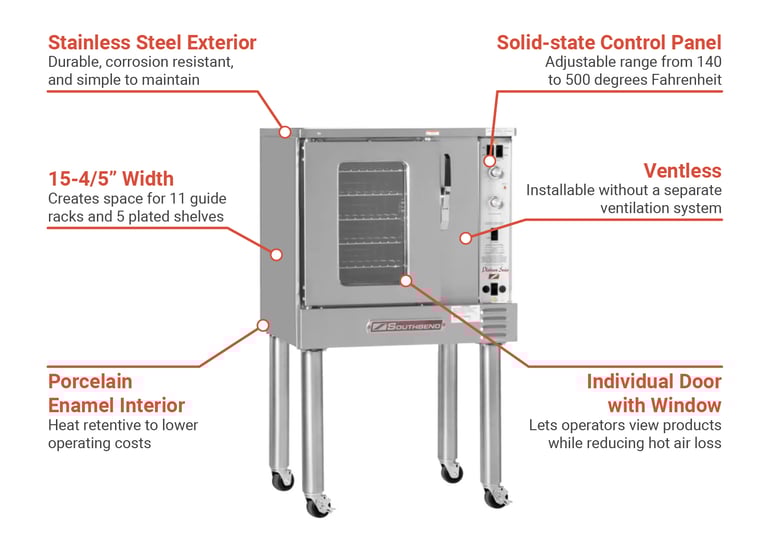

The Southbend PCHE75S/S-V ventless single half-size convection oven is 33 inches tall, and it features a single door with a viewing glass that allows product to be monitored as it cooks. Because the exterior is made of stainless steel, it’s durable, strong, and simple to clean. The porcelain enamel interior is great at retaining heat. The aluminized steel back provides an additional degree of strength. Inside the cavity are five plated racks that can be adjusted across the 11-position rack guide.
At the side of the Southbend PCHE75S/S-V half-size convection oven is a simple-to-use standard control panel that operates the temperature and timer settings. Users can adjust the time between 140 and 500 degrees Fahrenheit, while the timer can be set as high as 60 minutes. When maintenance is required, this control panel slides out; it operates the two-speed blower fan.
Product Details
- Platinum series
- High-efficiency elements
- Ventless
- Stainless steel exterior
- Porcelain enamel interior with coved corners
- Aluminized steel back
- Coved corners and fastener-free design
- Single door with viewing window
- Opens 180 degrees for stocking
- 11-position rack guide with 5 racks
Standard Controls
- Side mounted
- Solid-state thermostat
- Temperature range: 140-500 degrees F
- Slide-in, slide-out configuration
- “Heat” light
- Operates blower fan
- Manually resettable high-temperature limit
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 264/5 in. D x 33 in. H
- 7.5 kW, 1/2 HP
- 240 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCHE75S/S-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Standard Controls, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/S-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
