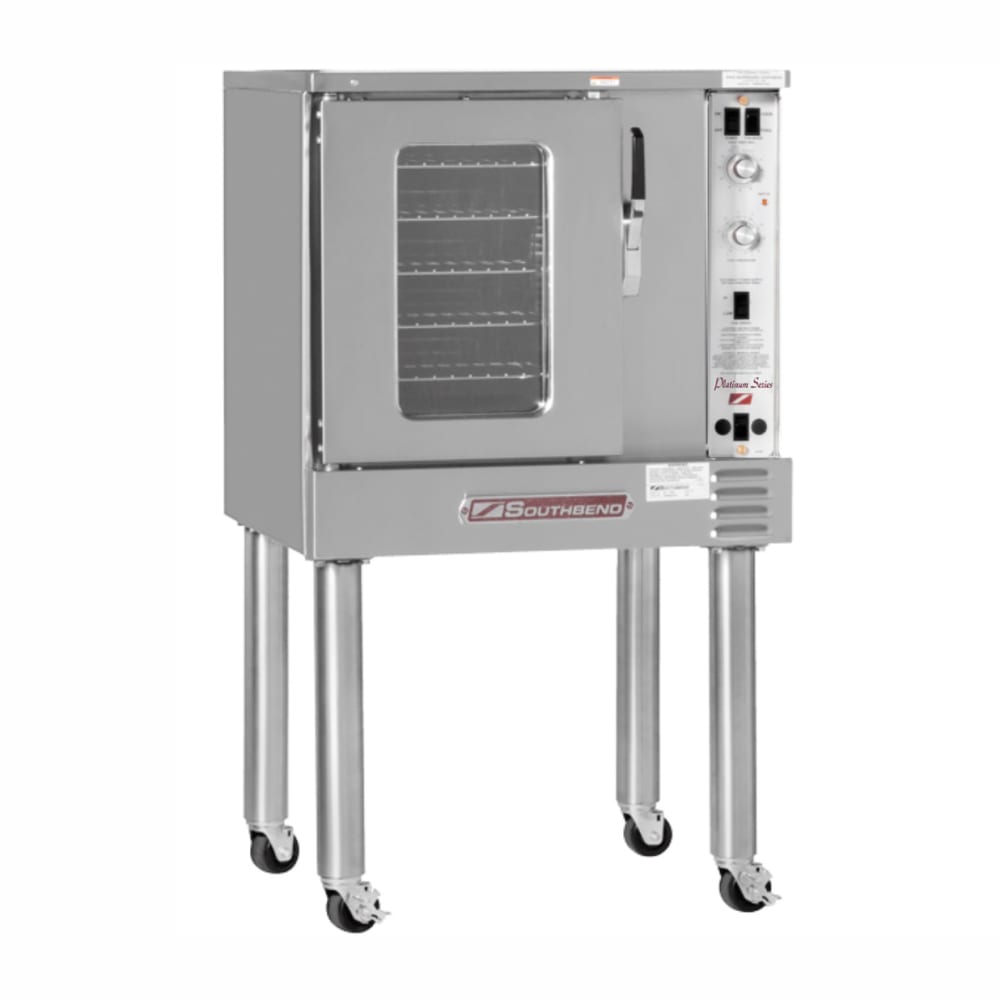

Southbend PCHE75S/S-V Platinum Ventless Single Half Size Convection Oven - 7.5kW, 208v/3ph
$8,354.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCHE75S/S-V Description
The Southbend PCHE75S/S-V is part of the Platinum series—an oven that utilizes high-efficiency elements to thoroughly cook a variety of products. Because the cavity is finished in durable porcelain enamel, it’s heat retentive and resistant to high temperatures. The exterior top, sides, and front are made of stainless steel, so this unit is resistant to dents, scratches, and other aesthetic damages. It features an individual door with a seeing window so users can monitor product as it cooks.
This Southbend PCHE75S/S-V half-size convection oven has a side-mounted control panel placed away from the heating elements for safe use. This features standard solid-state controls meant for adjusting temperature between 140 and 500 degrees; it can also be used to set the timer as high as 60 minutes. When service is required, this control panel simply slides out.

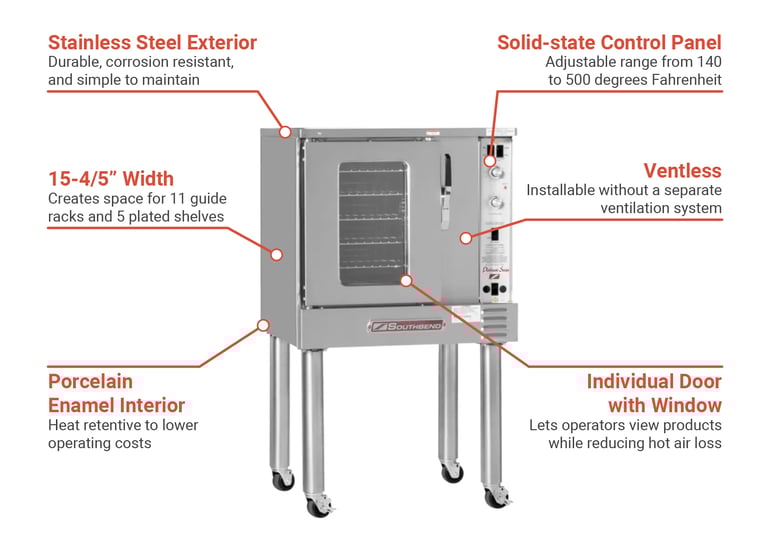

Product Details
- Platinum series
- Heating elements
- Ventless
- Standard-depth convection oven
- Top, sides, and front made of stainless steel
- Interior made of porcelain enamel
- Individual door
- Viewing window
- 11-position rack guide with 5 plated oven racks
Standard Control Panel
- Solid-state thermostat
- Temperature range: 140-500 degrees F
- 60-minute cook timer
- Plug-in, plug-out control panel
- Side mounted away from heating elements
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 264/5 in. D x 33 in. H
- 7.5 kW, 1/2 HP
- 208 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCHE75S/S-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Standard Controls, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/S-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Depth (in) | 29.65 |
| Heat | Electric |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Height (in) | 33 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Rating | Spec |
| Size | Half Size |
| Series | Platinum |
| Special Features | Ventless |
| Product Type | Cooking Equipment |
| Product | Convection Ovens |
| Voltage | 208 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
