Southbend PCHE75S/S-V Platinum Ventless Single Half Size Convection Oven - 7.5kW, 208v/1ph
$8,354.00 /Each
Web price, call us!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCHE75S/S-V Description

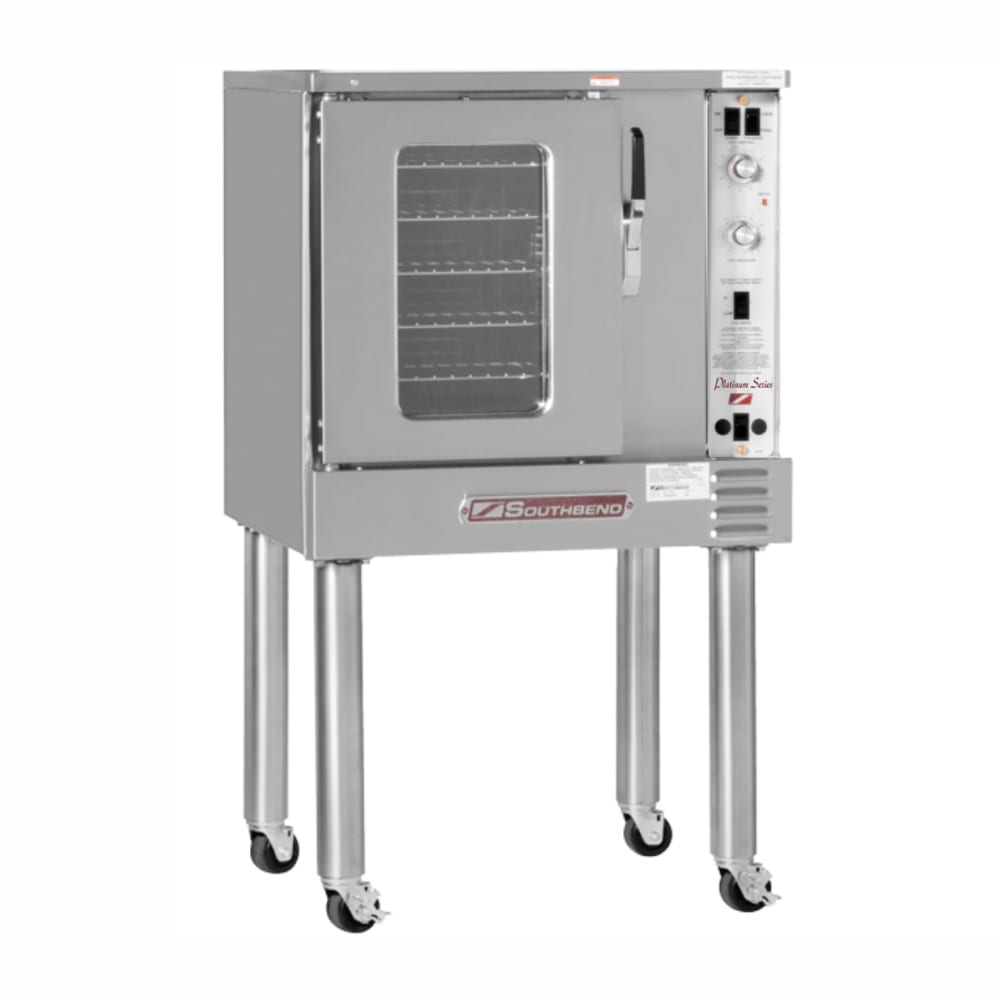

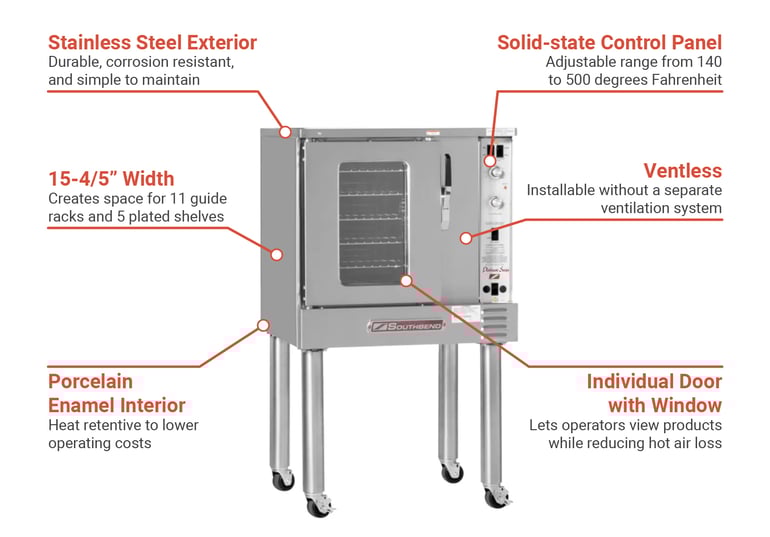

Overall, the Southbend PCHE75S/S-V Platinum single half-size convection oven measures 30 inches wide by 264/5 inches deep by 33 inches high. It supports five racks that can be adjusted across the 11-position rack guide, which is spaced 15/8 inches apart for various product sizes. This compartment is fitted with a single door that has a viewing window so users can view the products’ degree of doneness. It’s fully ventless, which means it’s installable in kitchen locations without a separate ventilation system.
This Southbend PCHE75S/S-V single half-size oven has a completely side-mounted control panel to minimize scalds, burns, and other injuries. Its solid-state controls allow individuals to adjust time and temperature with ease; it has a range between 140 and 500 degrees Fahrenheit. The timer can be set as high as 60 minutes to ensure precise cooking.
Product Details
- Platinum series
- High-efficiency electric elements
- Half-size unit
- Ventless
- Single door with window
- Opens 180 degrees
- Fastener-free porcelain enamel cabinet cavity
- 11-position rack guide
- 5 plated racks
Standard Controls
- Side-mounted control panel
- Away from the heating elements for safe use
- "Plug-in, plug-out" configuration for simple service
- Solid-state temperature controls
- Temperature range: 140-500 degrees F
- 60-minute mechanical timer
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 264/5 in. D x 33 in. H
- 7.5 kW, 1/2 HP
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Southbend PCHE75S/S-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Standard Controls, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/S-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
