Southbend PCHE75S/S Platinum Single Half Size Convection Oven - 7.5kW, 240v/3ph
$6,444.00 /Each
Web price, call us!
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability

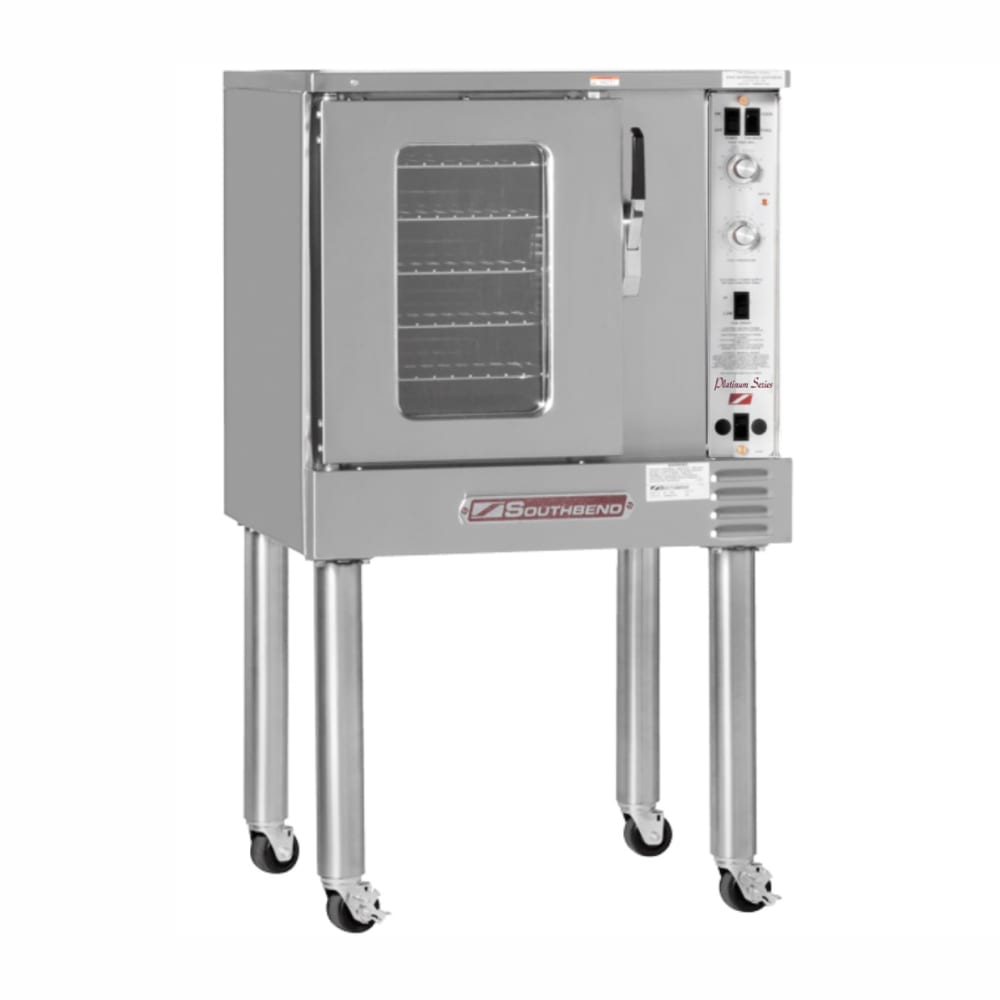

Southbend PCHE75S/S Description

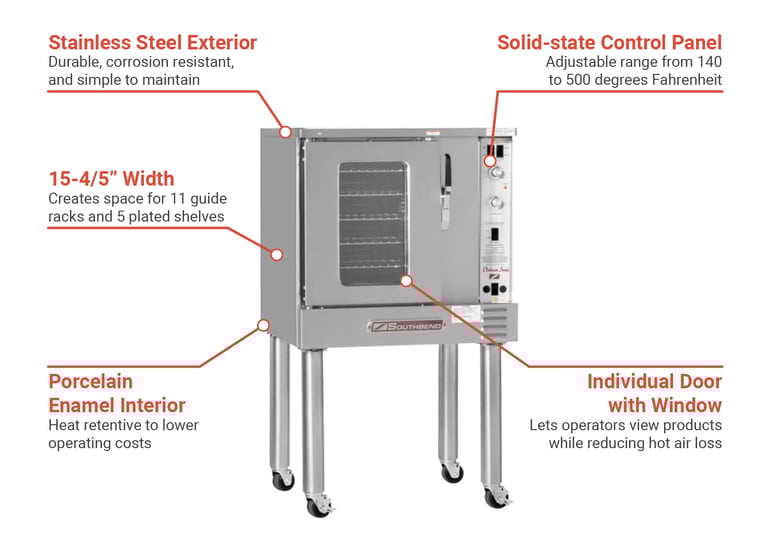

The Southbend PCHE75S/S single half-size oven has an overall height of 33 inches, as it comes standard with 4-inch-high legs. The unit’s front, sides, and top are made of stainless steel for corrosion resistance and durability, while the porcelain enamel interior retains heat well. The front features a heavy-duty door with a see-through window that opens 180 degrees for simple stocking. The 154/5-inch-wide compartment is suitable for holding five plated racks that can be adjusted across 11 positions.
The Southbend PCHE75S/S single half-size convection oven features an optional side-mounted control panel that's placed away from the heating elements for safe use and operation. This control panel has an adjustable range from 140 and 500 degrees Fahrenheit, and it also lets users set a timer as high as 60 minutes. This control panel slides in and out for simple service as needed.
Product Details
- Platinum series
- High-efficiency heating elements
- Stainless steel front, sides, and top
- Single door with window
- 180-degree opening
- Porcelain enamel interior retains heat
- 5 plated racks with 11-position rack guide
Standard Controls
- Solid-state thermostat
- Temperature range: 140-500 degrees F
- 60-minute timer
- Patented plug-in, plug-out panel
- Simple to service
- With oven “heat” light
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 264/5 in. D x 33 in. H
- 7.5 kW, 1/2 HP
- 240 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCHE75S/S within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Standard Controls
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
