Southbend PCHE75S/S Platinum Single Half Size Convection Oven - 7.5kW, 208v/1ph
$6,444.00 /Each
Web price, call us!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability

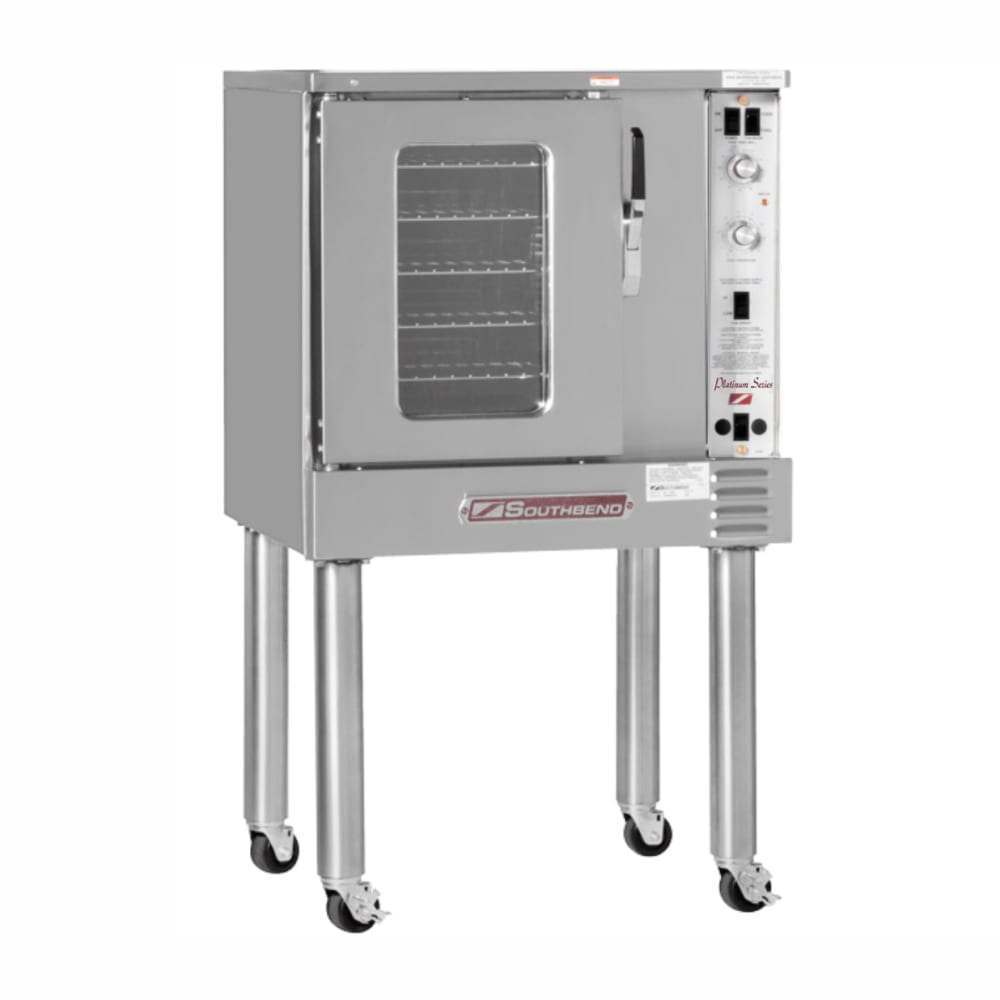

Southbend PCHE75S/S Description
The Southbend PCHE75S/S single half-size convection oven is a small stainless steel unit designed to resist rust and corrosion for an extended service life in commercial kitchens. The single-deck oven sits on legs to raise it up off the ground, and the full unit measures 30 inches wide by 292/3 inches deep by 55 inches high. The half-height design makes best use of limited space in commercial kitchen set-ups.

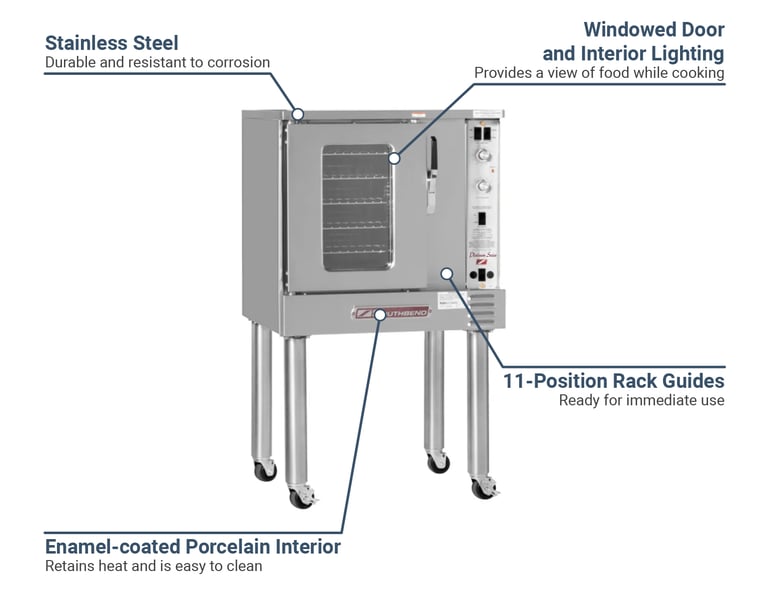

The Southbend PCHE75S/S single half-size convection oven’s single interior is accessible via the windowed door, which works with the interior recessed light to provide users with visual monitoring throughout the baking process. Its interior is lined with porcelain and features coved corners for streamlined cleaning. This unit features standard manual controls and can reach temperatures between 140 and 500 degrees Fahrenheit.
Product Details
- Part of the Platinum series
- Half-size unit
- Single-deck design
- Stainless steel top, sides, and front
- 1 windowed door
- Porcelain enamel finish interiors with coved corners
- Interior oven lights
- 5 plated oven racks with 11-position rack guides per deck
- Standard controls
- 60-minute mechanical cook timer
- Forced cool down fan mode
- Fan features 2 speeds
- Rear-mounted, sheath-type heating elements
- Temperature range: 140-500 degrees F
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 292/3 in. D x 55 in. H
- 36.1 A, 7.5 kW
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Southbend PCHE75S/S within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Standard Controls
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
