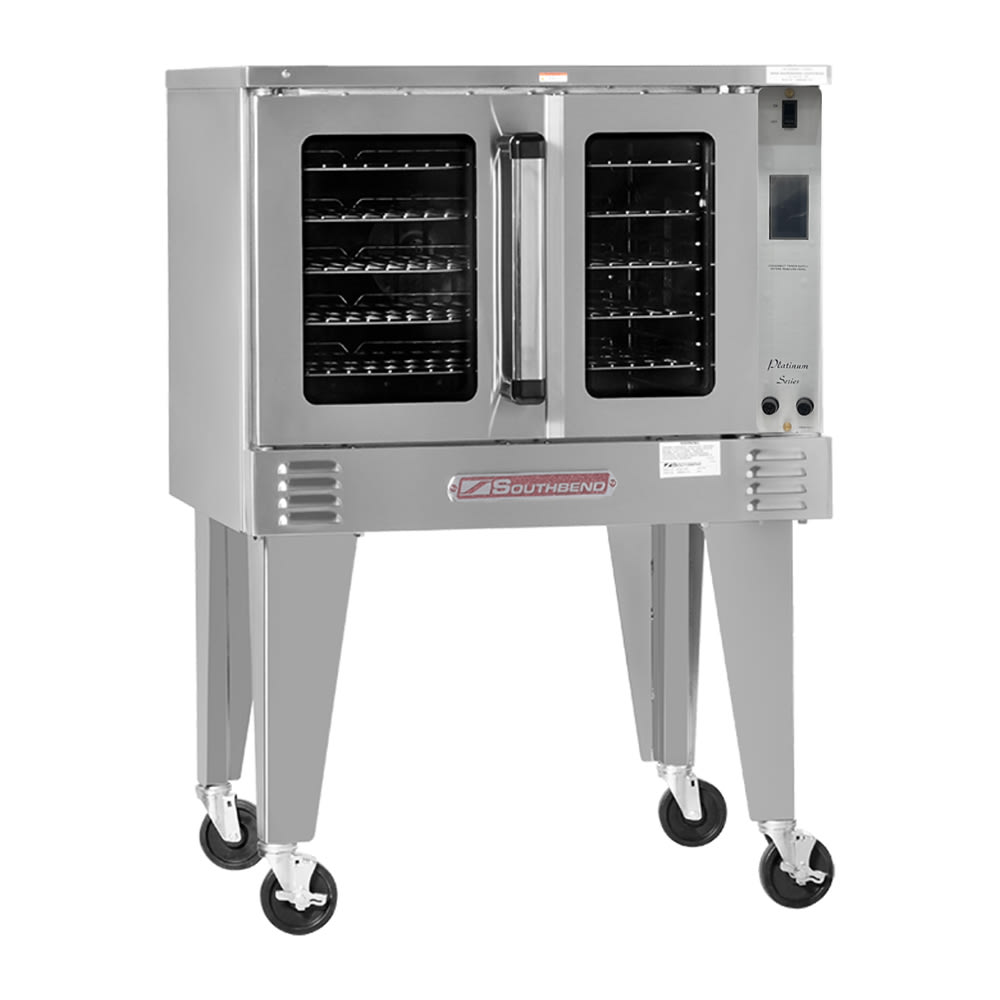

Southbend PCG90B/TD Platinum Bakery Depth Single Full Size Natural Gas Convection Oven - 90,000 BTU
$7,638.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCG90B/TD Description
Equipped with a side-mounted control panel, the Southbend PCG90B/TD Platinum single full-size convection oven is controlled electronically and displays a temperature readout. For ideal performance during busy shifts, this unit has programmed manual, recipe, and rack oven cycles, while its jet stream burners and two-speed fan motor evenly produce heat throughout the oven compartment. This unit can reach temperatures between 150 and 550 degrees Fahrenheit and features a holding range between 140 and 200 degrees to keep food fresh until served.
The Southbend PCG90B/TD bakery-depth convection oven’s exterior is made of stainless steel for durability and an extended service life. The oven’s enamel-finished porcelain interior is coved and fastener free. Its interior is built with high-temperature recessed lights, and this unit has dependent glass doors that can be opened with one hand. Staff can place the oven’s five plated racks in the oven’s 11 different rack guides; overall, this unit measures 38 inches wide by 431/2 inches deep by 55 inches high.

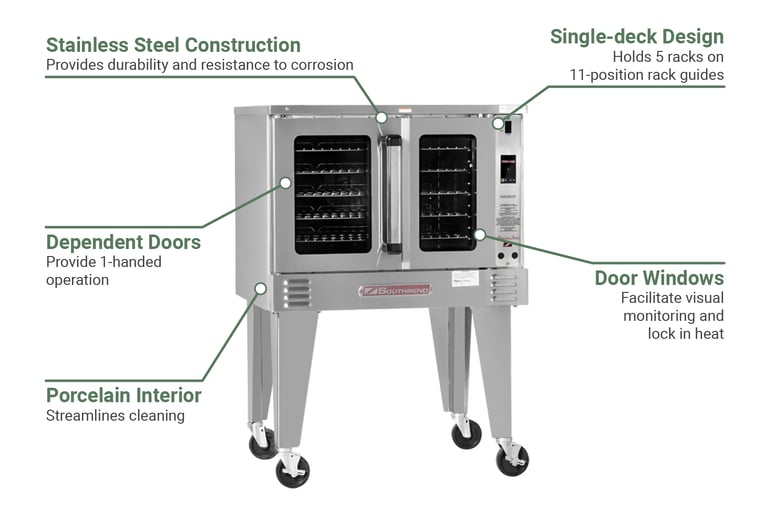

Product Details
- Platinum series
- Jet stream burners
- Single-deck unit
- Stainless steel exterior
- Porcelain interior and enamel finish
- Coved corners and fastener free
- Dependent glass doors
- Cool-to-touch handle
- 5 removable plated racks
- 11-position rack guides
- Recessed oven lights
- 26-in. stainless steel legs
- 90,000 BTU
Digital Controls
- Extends 17 in. for servicing
- Digital display shows time and temperature
- Manual, recipe, and rack oven modes
- Fan motor with 2 speeds
- Temperature range: 150-550 degrees F
- Holding temperature range: 140-200 degrees F
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 431/2 in. D x 55 in. H
- 7.9 A, 1/2 HP
- 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
- Natural gas
Product Features
*Free shipping on Southbend PCG90B/TD within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Gas 90,000 BTU's, Bakery Depth, Touch Controls, Dependent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCG90B/TD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 57.5 |
| Interior Construction | Porcelain |
| Number of Ovens | Single |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Total BTU | 90000 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 690.00 |
