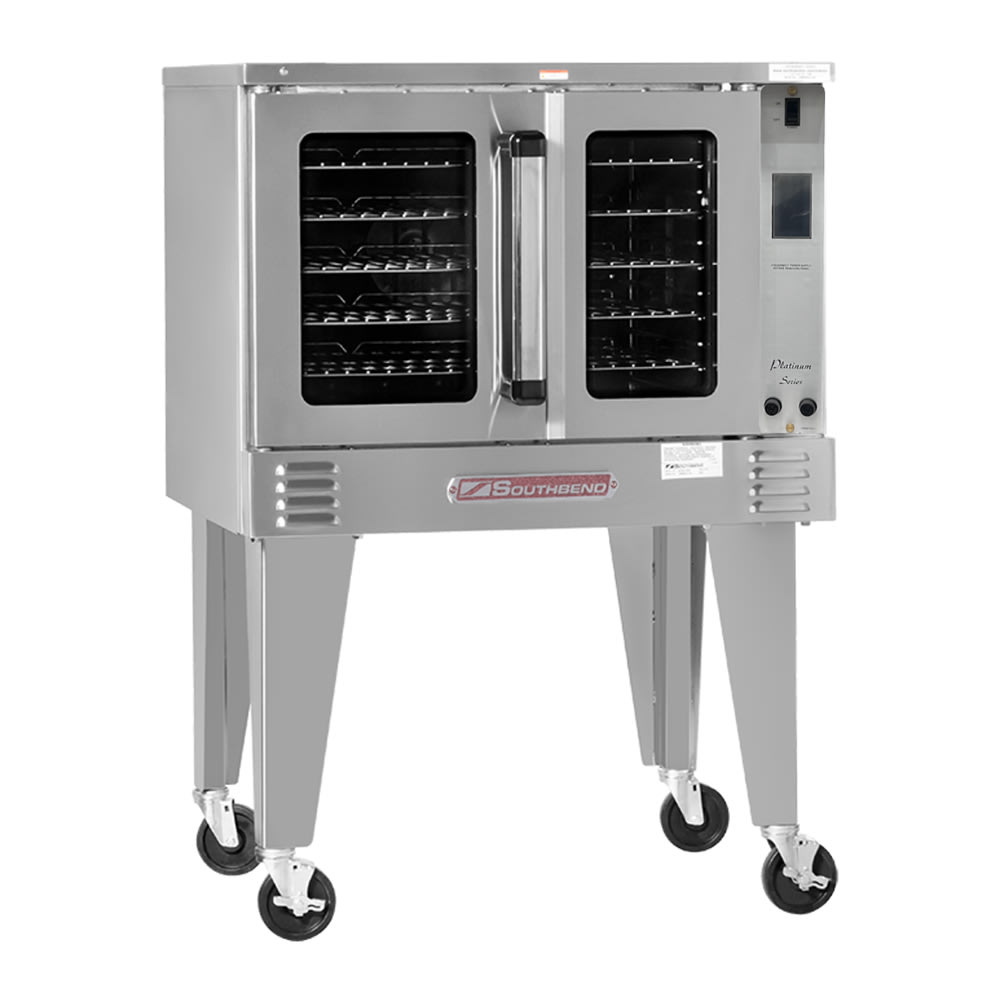

Southbend PCG90B/TD Platinum Bakery Depth Single Full Size Liquid Propane Convection Oven - 90,000 BTU
$7,638.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCG90B/TD Description

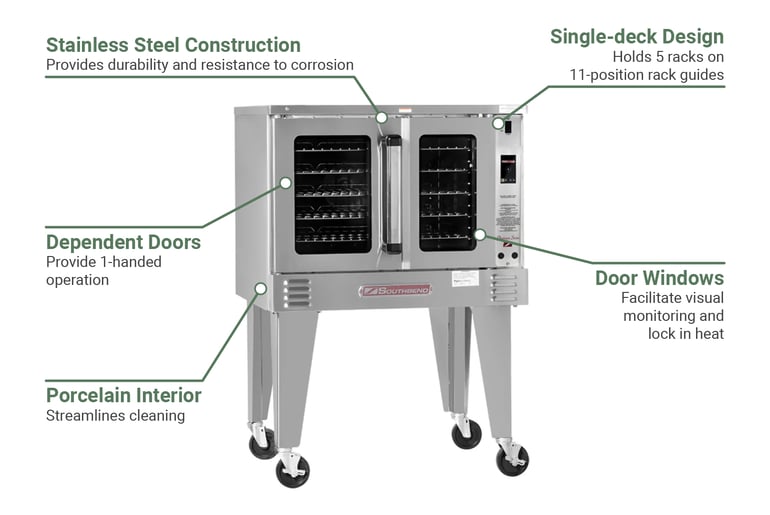

The Southbend PCG90B/TD Platinum single full-size convection oven has a stainless steel exterior that's resistant to rust and corrosion. The unit’s porcelain interior has an enamel finish and coved corners to reduce the buildup of food debris. Featuring a 29-inch bakery depth, this oven holds full-sized pans side to side or front to back. With five plated racks in 11-position rack guides, operators can adjust the removable racks to hold products of varying size.
The Southbend PCG90B/TD convection oven is designed with a two-speed blower fan to direct and circulate the hot air emitted from its jet stream burners. The oven has high-temp lamps and glass windows to support visual monitoring of its interior, and to ensure straightforward servicing, this oven has a touchscreen control panel responsible for temperature, timer, and fan settings. Its digital controls come with programmed manual, recipe, and rack modes. This unit reaches temperatures between 150 and 550 degrees Fahrenheit with a holding temperature range of 140 to 200 degrees.
Product Details
- Platinum series
- Single-deck configuration
- Jet stream burners
- Stainless steel exterior
- Enameled porcelain interior features coved corners
- 5 plated racks with 11-position rack guides
- Dependent glass doors
- Dual-door seal system retains heat
- Stay-cool handle
- Recessed oven lights
- Triangular stainless steel legs
- 90,000 BTU
Digital Controls
- Patented plug-in, plug-out control panel
- Displays time and temperature
- Programmable timers and recipes
- 2-speed blower fan
- Temperature range: 150-550 degrees F
- Holding temperature range: 140-200 degrees F
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 431/2 in. D x 55 in. H
- 7.9 A, 1/2 HP
- 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
- LP gas powered
Product Features
*Free shipping on Southbend PCG90B/TD within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Gas 90,000 BTU's, Bakery Depth, Touch Controls, Dependent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCG90B/TD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 57.5 |
| Interior Construction | Porcelain |
| Number of Ovens | Single |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Total BTU | 90000 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 690.00 |
