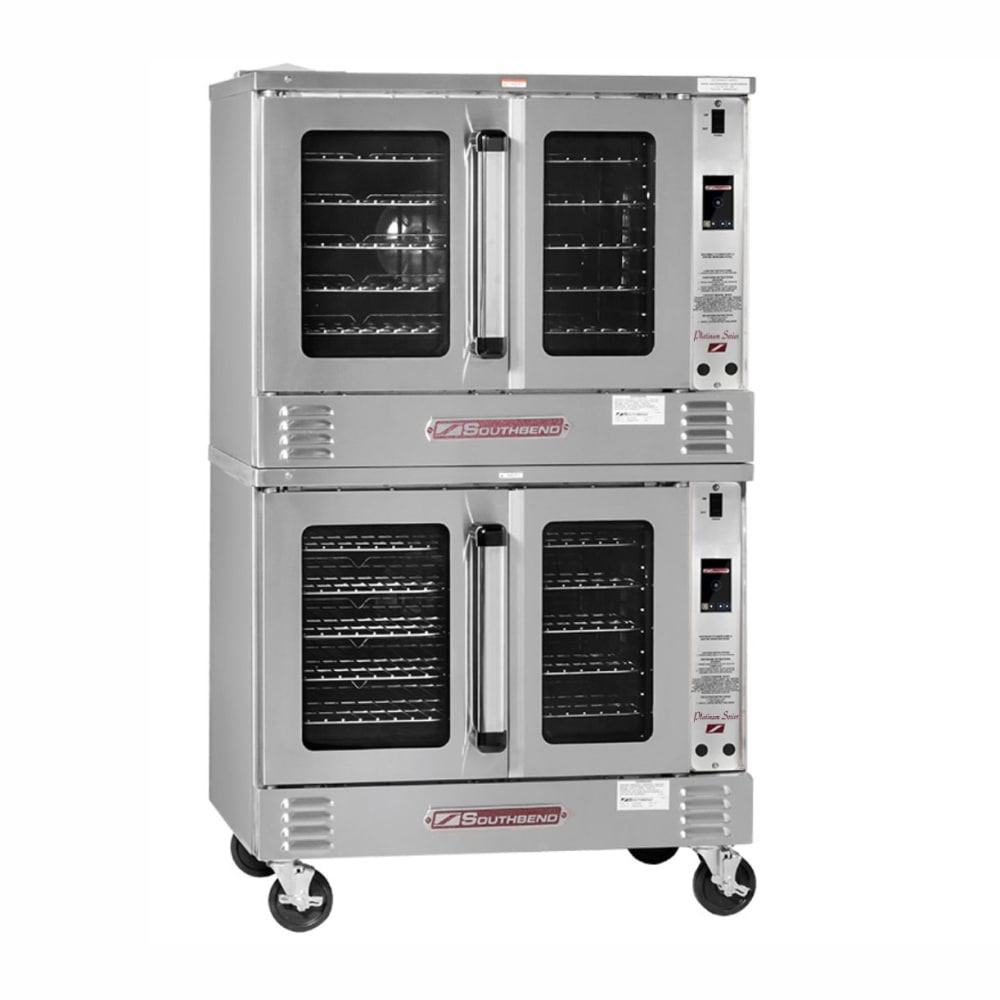

Southbend PCG140B/TI Platinum Bakery Depth Double Full Size Liquid Propane Convection Oven - 70,000 BTU
$13,844.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCG140B/TI Description
The Southbend PCG140B/TI full-size convection oven is a double-deck unit powered by liquid propane. Its stainless steel design is durable and made for long-term use, and the full unit measures 38 inches wide by 371/4 inches deep by 663/4 inches high. Its double-deck and bakery-depth design is ideal for commercial use and enables users to keep up with high demand.
This Southbend PCG140B/TI full size convection oven’s interiors are both 29 inches wide by 29 inches deep by 20 inches high. Each interior is lined with porcelain and equipped with coved corners for streamlined cleaning after hours and heat retention during use. Both ovens come with five plated racks that can be rearranged among the eleven pan guides as needed, and each cavity has a touchscreen control and a set of independent windowed doors.

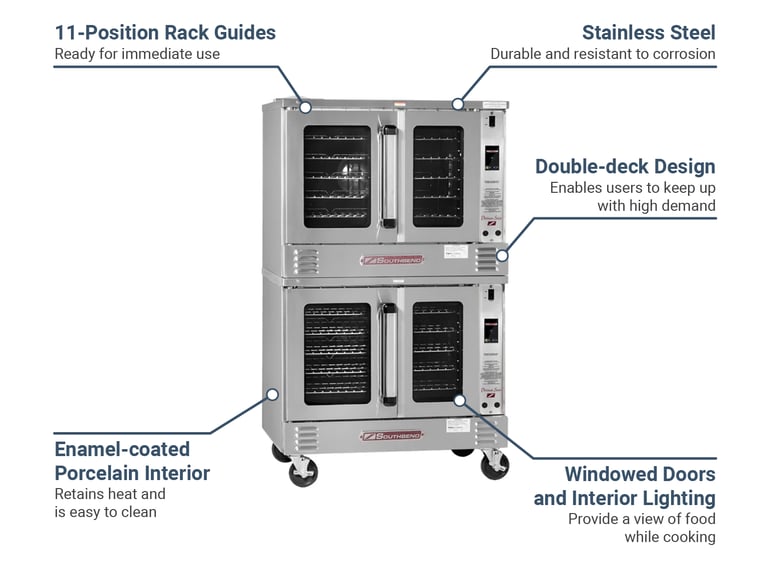

Product Details
- Part of the Platinum series
- Full-size unit
- Double-deck design
- Bakery depth
- Stainless steel top, sides, front, and rear jacket
- 2 independent doors with windows per deck
- Stay-cool, heavy-duty door handles
- Dual-door seal system
- Porcelain enamel finish interiors with coved corners
- Interior oven lights
- 5 plated oven racks with 11-position rack guides per deck
- Touchscreen controls with digital display
- Forced cool down fan mode
- Fan has 2 speeds
- Rear-mounted, sheath-type heating elements
- Temperature range: 150-550 degrees F
- 140,000 BTU
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 663/4 in. H
- 7.9 A per deck
- 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
- Liquid propane
Product Features
*Free shipping on Southbend PCG140B/TI within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Gas 70,000 BTU's each, Bakery Depth, Touch Controls, Independent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCG140B/TI Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 66.75 |
| Interior Construction | Porcelain |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Total BTU | 70000 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1189.00 |
Important Prop 65 information for California residents.
Other Products From This Line

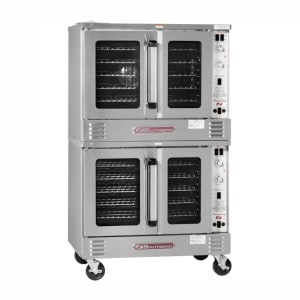

Southbend PCE15B/SD-V
