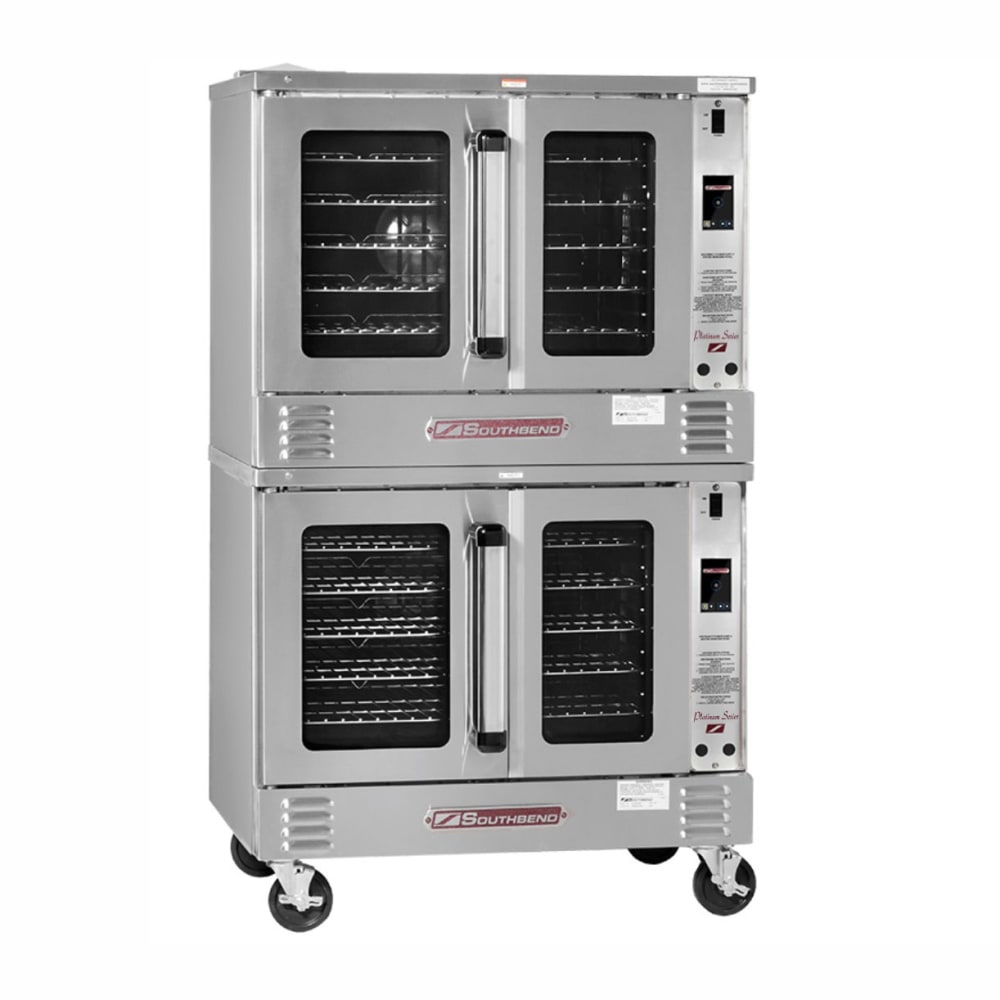

Southbend PCG100S/TD Platinum Double Full Size Liquid Propane Convection Oven - 50,000 BTU
$10,503.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCG100S/TD Description
The Southbend PCG100S/TD Platinum convection oven operates using LP gas to create temperatures between 150 and 550 degrees. This range and the timer settings can be manipulated using the set of touchscreen controllers on each deck. The two-speed fan circulates the air throughout each cabinet and can be force-cooled on demand as needed. For safety, the pilot light is lit electronically.
The exterior of the Southbend PCG100S/TD double-deck convection oven is constructed of durable stainless steel, while its interiors are made of heat-retentive, enamel-coated porcelain. The corners in the interior are coved for easy cleaning and fitted with five shelves lit with recessed interior lights. A set of dependent doors—each with a high-efficiency window—is affixed to the front of each deck. These doors open and close together for easy, one-handed opening and create a tight seal when closed.
Product Details
- Platinum series
- Double-deck design
- Stainless steel exterior
- 2 dependent doors with high-efficiency windows
- Porcelain-enameled interior
- Coved interior corners
- 5 adjustable wire racks per deck
- Recessed interior lighting
- Touchscreen controller on slide-out panel
- Timers and recipes are programmable
- Forced cool-down mode
- Temperature range: 150-550 degrees F
- 2-speed fan motor
- Electronic ignition
- (4) 6-in. stainless steel legs
- 100,000 BTU
Dimensions & Utilities
- Interior: (2) 29 In W x 211/2 in. D x 20 in. H
- Overall: 38 in. W 371/4 in. D x 643/4 in. H
- 7.9 A per deck
- 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
- Powered by LP gas
Product Features
*Free shipping on Southbend PCG100S/TD within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Gas 50,000 BTU's each, Standard Depth, Touch Controls, Dependent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCG100S/TD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 66.75 |
| Interior Construction | Porcelain |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Total BTU | 50000 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1040.00 |
Important Prop 65 information for California residents.
Other Products From This Line

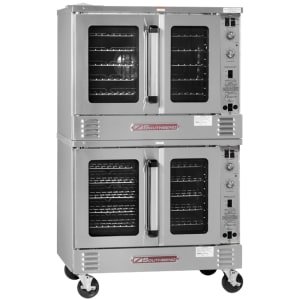

Southbend PCG180B/SD
