Southbend PCE75S/TI-V Platinum Ventless Single Full Size Convection Oven - 7.5kW, 208v/3ph
$8,115.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability

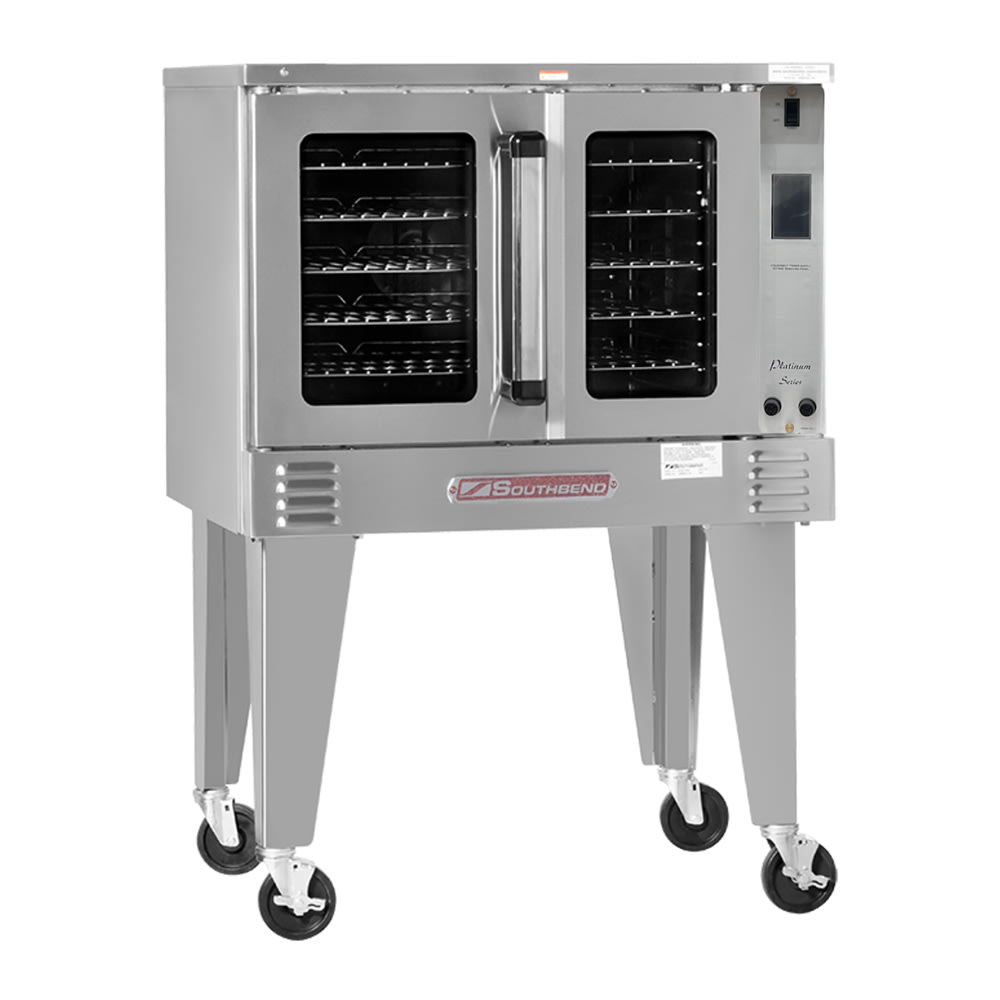

Southbend PCE75S/TI-V Description
An item from the Platinum series, the Southbend PCE75S/TI-V full-size convection oven has a single-deck design capable of holding five oven racks; these racks can be adjusted along the 11-position rack guide to fit various pan configurations. This unit is constructed of stainless steel for durability and has a porcelain enamel interior with coved corners to retain heat and prevent debris build up. To limit heat loss during operation, this unit is fitted with two windowed doors that operate independently.
The Southbend PCE75S/TI-V convection oven is ventless, so it doesn't require a hood for operation. This unit has a two-speed fan motor that pushes hot air into the oven chamber to maintain a set temperature level between 150 and 500 degrees Fahrenheit. Operators can use the touchscreen controls located on the slide-out control panel to program various temperature and recipe modes, including a forced cool down function. For stability, this unit sits atop four, 26-inch-long stainless steel legs.
Product Details
- Part of the Platinum series
- Full-size
- Single-deck design
- Standard depth
- Ventless
- Stainless steel exterior
- Porcelain enamel interior with coved corners
- 2 independent doors with glass windows
- 5 oven racks on 11-position rack guide
- Interior lighting
- Touchscreen controls with manual and recipe functions
- Temperature range: 150-500 degrees F
- Holding temperature range: 140-200 degrees F
- Forced cool down function
- 2-speed fan motor
- (4) 26-in. triangular legs
Dimensions & Utilities
- Interior: 29 in. W x 211/2 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 55 in. H
- 20.9 A, 7.5 kW
- 208 V/60 Hz/3 ph

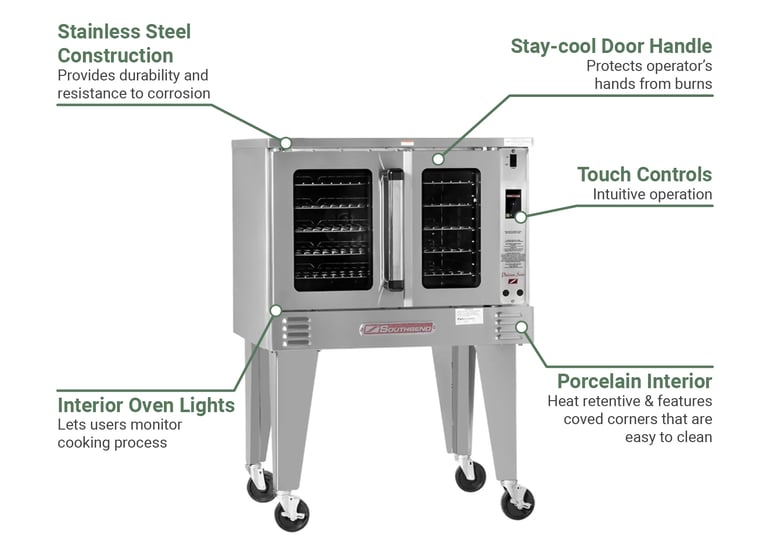

Product Features
*Free shipping on Southbend PCE75S/TI-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric 7.5kW, Standard Depth, Touch Controls, Independent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE75S/TI-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 620.00 |
