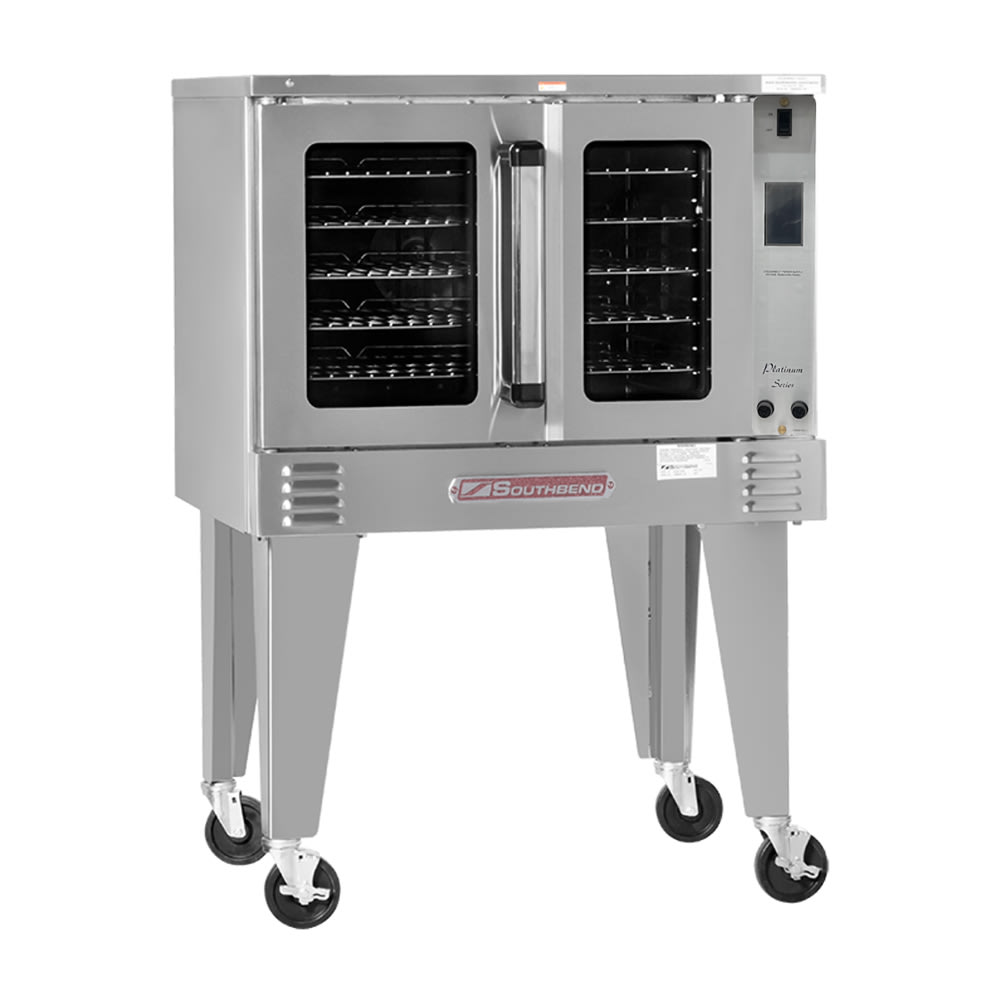

Southbend PCE75S/TI Platinum Single Full Size Convection Oven - 7.5kW, 208v/3ph
$5,728.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE75S/TI Description

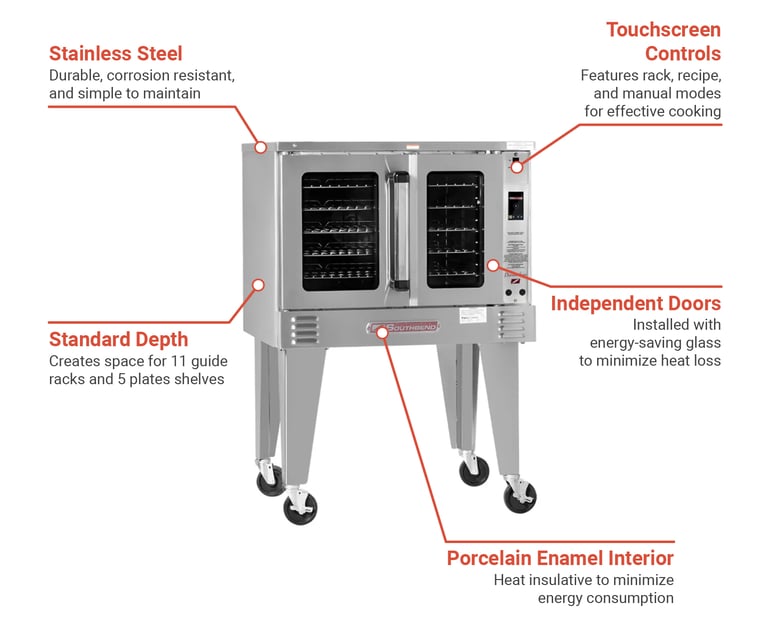

The Southbend PCE75S/TI Platinum single full-size oven measures 29 inches wide by 211/2 inches deep by 20 inches high—suitable for five plated racks that can be adjusted across the 11-position rack guide. The interior is finished in porcelain enamel, which is a heat-insulative material. The coved corners ensure simple cleaning after heavy use. The exterior is made of stainless steel at the front, sides, and top, so it’s corrosion resistant and durable. A two-piece independent door with a cool-to-touch handle reduces burn and scald hazards.
A simple-to-use touchscreen is side mounted to the Southbend PCE75S/TI convection oven’s body; this panel provides multiple options—manual, recipe, and rack—to streamline its operation. It runs between 150 and 500 degrees Fahrenheit and provides a holding range between 140 and 200 degrees when food is finished cooking. When maintenance or service is needed, this panel slides out 17 inches. Inside, two-speed blower fans circulate heat evenly inside the cavity to thoroughly prepare food.
Product Details
- From the Platinum series
- Rear-mounted heating elements
- Stainless steel front, sides, and top
- Porcelain enameled interior
- Independent doors with heavy-duty handles
- Dual-door seal for heat retention
- Coved, fastener-free design
- 11-postion rack guides and 5-plated racks
- 26-in. stainless steel legs
Touch Controls
- Digital control system
- Temperature range: 150-550 degrees F
- Holding range: 140-200 degrees F
- Slides out 17 in. for maintenance
- Side mounted away from heating elements
- 2-speed blower fans
Dimensions & Utilities
- Oven interior: 29 in. W x 211/2 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 55 in. H
- 20.9 A, 7.5 kW
- 208 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCE75S/TI within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric, 7.5kW, Standard Depth, Touch Controls, Independent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCE75S/TI Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Depth (in) | 37.25 |
| Heat | Electric |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Height (in) | 55 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Rating | Spec |
| Size | Full Size |
| Series | Platinum |
| Product Type | Cooking Equipment |
| Product | Convection Ovens |
| Voltage | 208 |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 620.00 |
Important Prop 65 information for California residents.
