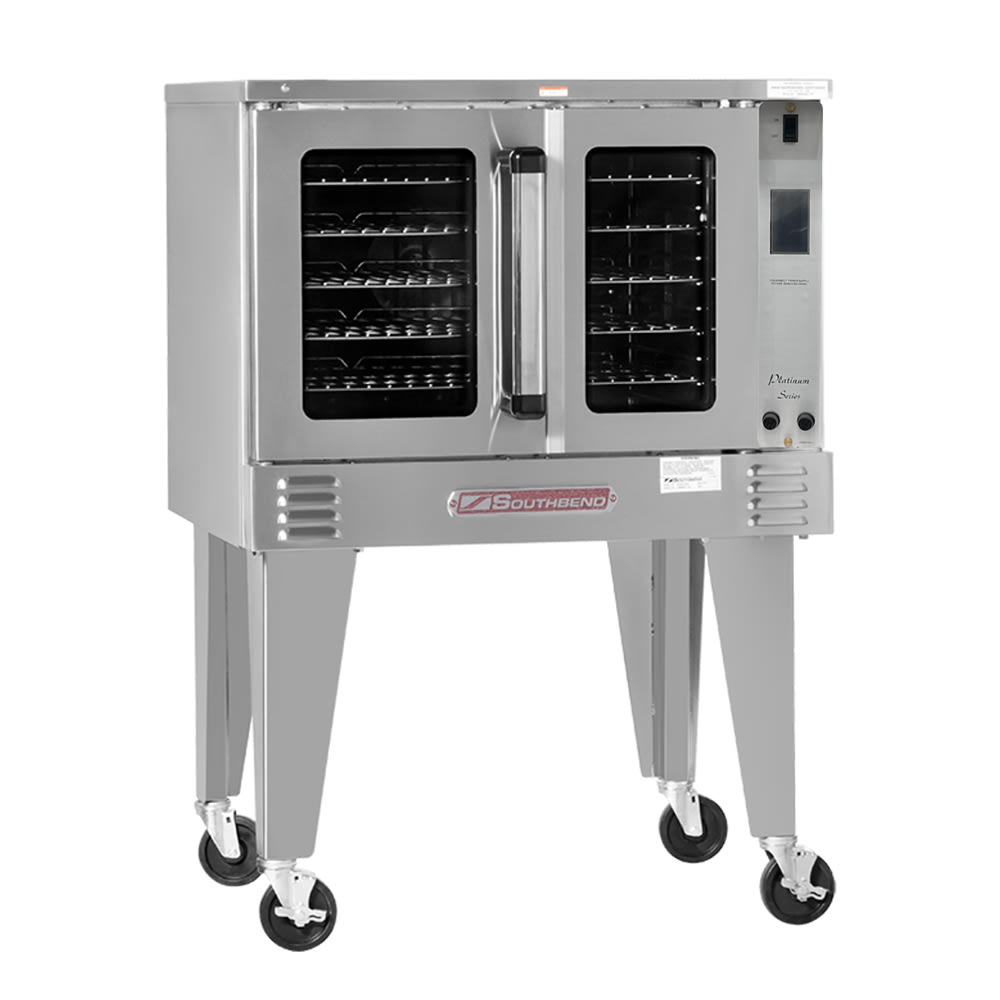

Southbend PCE75S/TD-V Platinum Ventless Single Full Size Convection Oven - 7.5kW, 240v/1ph
$8,115.00 /Each
Web price, call us!
Selected Voltage: 240V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE75S/TD-V Description

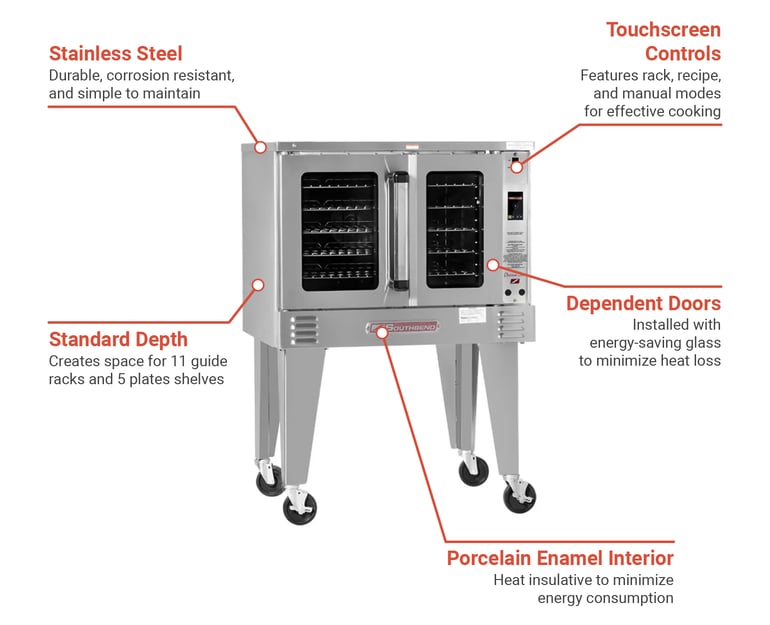

The Southbend PCE75S/TD-V Platinum single full-size convection oven has a fully ventless configuration that simplifies installation because it doesn't require a hood. This unit features a stainless steel construction at the front, top, sides, and rear jacket to slow corrosion and supplement strength. Because the interior is finished in porcelain enamel, it’s heat insulative, and the coved corners are simple to clean after heavy use.
This Southbend PCE75S/TD-V convection oven has a side-mounted touchscreen system. This touchscreen provides the following modes: recipe, rack, and manual for operation. It has an operable range between 150 and 500 degrees and a holding range between 140 and 200 degrees. The control panel slides out 17 inches for simple service and maintenance as needed.
Product Details
- From the Platinum series
- Efficient electric heating elements
- Ventless
- Top, sides, and rear jacket made of stainless steel
- Porcelain enameled finish
- Coved corners ease cleaning
- Rack and rack guides with 15/8-in. spacing
- Recessed high-temperature lights
- 26-in. legs made of stainless steel
Touch Controls
- Temperature range: 150-550 degrees F
- Holding range: 140-200 degrees F
- Digital display reflects time and temperature
- Operates preset fan pulse
- Recipe, manual, and rack modes
- Pulls out 17 in. for service
Dimensions & Utilities
- Interior: 29 in. W x 211/2 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 55 in. H
- 31.3 A, 7.5 kW
- 240 V/60 Hz/1 ph
Product Features
*Free shipping on Southbend PCE75S/TD-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric, 7.5kW, Standard Depth, Touch Controls, Dependent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE75S/TD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 620.00 |
