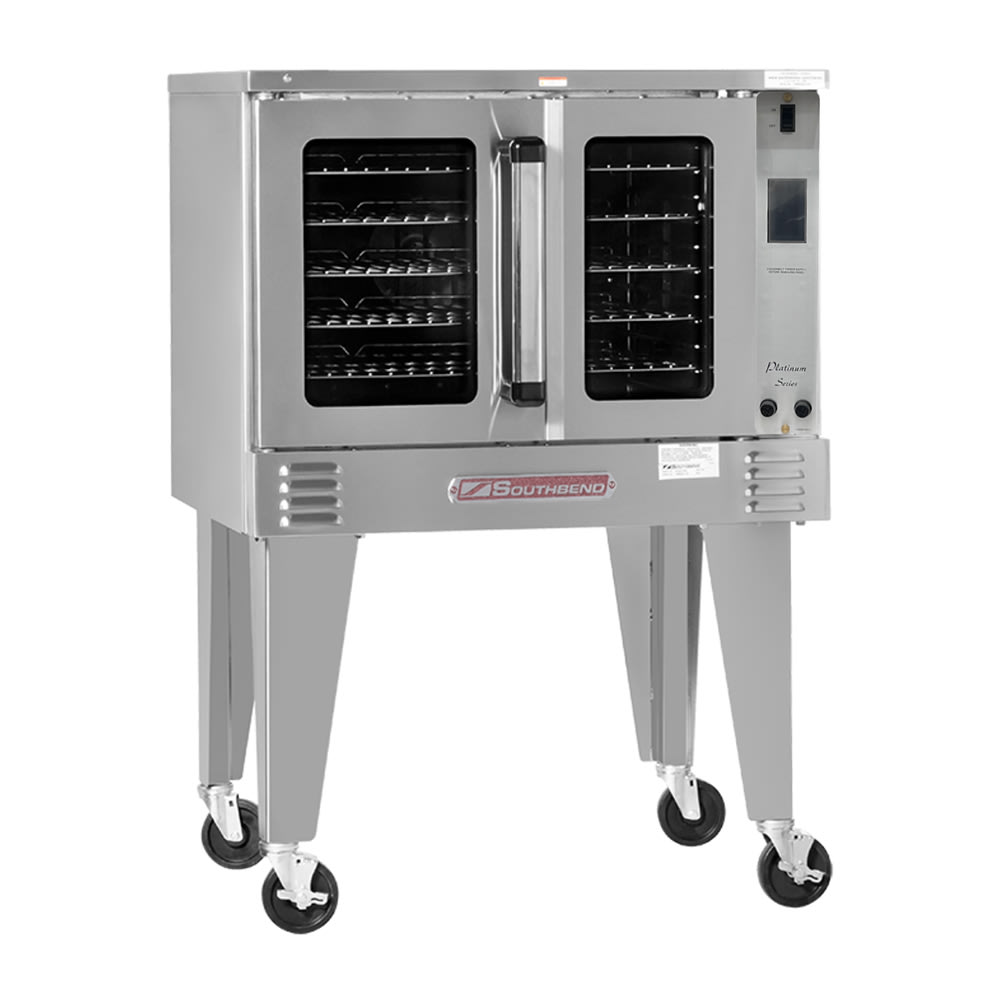

Southbend PCE75S/TD-V Platinum Ventless Single Full Size Convection Oven - 7.5kW, 208v/3ph
$8,115.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE75S/TD-V Description
The Southbend PCE75S/TD-V single full-size convection oven with an internal width of 29 inches. This cavity is suitable for 11-position guide racks and 5-plated racks; these guide racks have 15/8-inch spacing. The interior has a porcelain enamel finish and features coved corners, so it’s heat retentive and simple to clean over time. This unit features two metal doors with energy-saving glass and a dual-seal closure to retain heat. 26-inch, heavy-duty, stainless steel triangular legs keep the unit upright.
The Southbend PCE75S/TD-V full-size convection is operated with its side-mounted control panel. Users can use this panel to adjust the temperature between 150 and 500 degrees Fahrenheit; it has a separate holding range between 140 and 200 degrees. The convection oven’s digital display effectively communicates time and temperature so operators can track the unit’s operational conditions with ease. When service or maintenance is needed, this panel slides out 17 inches.

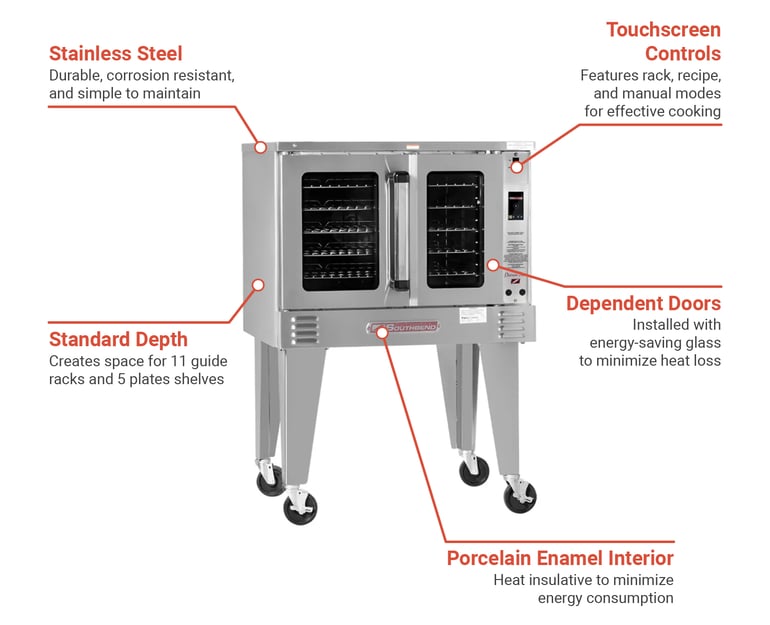

Product Details
- In the Platinum series
- Sheath-type heating elements
- Fully ventless
- Stainless steel exterior
- Interior features porcelain enamel finish
- Dependent doors
- Energy-saving glass panels
- 11-position rack guides fit 5 plates shelves
- 15/8-in. spacing
- 26-in. stainless steel triangular legs
Touch Controls
- Side-mounted design
- Temperature range: 150-500 degrees F
- Holding range: 140-200 degrees F
- Digital display
- Multiple cook modes: manual, recipe, and rack
- Pulls out for servicing
Dimensions & Utilities
- Interior: 29 in. W x 211/2 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 55 in. H
- 20.9 A, 7.5 kW
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Southbend PCE75S/TD-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric, 7.5kW, Standard Depth, Touch Controls, Dependent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE75S/TD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 620.00 |
