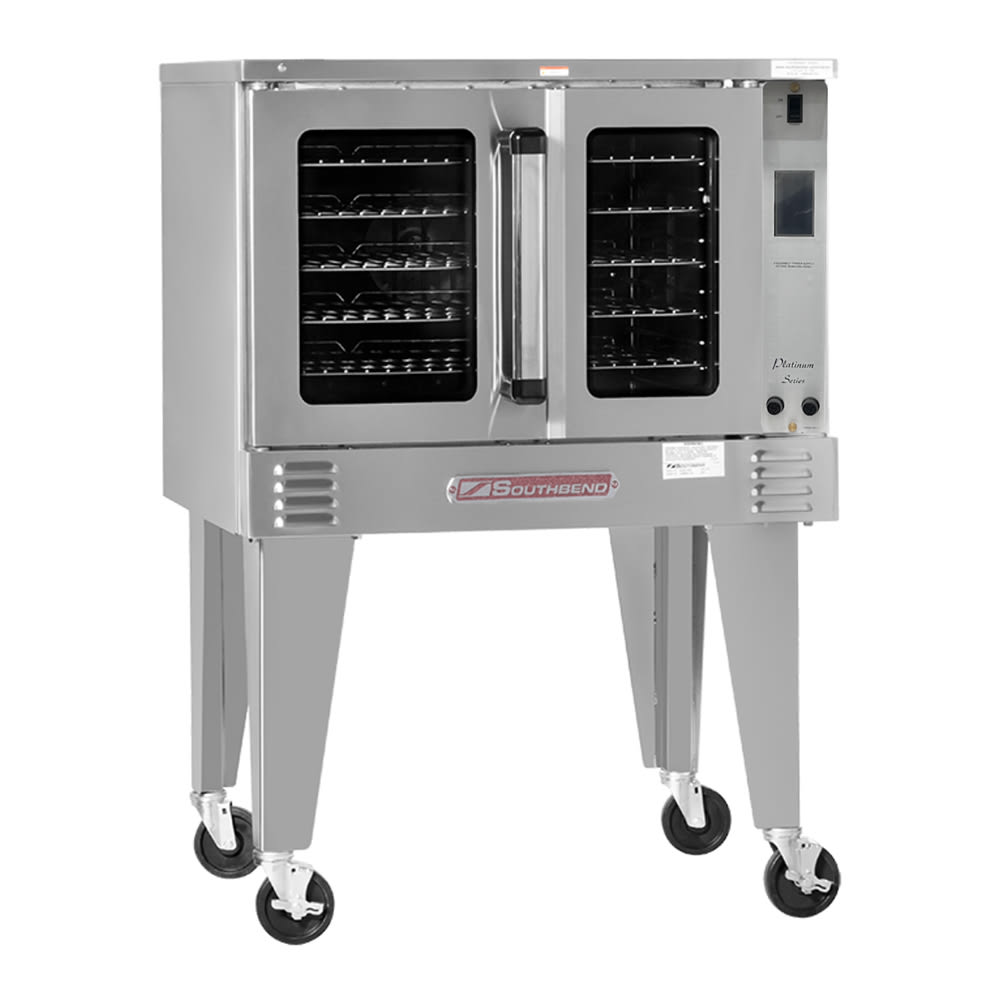

Southbend PCE75S/TD Platinum Single Full Size Convection Oven - 7.5kW, 240v/3ph
$5,728.00 /Each
Web price, call us!
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE75S/TD Description

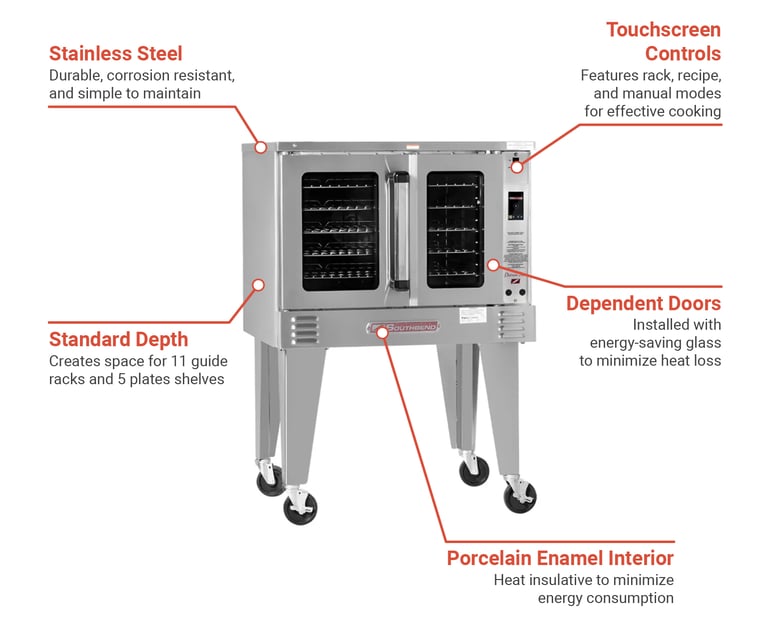

The standard-depth Southbend PCE75S/TD full-size convection oven has an interior that measures 29 inches wide. Inside, there are 11-position guide racks that organize five plated racks. The porcelain enamel finish is a great heat insulator, while the coved corners help ease cleaning. The unit’s top, sides, and jacket are made of stainless steel to slow corrosion and provide durability. It has a dependent door with energy-saving glass panels for heat keeping. So operators can view the products’ degree of doneness, it stays illuminated with LED lighting inside.
The touchscreen controls of the Southbend PCE75S/TD full-size convection oven are completely side mounted and away from the heating elements for safe use. There are three possible cooking modes: manual, recipe, and rack mode. It can be set between 150 and 500 degrees and boasts a holding range from 140 and 200 degrees Fahrenheit. The unit’s digital display constantly updates with the current time and temperature, and the panel slides out 17 inches for effective service and maintenance when needed.
Product Details
- Platinum series
- Efficient heat elements
- 11-position rack guides and 5 plated oven racks
- Standard depth
- Top, sides, and jacket are made of stainless steel
- Coved, fastener-free porcelain enamel finish
- 2 dependent doors with windows
- Handles are cool to touch
- 11-position guide rack with 5 plated racks
- Internal oven lights
Touchscreen Controls
- Temperature range: 150-500 degrees F
- Holding range: 140-200 degrees F
- Digital display presents time and temperature
- Fan cycle timer periodically pulses fan
- 3 total modes: manual, recipe, and rack mode
- Slide-out panel design
Dimensions & Utilities
- Interior: 29 in. W x 211/2 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 55 in. H
- 18.1 A, 7.5 kW
- 240 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCE75S/TD within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric, 7.5kW, Standard Depth, Touch Controls, Dependent Doors
*Image may not depict product color, inclusions or accessories.
Southbend PCE75S/TD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 620.00 |
