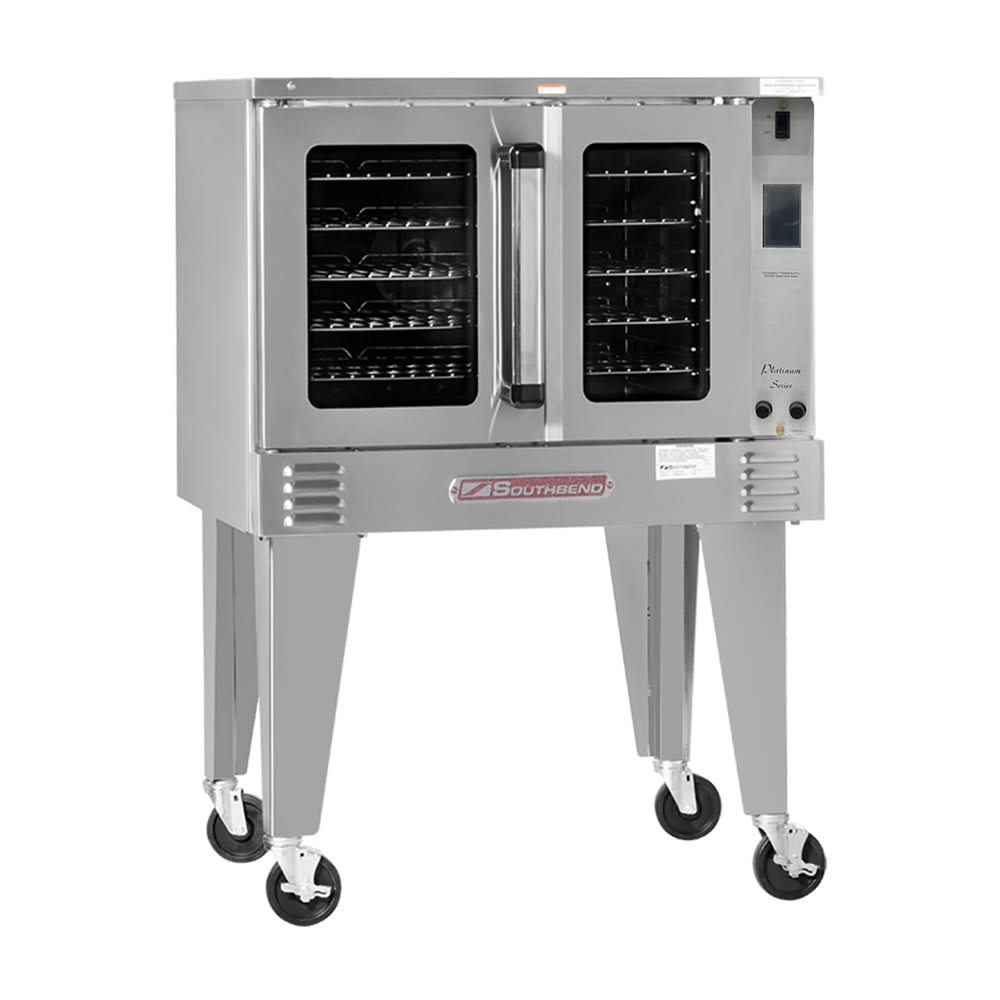

Southbend PCE75B/TI-V Platinum Ventless Bakery Depth Single Full Size Convection Oven - 7.5kW, 240v/1ph
$8,593.00 /Each
Web price, call us!
Selected Voltage: 240V, 1 Phase
| 240V, 3 Phase |
| 240V, 1 Phase |
| 208V, 3 Phase |
| 208V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE75B/TI-V Description

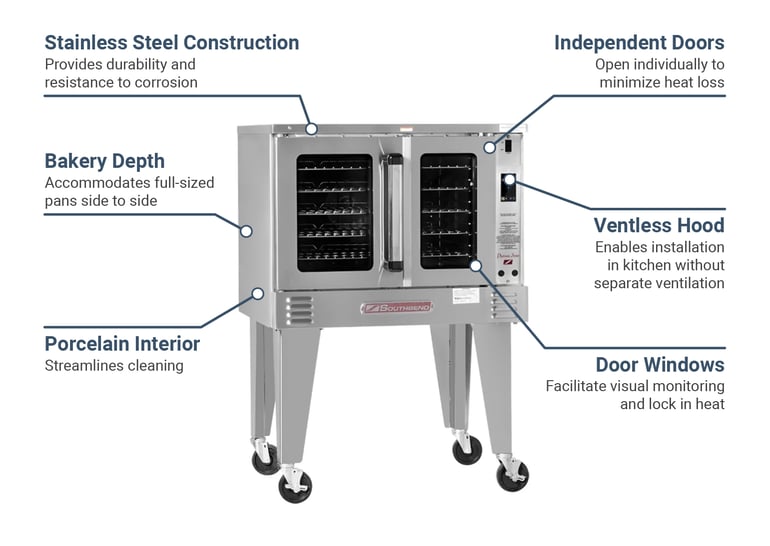

With a 29-inch bakery depth and 55-inch overall height, the Southbend PCE75B/TI-V Platinum single full-size convection oven has five racks and 11-position rack guides with 15/8-inch spacing. The oven’s body is constructed of durable and corrosion-resistant stainless steel; the interior is made of enameled porcelain and features coved corners for simple cleaning. For efficiency in foodservice environments, this oven has independent doors with windows, a cool-to-touch handle, and high-temperature recessed lighting. This unit is ventless for versatile installation.
For user safety, the Southbend PCE75B/TI-V convection oven’s touchscreen control panel is side mounted and located away from the heating elements. Users can adjust temperature and timer settings with the control panel and choose between the manual, recipe, and rack oven cycles. The regulated temperature range can reach 150 to 550 degrees Fahrenheit and has a holding range of 140 to 200 degrees.
Product Details
- Part of the Platinum series
- Features high-efficiency heating elements
- Single-deck design holds full-size pans
- Ventless
- Comes with 5 racks and 11-position rack guides
- 15/8-in. spacing
- Stainless steel construction
- Coved, porcelain interior with enamel finish
- Independent doors with windows
- Cool-to-touch handle
- High-temp lighting
- 26-in. stainless steel legs
Digital Controls
- Slide-out access
- 3 oven cycles: manual, recipe, and rack
- Temperature and time are digitally displayed
- Adjusts timer, fan, and temperature settings
- 2-speed blower fan
- Temperature range: 150-550 degrees F
- Holding temperature: 140-200 degrees F
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 431/2 in. D x 55 in. H
- 31.3 A, 7.5 kW, 1/2 HP
- 240 V/60 Hz/1 ph
Product Features
*Free shipping on Southbend PCE75B/TI-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric 7.5kW, Bakery Depth, Touch Controls, Independent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE75B/TI-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 680.00 |
Important Prop 65 information for California residents.
