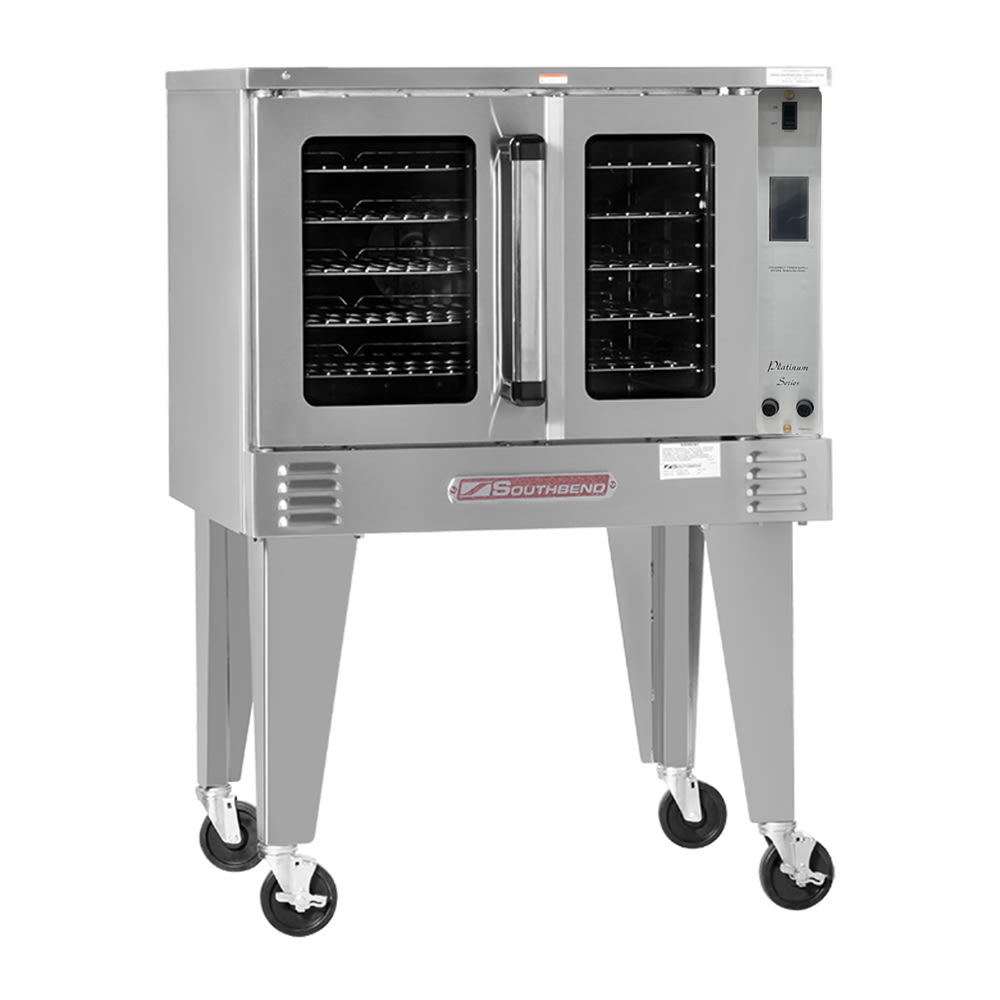

Southbend PCE75B/TI-V Platinum Ventless Bakery Depth Single Full Size Convection Oven - 7.5kW, 208v/1ph
$8,593.00 /Each
Web price, call us!
Selected Voltage: 208V, 1 Phase
| 240V, 3 Phase |
| 240V, 1 Phase |
| 208V, 3 Phase |
| 208V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE75B/TI-V Description

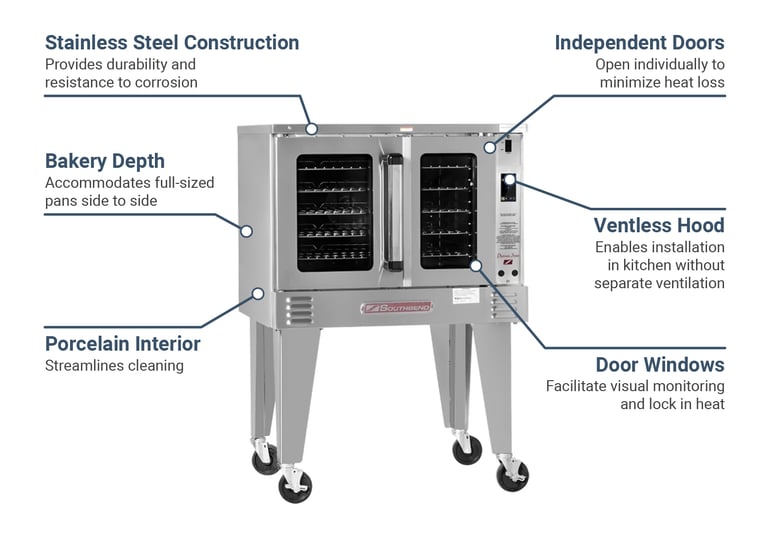

Constructed of durable, scratch-resistant stainless steel, the Southbend PCE75B/TI-V Platinum single full-size convection oven is ideal for heavy use in foodservice operations. Its enamel-finished porcelain interior can be wiped clean after use. The oven cabinet has 11-position rack guides and includes five plated oven racks. For optimal spacing, the racks are adjustable, and the 29-inch bakery depth can hold pans from front to back. The oven’s ventless configuration enables hood-free kitchen installation.
The Southbend PCE75B/TI-V convection oven can be set between 150 and 550 degrees Fahrenheit with its side-mounted control panel. The panel’s digital display tracks the set temperature and timer. Its slide-out access and three operable modes—manual, recipe, and rack—enable easy service. Independent glass doors that open individually and adjustable fan settings reduce heat loss. Overall, this unit measures 38 inches wide by 431/2 inches deep by 55 inches high.
Product Details
- Featured in the Platinum series
- Rear-placed heating elements
- Single-deck style
- Ventless
- Stainless steel exterior and porcelain interior
- Enamel finish and coved corners
- Holds 5 wire racks
- 11-position rack guides
- Independent doors with low-emission windows
- Dual-door seal system
- Heavy-duty handle stays cool to touch
- Internal lighting
- Mounted on 26-in. stainless steel legs
Digital Controls
- Patented plug-in, plug-out design
- Slide-out configuration
- Operates 2-speed fan
- Manual, recipe, and rack modes
- Digital display readout
- Temperature range: 150-550 degrees F
- Holding temperature: 140-200 degrees F
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 431/2 in. D x 55 in. H
- 36.1 A, 7.5 kW, 1/2 HP
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Southbend PCE75B/TI-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric 7.5kW, Bakery Depth, Touch Controls, Independent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE75B/TI-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 680.00 |
