Southbend PCE22S/TD-V Platinum Ventless Double Full Size Convection Oven - 11kW, 240v/3ph
$17,663.00 /Each
Web price, call us!
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE22S/TD-V Description

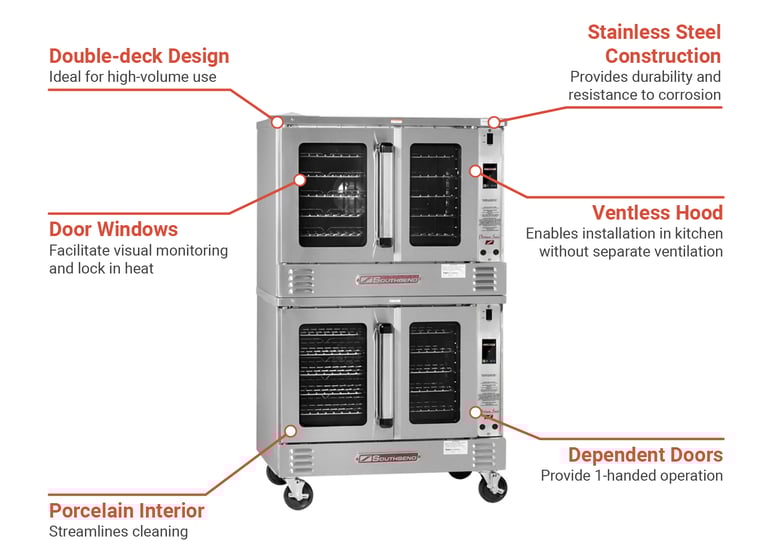

Featuring a double-deck design ideal for preparing large batches of food product, the Southbend PCE22S/TD-V convection oven is an ideal product for bakeries and other foodservice establishments requiring large oven space. This unit has a durable stainless steel exterior with stay-cool handles to permit safe operation, and the ventless design enables flexibility in installation because it doesn't have to be installed under a hood. Each oven has a porcelain enamel interior with coved corners to aid in heat retention and make cleaning a breeze, and each oven deck has two windowed doors with a dependent design to enable convenient one-handed opening.
The Southbend PCE22S/TD-V convection oven can accommodate a total of 10 oven racks with five racks per deck; these racks can be adjusted along the 11-position rack guides in each oven chamber to fit different pan sizes. Each oven has a two-speed fan motor that distributes hot air into the oven chamber to maintain a set temperature between 150 and 500 degrees Fahrenheit. The touch controls of this unit can be used to program manual and recipe functions, including a forced cool down mode. To provide users with a clear view of the cooking process, each oven cavity is equipped with interior lighting.
Product Details
- Part of the Platinum series
- Full-size, double-deck configuration
- Standard depth
- Ventless
- Exterior made of dent- and corrosion-resistant stainless steel
- Porcelain enamel interior with coved corners
- 2 windowed independent doors per deck
- Stay-cool handles
- 5 oven racks per deck on 11-position rack guides
- Oven interior lighting
- Control panel on front right of each deck
- Touchscreen controls
- Temperature range: 150-500 degrees F
- Holding range: 140-200 degrees F
- Forced cool down option
- 2-speed fan motor
Dimensions & Utilities
- Interior: (2) 29 in. W x 211/2 in. D x 20 in. H
- Overall: 38 in. W x 371/4 in. D x 64 in. H
- 26.5 A, 11 kW
- 240 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCE22S/TD-V within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Electric 11kW each, Standard Depth, Touch Controls, Dependent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE22S/TD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 22 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1075.00 |
