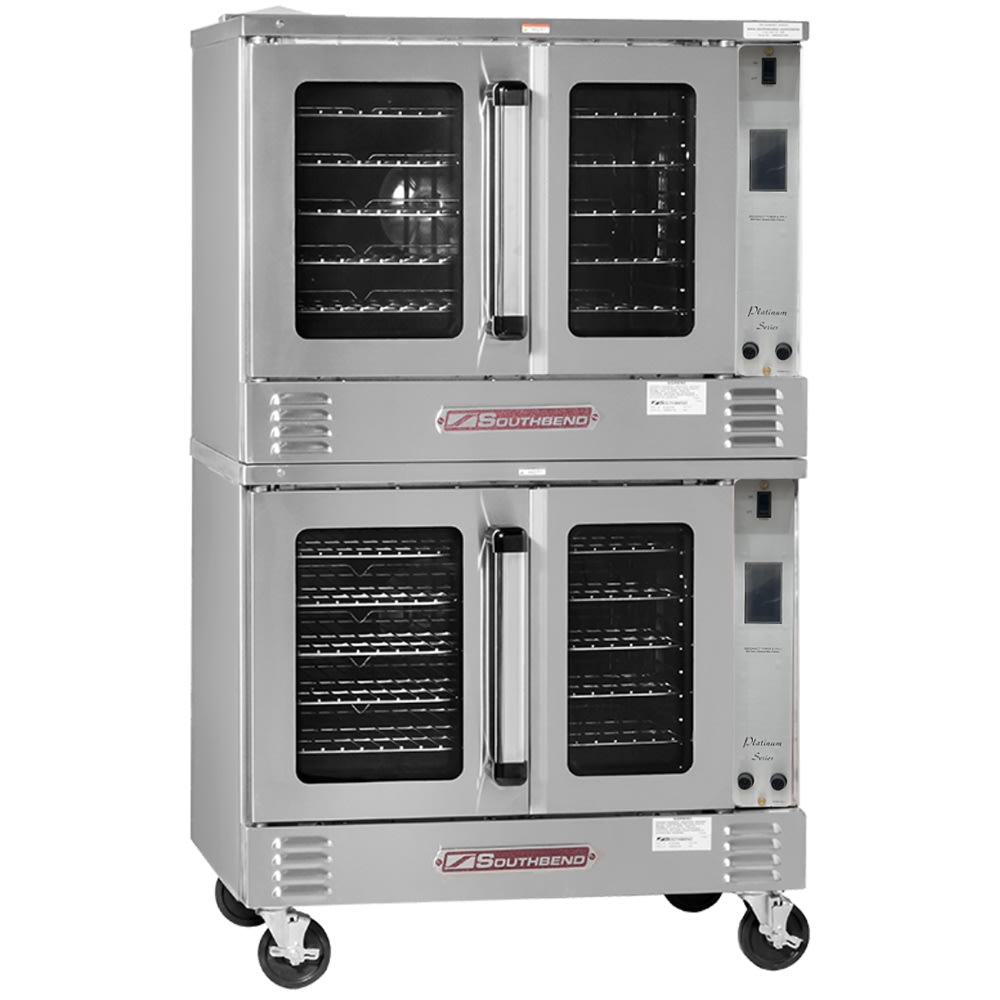

Southbend PCE22B/TD-V Platinum Ventless Bakery Depth Double Full Size Convection Oven - 11kW, 240v/1ph
$19,573.00 /Each
Web price, call us!
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE22B/TD-V Description
The Southbend PCE22B/TD-V full-size convection oven’s top, sides, front, and rear jacket are made of durable stainless steel for resistance to rust and corrosion. This unit has a double-deck design made to keep up with high demand in bakeries and commercial kitchens, and each oven chamber measures 29 inches wide by 29 inches deep by 20 inches high. For setting time and temperature, each oven has a touchscreen control panel.
The Southbend PCE22B/TD-V full-size convection oven’s two interiors are equipped with coved corners for easy cleaning and adjustable oven racks to accommodate different pan sizes. Both interiors are lined with enameled porcelain, which retains heat well and simplifies cleaning. The interiors are accessible via dependent doors, which enable one-handed opening. The convection oven can reach and hold temperatures ranging from 150 to 550 degrees Fahrenheit, and the full unit measures 38 inches wide by 431/2 inches deep by 64 inches high.
Product Details
- Part of the Platinum series
- Full-size unit
- Double-deck design
- Stainless steel top, sides, front, and rear jacket
- 2 dependent doors with windows per deck
- Stay-cool heavy-duty door handles
- Dual-door seal system
- Porcelain enamel finish interiors
- Coved corners
- Interior oven lights
- 5 plated oven racks with 11-position rack guides per deck
- Digital touchscreen controls
- Digital display shows time and temperature
- Rack mode enables separate cook times for different racks
- Forced cool down fan mode
- Fan has 2 speeds
- Rear-mounted, sheath-type heating elements
- Temperature range: 150-550 degrees F
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 431/2 in. D x 64 in. H
- 45.9 A, 11 kW
- 240 V/60 Hz/1 ph
*Free shipping on Southbend PCE22B/TD-V within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Electric 11kW each, Bakery Depth, Touch Controls, Dependent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE22B/TD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 22 |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1189.00 |
