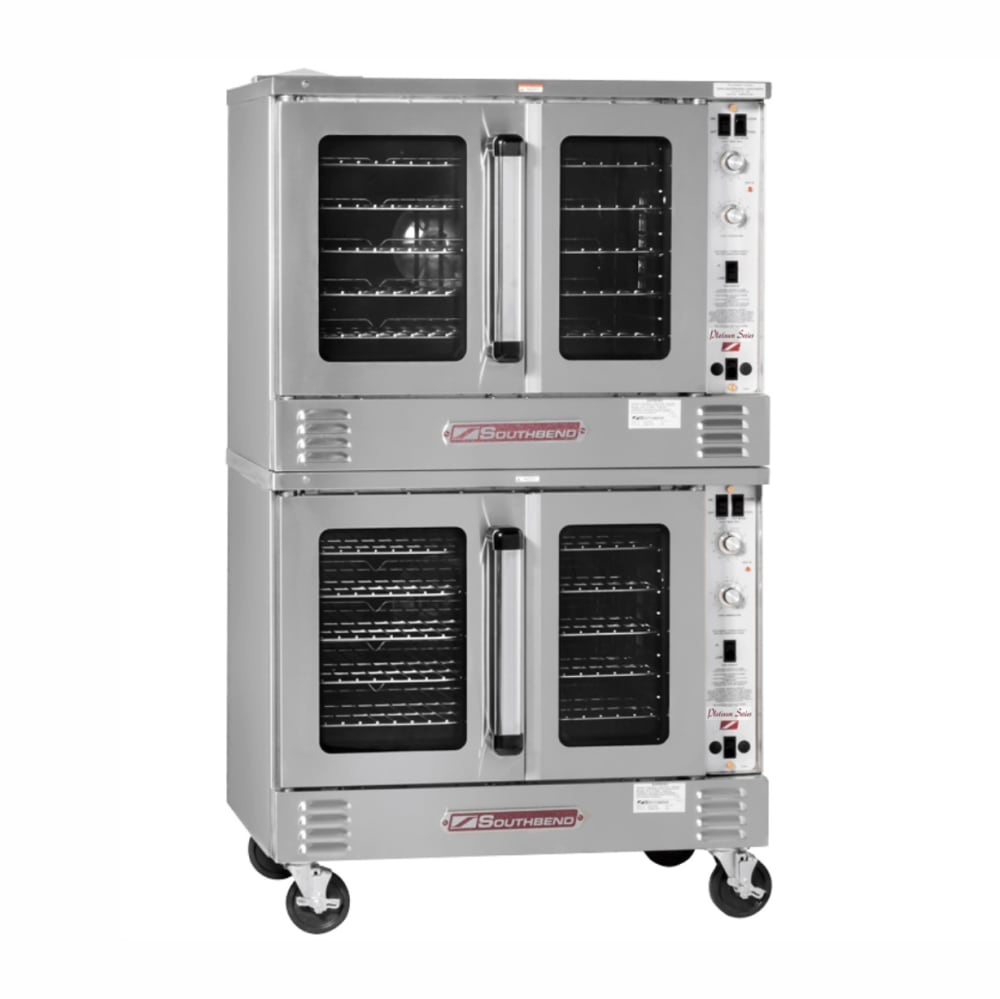

Southbend PCE22B/SD-V Platinum Ventless Bakery Depth Double Full Size Convection Oven - 11kW, 208v/3ph
$18,618.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCE22B/SD-V Description
This Southbend PCE22B/SD-V ventless bakery-depth double full-size oven has an interior size of 29 inches wide by 20 inches high. It’s finished in porcelain enamel—a heat-retentive, insulative material. The stainless steel exterior is dent and break resistant and durable. The coved corners provide a simple-to-clean space that prevents debris and bacteria from becoming trapped in hard-to-reach corners. The unit stays lit with a high-temperature LED lighting system. It holds five plated shelves and 11-position rack guides with 15/8-inch spacing between them per deck.
The control panel of the Southbend PCE22B/SD-V bakery-depth full-size oven is operated with a side-mounted control system. This system is operable between 140 and 500 degrees, which is useful for pastries or meat. The mechanical timer can reach 60 minutes. The panel extends out 17 inches with its patented pull-in, pull-out system for simple maintenance or service as needed.
Product Details
- In the Platinum series
- Ventless configuration
- Electric heat elements
- Stainless steel exterior
- Interior finished in porcelain enamel
- Coved corners
- 5 plated shelves
- Supported with 11-position guide racks
- High-heat lighting system
- 6-in. stainless steel legs
Standard Controls
- Adjustable solid-state thermostat
- Temperature range: 140-500 degrees F
- 60-minute mechanical cook timer
- Extends 17 in. for maintenance
- Controls fan mode, fan speed, and power switches
- Heat-on indicator light
Dimensions & Utilities
- Interior: 29 in. W x 29 in. D x 20 in. H
- Exterior: 38 in. W x 431/2 in. D x 64 in. H
- 30.6 A, 11 kW, 1/2 HP
- 208 V/60 Hz/3 ph

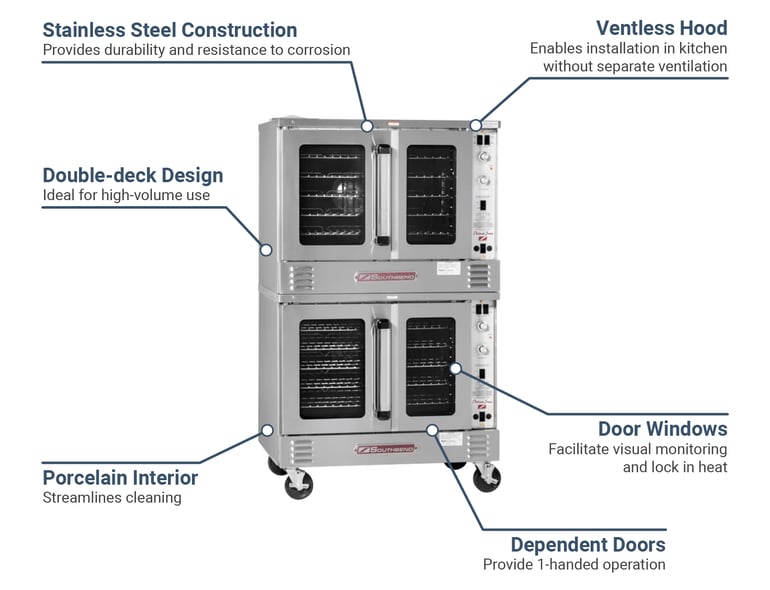

Product Features
*Free shipping on Southbend PCE22B/SD-V within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Electric 11kW each, Bakery Depth, Standard Controls, Dependent Doors, Ventless
*Image may not depict product color, inclusions or accessories.
Southbend PCE22B/SD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 22 |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1189.00 |
