Southbend HDG-18 18" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas
$4,356.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend HDG-18 Description
Measuring 18 inches wide, the Southbend HDG-18 commercial griddle has one 30,000-BTU burner, which operators can select the temperature of by turning the control knob. When users change the heat level, the thermostat senses the change and adjusts the burner heat to reach and maintain the set level. Eliminating hot spots, the unit has an even heat pattern and operates between 200 and 400 degrees Fahrenheit. Because the polished rolled steel griddle plate is 1 inch thick, it retains heat and will not warp over time, while splash guards on the sides and rear contain splatter, keeping food particles off other surfaces. Its stainless and aluminized steel construction provides strength and corrosion resistance.
Product Details
- Polished, 1-in.-thick rolled steel plate resists warping and retains heat
- 5-in. rear and 4-in. side splash panels help prevent splatter onto other surfaces
- Heat pattern evenly warms the griddle surface without cold spots
- 1 U-shaped burner
- Thermostatic control system
- Temperature range: 200-400 degrees F
- Embedded, load-sensing thermostat maintains the set temperature by automatically adjusting the burner level
- Reinforced, double-wall sides are insulated to retain heat
- Stainless steel front, sides, and vent
- Aluminized steel rear and bottom panels
- 30,000 total BTU
- Requires 12-in. side clearances and 8-in. rear clearance from combustible surfaces
Dimensions & Utilities
- Griddle surface: 18 in. W x 24 in. D
- Overall: 18 in. W x 31.75 in. D x 19 in. H
- Uses natural gas
- 3⁄4-in. rear gas connection
*Free shipping on Southbend HDG-18 within the 48 contiguous states.
From The Manufacturer
Griddle, countertop, natural gas, 18" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 30,000 BTU, CSA, NSF

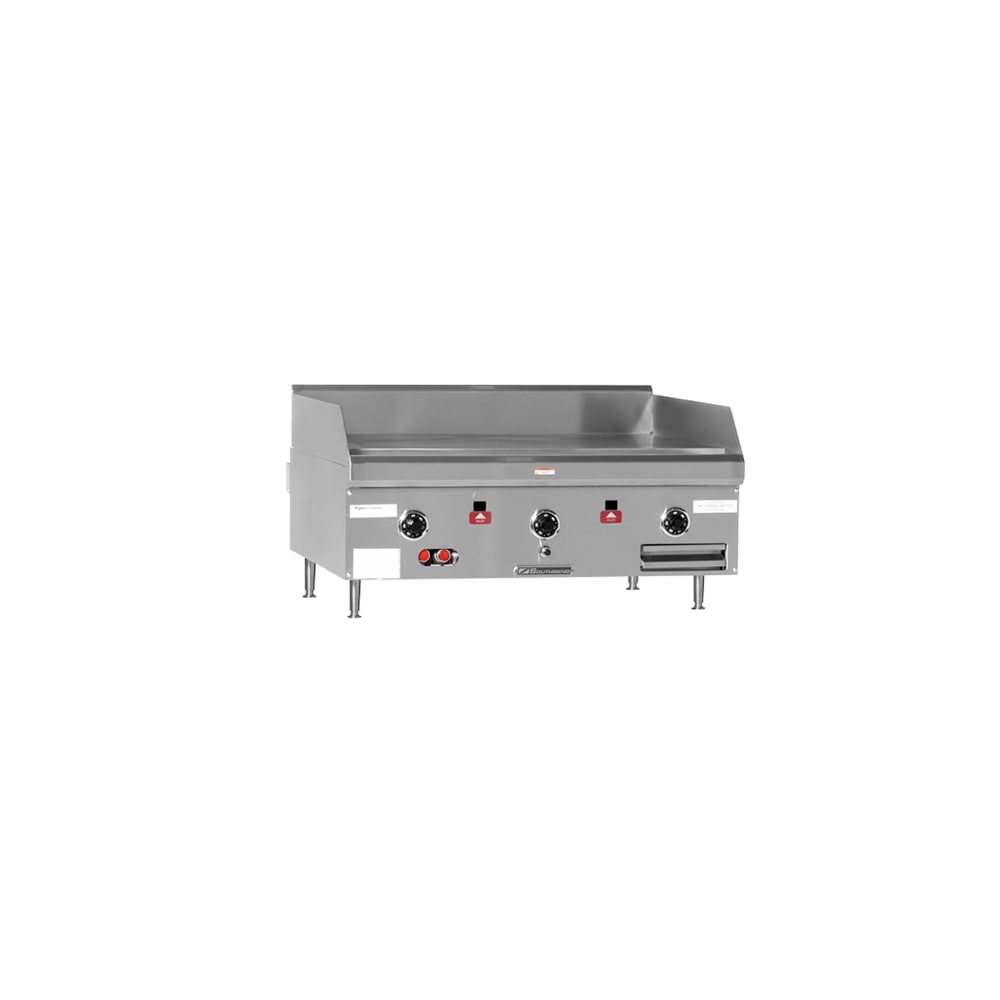

*Not as Shown - 1 Control
Southbend HDG-18 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Application | Medium Duty |
| BTU / Burner | 30,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 18 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 18 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 18 |
| Weight | 270.00 |
