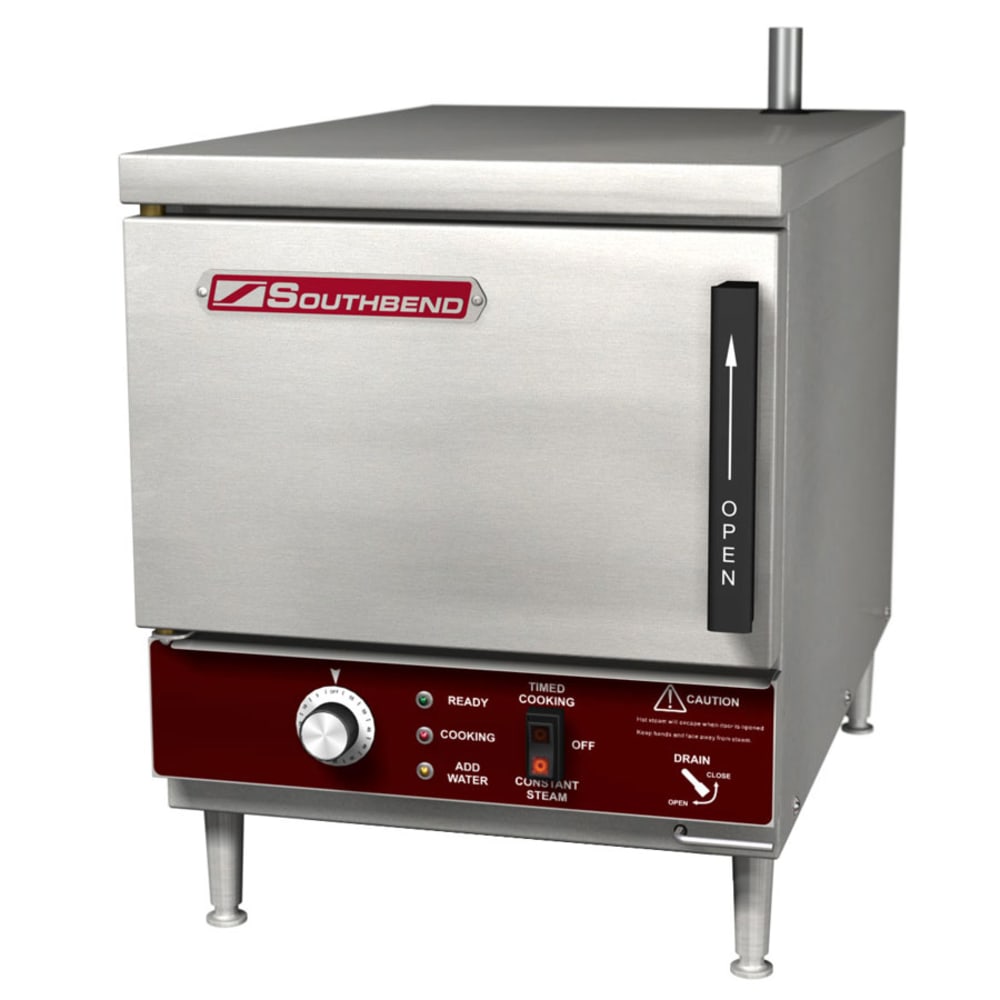

Southbend EZ18-5 Electric Countertop Steamer w/ (5) Full Size Pan Capacity, 480v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 348-EZ1854803 • MPN: EZ18-5 4803
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $6,092.00

Selected Voltage: 480V, 3 Phase

Image may not depict product color, inclusions or accessories.

Southbend EZ18-5 Description


With the Southbend EZ18-5 4803 countertop convection steamer, the production of steam is electrically-heated and no boiler is used. The entire exterior of the steamer is constructed of 304 stainless steel, while the interior cooking chamber is one piece welded 316 stainless steel. There are stainless steel pan supports and a steam diffuser plate that keeps debris from getting into the water of the steamer. The door to the chamber has an inner liner with a full perimeter gasket and an outer liner made from stainless steel. To keep steam inside while the chamber is closed, the door is equipped with a positive lock and seal mechanism with a spring release.

Cooking with the Southbend EZ18-5 4803 countertop convection steamer is straightforward because of all the helpful controls on the removable panel. A cooking indicator light lets you know your food is still cooking. A ready indicator light lets you know your dish is done cooking. You no longer have to manually check the water reservoir to see if it needs to be refilled due to an indicator light that illuminates when water needs to be refilled. You can choose how to cook your dishes with the power switch that can be set on timed cooking, constant steam, or off. When you cook with this steamer, food cannot burn, dry out, or transfer flavor from one dish to another.

Product Details

  • Electrically heated steam
  • No boiler used
  • No plumbing is required
  • Food does not burn or dry out and experiences little shrinkage
  • Products do not transfer flavors while cooking in the chamber together
  • Designed for low- to medium-volume cooking
  • Removable steam diffuser plate catches debris to prevent it from falling into the water
  • Spring-release door with a positive lock and seal mechanism keeps the door closed during the cooking cycle
  • Door interlock switch shuts off the creation of steam when the door is opened and resumes when the door is shut
  • 480 V/60 Hz/3 ph, 15 kW, 18 A
  • Overall Dimensions: 18.12 in. W x 29 in. D x 29.5 in. H
  • CSA Listed; NSF Certified

Durable Construction

  • 304 stainless steel exterior is durable
  • 1-piece welded 316 stainless steel cooking chamber with coved corners that make cleaning simple
  • Heavy-gauge stainless steel door with a full perimeter gasket keep heat inside the chamber
  • Stainless steel pan supports are adjustable
  • 4-in. legs are adjustable

Control Housing

  • Stainless steel control housing with a removable full access panel
  • Low water light lets user know water needs to be refilled
  • 60-min. electric timer with an alarm that sounds at the end of the cooking cycle
  • Cooking light lets the user know food is in the process of cooking
  • Ready light lets the user know the food is finished cooking
  • Power switch allows you to choose between timed cooking, constant steam, and off

Pan Capacity

  • Holds 10 pans 1 in. deep
  • Holds 5 pans 212 in. deep
  • Holds 3 pans 4 in. deep
  • Holds 2 pans 6 in. deep

EZ Steam Convection Steamer, electric, countertop, boilerless, (1) compartment, (5) 12 x 20 pan capacity, manual fill & drain operation, electromechanical controls, stainless steel interior & exterior, 4" adjustable legs, 15.0 kW, CSF, NSF, 480v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Southbend EZ18-5 Specifications

PDF Spec Sheet
Manufacturer Southbend
Application High Volume
Controls Manual
Heat Electric
Steam Generator Boilerless
Width (in) 18
Depth (in) 29
Height (in) 29.5
Pan Capacity 5
KW 15kw
Warranty 1 year limited parts & labor
Hertz 60
Voltage 480
Phase 3
Product Type Countertop Cooking Equipment
Product Countertop Steamer
Weight 183.00
Southbend EZ18-5 Certifications
  • NSF
