Southbend 4601DD-4TR 60" 2-Burner Gas Range with Griddle, LP

KaTom #: 348-4601DD4TRLP • MPN: 4601DD-4TR LP

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $16,751.00
$9,213.05 / Each

Southbend 4601DD-4TR Description

Southbend's 4601DD-4TR LP restaurant range is built to accommodate several methods of cooking. The 60-inch cooktop includes two burners that each generate 24,000 BTU of heat for pan frying, simmering, and sautéing. To the right of the burners is a 48-inch griddle with and extra-thick one-inch griddle plate designed to achieve an even temperature gradient across the surface of the griddle. Its thermostatic controls allow users to dial in the precise temperature they want, making the griddle easy to operate. Two standard ovens form the base of the equipment, which each accept full-size pans front-to-back and side-to-side.

Product Details

  • Cooktop with (2) 24,000 BTU non-clog burners
  • Cast iron burners and burner grates heat evenly and are virtually indestructible
  • Stainless steel front and side construction means range can be easily be wiped down with a clean cloth
  • Manual gas shutoff valve is located on the front of the range to quickly cut gas supply to the entire range
  • Removable drip tray underneath burners makes range easy to keep clean of grease and debris
  • 4-in. stainless steel front rail provides a landing for plates and cookware while helping protect cooks from the heat of the burners
  • Burners are lit by a standing pilot flame
  • 6-in. stainless steel legs allow range to be leveled on uneven floors
  • 2212-in. flue riser with a heavy duty shelf for holding supplies is included standard
  • CE, cCSAus, CSA-Gas, and CSA-Design Listed; NSF Certified

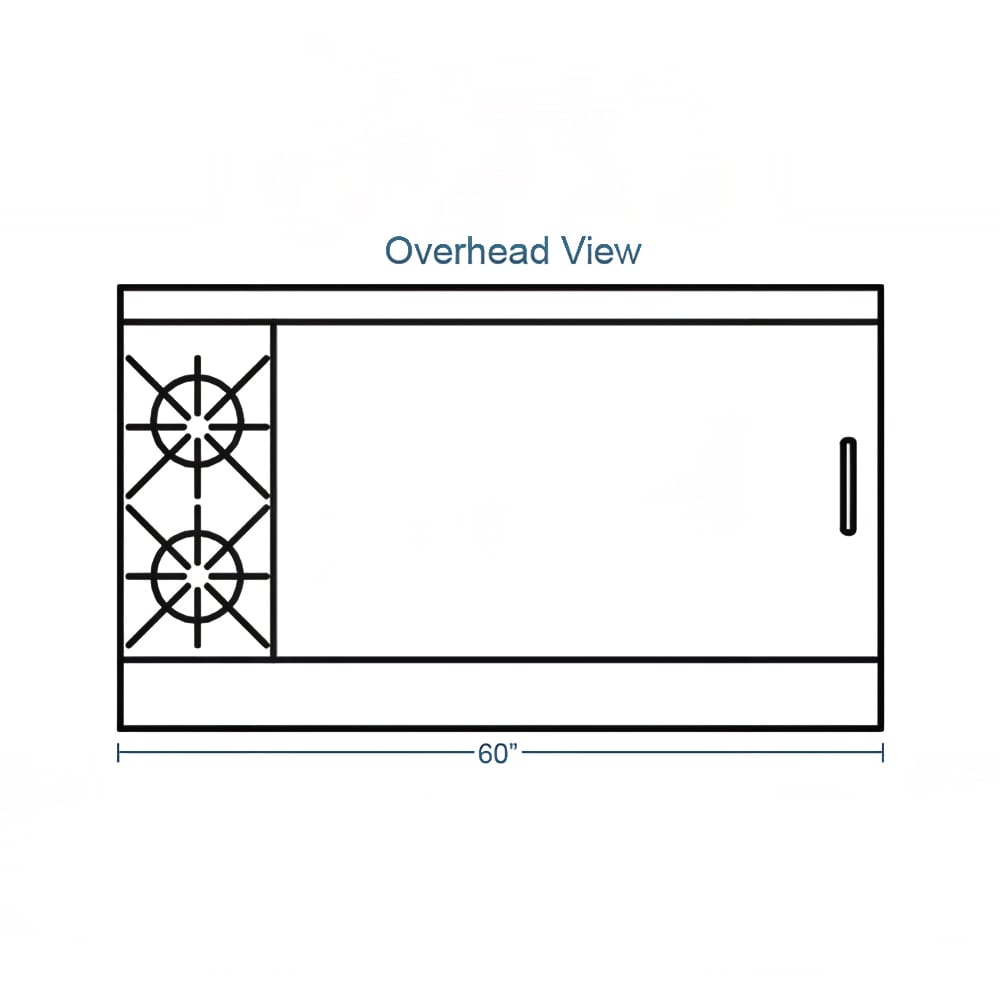

  • Overall Dimensions: 6034 in. W x 34 in. D x 5912 in. H

Thermostatically-Controlled 48-Inch Griddle

  • 1 in. thick griddle plate heats evenly and retains heat well for quick recovery
  • Smooth, polished surface resists sticking and makes griddle easy to clean
  • Thermostatic controls give operators control over precise temperatures of griddle surface

Double Standard Oven Base

  • 40,000 BTU burner in each oven is lit with fuel-saving battery spark ignition
  • Porcelain enamel coating and coved corners spread heat evenly for an even bake
  • Ovens accommodate full-size sheet pans in both directions
  • 2 racks included, adjustable on 2 positions in each oven
  • Counterweighted, spring-assisted door for smooth operation and a long oven life

Ultimate Restaurant Range, LP gas, 60", (2) non-clog burners, standard grates, (1) 48" griddle right, thermostatic controls, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 236,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Southbend 4601DD-4TR Specifications

PDF Spec Sheet
Manufacturer Southbend
Application Restaurant
Base Standard Oven
BTU / Burner 33000
Gas Type LP
Heat Gas
Range Configuration Burners
Range Configuration Griddle
Width (in) 60"
Warranty Standard 1 Year
Warranty 1 year limited parts and labor
Weight 1075.00
Southbend 4601DD-4TR Certifications
  • NSF
