Southbend 4601DD-2GL 60" 6-Burner Gas Range with Griddle, NG

KaTom #: 348-4601DD2GLNG • MPN: 4601DD-2GL NG

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $10,203.00
$5,611.65 / Each

Southbend 4601DD-2GL Description

Part of Southbend's Ultimate Restaurant Range series, the 4601DD-2GL NG range combines three essential methods of cooking to create one highly-versatile piece of restaurant equipment. The 60-inch cook top consists of six 33,000 BTU open burners with cast iron grates and a 24-inch griddle with a 12-inch thick griddle plate that heats quickly and evenly. The restaurant range's two standard ovens each come with their own oven rack, which are each adjustable on two positions. The ovens also each accommodate full size sheet pans in both directions.

Product Details

  • Range's front and sides are made with corrosion-resistant stainless steel, so it can easily be wiped clean with a damp cloth
  • 6 clog-free, 33,000 BTU cast iron burners with cast iron grates
  • Top burners are ignited with a standing pilot flame
  • Removable drip trays underneath burners catch grease and crumbs so range can be easily cleaned and sanitized
  • Included 2212-in. flue riser is built with a stainless steel shelf that can be used to hold important ingredients and supplies
  • Cook top is located at an ergonomic 37-in. working height for user comfort
  • Stainless steel, 4-in. wide front shelf helps protect operators from touching hot parts of the range
  • A gas shutoff valve is located on the right of the main control panel, giving operators quick access to shut off the gas supply to the entire range
  • A gas pressure regulator is factory-installed to ensure safety and consistent operation
  • Rugged, 6-in. adjustable legs allow the range to be installed level on uneven floors
  • Runs on natural gas

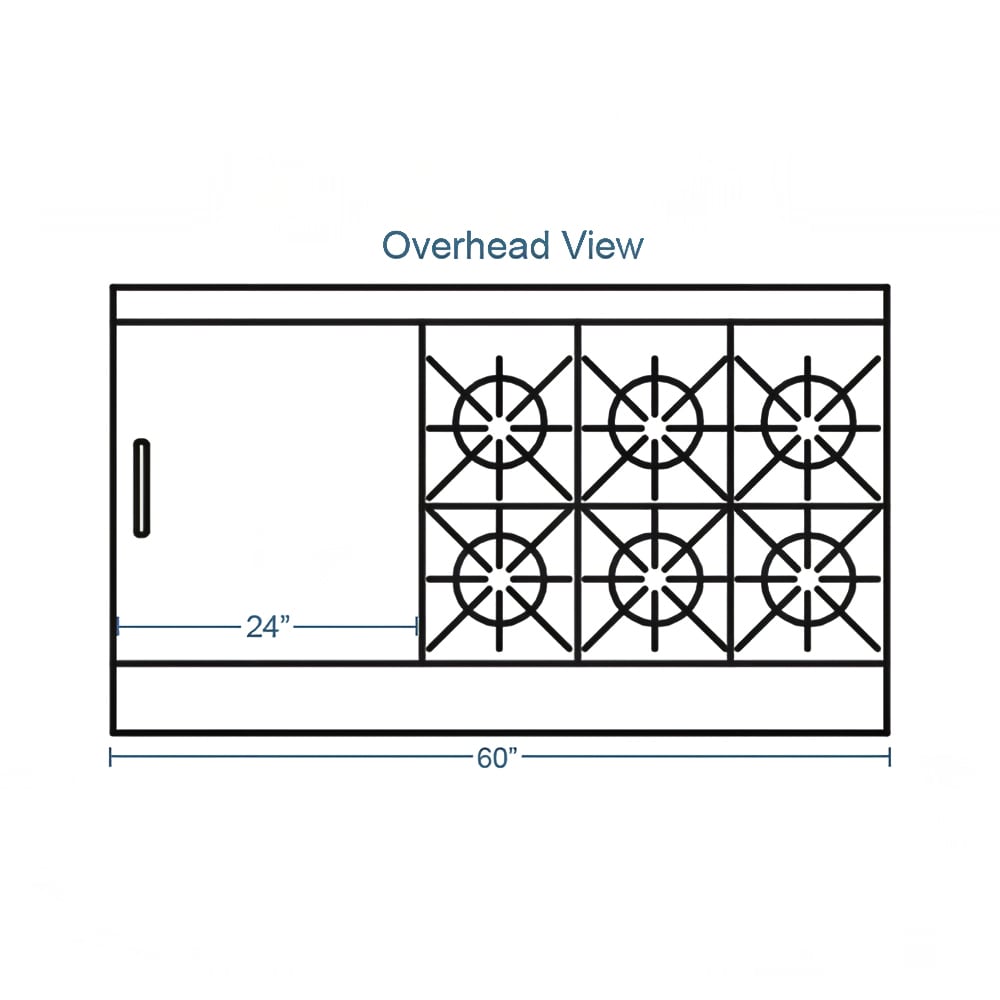

  • Overall Dimensions: 6034 in. W x 34 in. D x 5912 in. H
  • cCSAus, CSA-Gas, CSA-Design, and CE Listed; NSF Certified

Double Standard Oven Base

  • Thermostatic controls with temperature range of 175-550 degrees F
  • Oven interiors are coated in porcelain enamel, making them easy to wipe clean
  • Each oven interior measures 26 in. W x 2612 in. D x 14 in. H
  • Oven compartments each accommodate a full-size sheet pan both front-to-back and side-to-side
  • 45,000 BTU burner in each oven
  • Oven burners are lit by a battery spark ignition, eliminating the need for a standing pilot flame
  • Each oven includes 1 rack, each of which is adjustable on 1 positions
  • Doors are spring-assisted and counterweighted for ease of use and operator comfort

24-Inch Manually-Controlled Griddle

  • Griddle plate is 12 in. thick for even heating and quick temperature recovery
  • Polished steel makes griddle easy to clean and less likely to cause products to stick
  • Raised sides help contain grease for simple cleaning and griddle maintenance
  • Manual controls give cooks direct control over griddle heat intensity
  • Griddle is locate to the left of the restaurant range top burners

Ultimate Restaurant Range, NG gas, 60", (6) non-clog burners, standard grates, (1) 24" griddle left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 336,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Southbend 4601DD-2GL Specifications

PDF Spec Sheet
Manufacturer Southbend
Application Restaurant
Base Standard Oven
BTU / Burner 33000
Gas Type NG
Heat Gas
Range Configuration Burners
Range Configuration Griddle
Width (in) 60"
Warranty Standard 1 Year
Warranty 1 year limited parts and labor
Weight 1075.00
Southbend 4601DD-2GL Certifications
  • NSF
