Southbend 4601AA-2GL 60" 6 Burner Gas Range w/ Griddle & (2) Convection Ovens, Natural Gas
$18,001.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend 4601AA-2GL Description
The Southbend 4601AA-2GL NG Ultimate Restaurant range is equipped with six non-clog burners, a 24-inch wide griddle, and two convection ovens. The 33,000 BTU range top burners are non-clogging and are made from cast iron. Removable, cast iron grates sit over the burners and help distribute the heat evenly. The griddle is made from polished steel that is 1⁄2 of an inch thick.
The range's two 45,000 BTU ovens each have a standing pilot and a thermostat range of 175 to 550 degrees Fahrenheit. Full-sized pans will fit in the ovens both ways, and each oven has one rack with two position guides. The cavity is fully coated with porcelain enamel, a material that resists corrosion and makes cleaning easier. The corners are coved so cleaning debris out is much easier than if they were square corners. Cleaning under the unit is simple since the legs are stainless steel, 6-inches tall, and adjustable. The Southbend 4601AA-2GL NG Ultimate Restaurant range is heated by natural gas.
Product Details
- Heated by natural gas

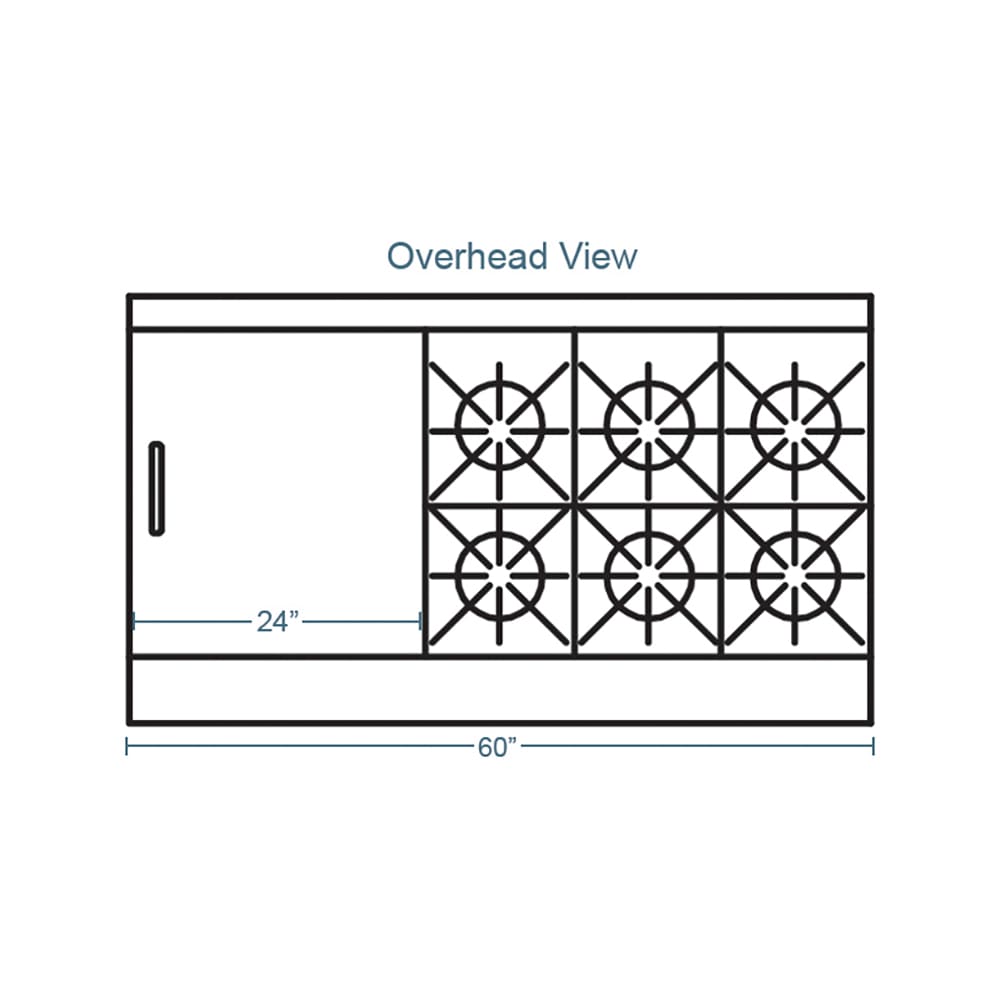

- 24-in. griddle is located on the left side of the range
- 4-in. stainless steel front rail protects from burns and plates can sit on it while food is being plated
- Manual gas shut-off to the whole unit is on the front
- Pressure regulator is factory installed
- 6 non-clog 33,000 BTU burners
- Standing pilot for open burners
- 2 removable drip trays sit under the burners to collect grease so cleaning is easier
- Cast iron grate tops are removable and help evenly distribute heat
- 2 convection, 45,000 BTU ovens with standing pilot
- Ovens are battery spark ignited
- 175-550 degrees F thermostat range
- 221⁄2-in. flue riser with a single shelf
- Porcelain enamel oven makes cleaning simpler and resists corrosion
- Corners are coved to make cleaning debris out easier
- Full size pans will fit both ways in the ovens
- 1 rack with 2 position side rails per oven
- 6-in. adjustable, stainless steel legs
- Front, sides, and shelf are stainless steel
- Interior Dimensions: 26 in. W x 24 in. D x 14 in. H
- Overall Dimensions: 60.75 in. W x 42.13 in. D x 29.75 in. H
Product Features
*Free shipping on Southbend 4601AA-2GL within the 48 contiguous states.
From The Manufacturer
Ultimate Restaurant Range, natural gas, 60", (6) non-clog burners, standard grates, (1) 24" griddle left, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 310,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Southbend 4601AA-2GL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Convection Oven |
| BTU / Burner | 33000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Convection Oven BTU/hr | 32000 |
| Convection Oven Dimensions | 26"W x 24"D x 14"H |
| Depth (in) | 43.6 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Griddle Location | Left |
| Griddle Width (in) | 24 |
| Heat | Gas/Electric |
| Height (in) | 59.5 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 33000 |
| Phase | 1 |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 5 |
| Racks per Convection Oven | 3 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Total BTU | 310000 |
| Vent | Backriser w/ hi-shelf |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
