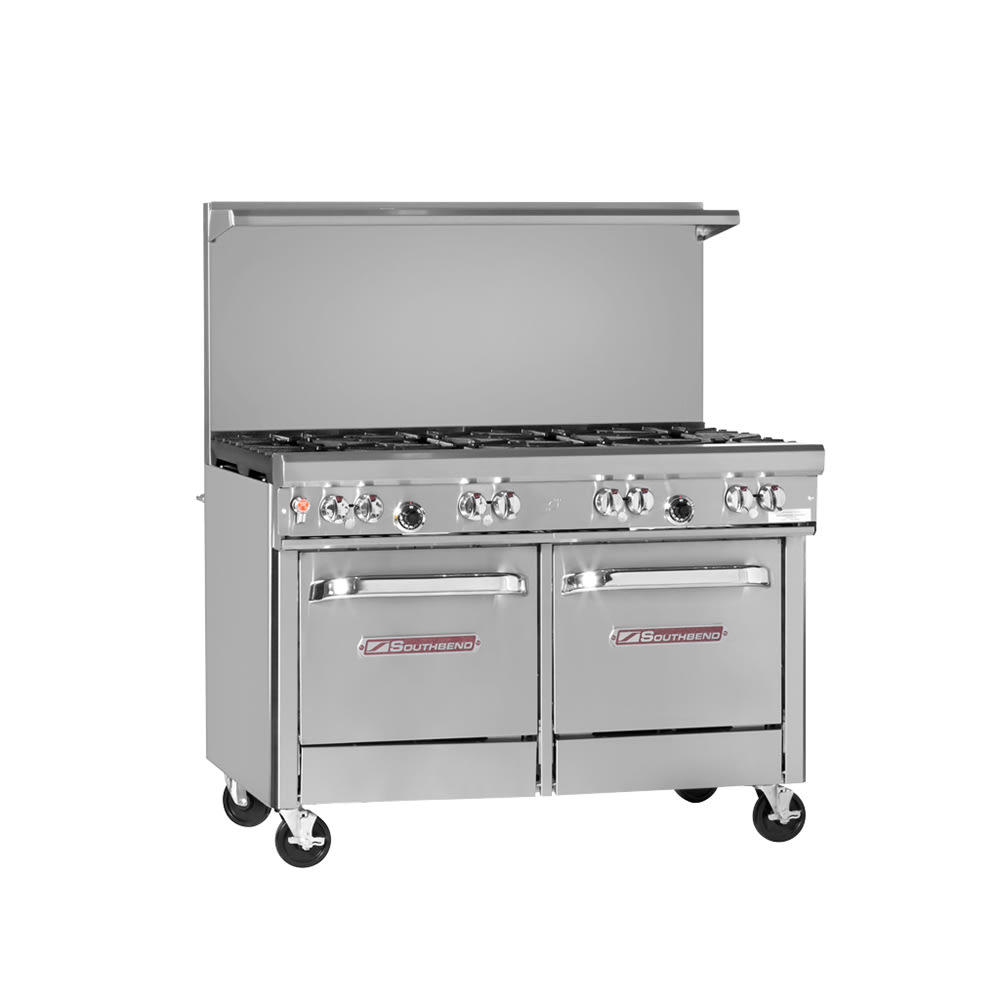

Southbend 4481EE-5R 48" 7 Burner Gas Range w/ (2) Space Saver Oven, Liquid Propane
$10,683.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend 4481EE-5R Description
The Southbend 4481EE-5R restaurant range has seven total burners with five standard non-clog burners and two high-output burners. Because the higher-BTU burners have a three-piece design, they simplify cleaning. All burners have a standing pilot, and grates sit over them to accommodate cookware. For enhanced cleaning, the grates are made of cast iron and can be removed, and the rear grates are large enough to hold 14-inch-diameter stockpots.
The base in the Southbend 4481EE-5R commercial gas range has two space-saver ovens, each with a cavity that is 19.5 inches wide by 26.5 inches deep and enameled with porcelain. With this nonstick construction, the interiors are corrosion resistant and simple to clean, and because the corners in the ovens are coved, they encourage heat to move and eliminate debris-trapping crevices.
Product Details
- (3) 24,000-BTU non-clog front right burners
- (2) 31,000-BTU high-output Pyromax back right burners
- (2) 24,000-BTU non-clog left burners
- Standing pilot for open burners
- 4 removable cast iron grates
- Rear grates accommodate 14-in. stockpots
- (2) 1-piece, removable trays under the burners catch drippings
- 4-in. stainless steel front rail
- 22.5-in. flue riser directs heat to the hood ventilation system
- Stainless steel high shelf on the riser can hold small equipment
- Stainless steel front and side construction
- 6-in., adjustable stainless steel legs
- 262,000 total BTU
2 Space-saver Ovens
- Temperature range: 175-550 degrees F
- Double-sided, porcelain-enameled chambers are protected against food buildup and corrosion
- Coved corners improve airflow to eliminate hot and cold spots
- 1 rack with 2-position slide rails
- Spring-assisted counterweight doors
- Standing pilots
- 40,000 BTU per oven
Dimensions & Utilities
- Oven interiors: 19.5 in. W x 26.5 in. D x 14 in. H
- Overall: 48.63 in. W x 34 in. D x 59.5 in. H
- LP gas powered
- 3⁄4-in. gas connection
*Free shipping on Southbend 4481EE-5R within the 48 contiguous states.
From The Manufacturer
Ultimate Restaurant Range, liquid propane gas, 48", (3) non-clog burners front right, (2) pyromax burners back right, (2) non-clog burners left, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 335,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Southbend 4481EE-5R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Space Saver Oven |
| BTU / Burner | 31000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open/Pyromax |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 7 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 24000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Space Saver Oven | 2 |
| Racks per Space Saver Oven | 1 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners |
| Rating | Better |
| Series | Ultimate |
| Space Saver Oven BTU/hr | 45000 |
| Space Saver Oven Dimensions | 19-1/2"W x 26-1/2"D x 14"H |
| Special Features | Spark Ignition |
| Total BTU | 335000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 735.00 |
