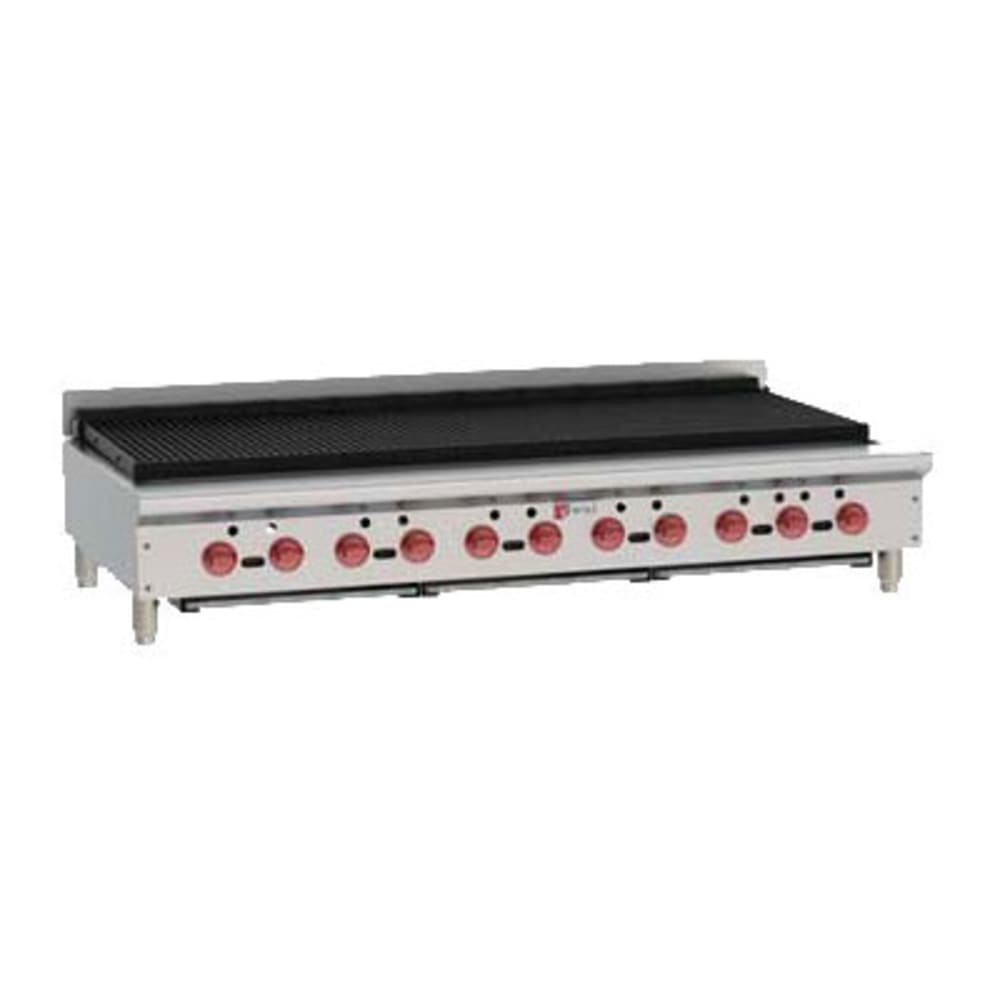

Wolf ACB60 62.13" Gas Charbroiler w/ (11) Burners & Cast Iron Grates - Manual, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 290-ACB60NG • MPN: ACB60 NG
Ships Free

Typically ships within 1 - 3 business days

Price: $6,340.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Wolf ACB60 Description


The Wolf ACB60 gas charbroiler has an all-welded frame that makes the whole unit more durable and stable. The stainless steel construction makes the charbroiler heavy-duty for long-term use and resistant to damage. Heat is pushed upward by the heat deflector tray system to create a cool zone in the grease drawer to help make cleaning easier. There is a high range infinite-heat control valve that controls each burner, with adjustment marks for each valve on the front panel to make operation simple. The standing pilot ignition system makes lighting the pilot lights easy. For each 514-inch-wide, cast iron diamond broiler grate, there is one 17,000-BTU burner. The Wolf ACB60 gas charbroiler has cast-iron char-radiants that are heavy duty. A ventilation system must be implemented in order to use this unit.

Product Details

  • Heated by natural gas
  • 11 burners
  • 2 drip trays
  • 17,000-BTU burner for each broiler grate
  • Standing pilot ignition system makes startup simple
  • Each burner has a high range infinite-heat control valve
  • Heat deflector tray system reflects heat upward so the grease drawer is a cool zone, making cleaning easier
  • Supercharger burner dividers reduce the transfer of heat so multi-zone cooking capability is increased
  • Ventilation is required when using this unit
  • 34-in. rear gas connection and gas pressure regulator
  • Uses a total of 187,000 BTUs
  • Overall Dimensions: 62.1 in. W x 31 in. D x 15.3 in. H
  • CSA listed; NSF certified

Cabinet Construction

  • 514-in.-wide, cast iron diamond grates
  • All-welded frame makes the unit sturdier
  • Grease trough, top trim, control panel, sides, and backsplash are stainless steel for durability and damage resistance
  • Valve has adjustment marks on the front panel so setting up is easy
  • 4-in. adjustable legs allow for easy cleaning underneath

Achiever Charbroiler, 62-1/8" W, countertop, (11) cast iron 17,000 BTU burners with standing pilots and cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, manual gas valve controls, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4" adjustable legs, 187,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Wolf ACB60 Specifications

PDF Spec Sheet
Manufacturer Wolf
Total BTU 187,000
Burners 11
Cooking Surface Cast Iron
Function Heavy Duty
Gas Type NG
Heat Gas
Height (in) 15.30
Type Charbroiler
Width (in) 62.13
Product Type Countertop Cooking Equipment
Product Charbroiler
Weight 500.00
Wolf ACB60 Certifications
  • NSF
