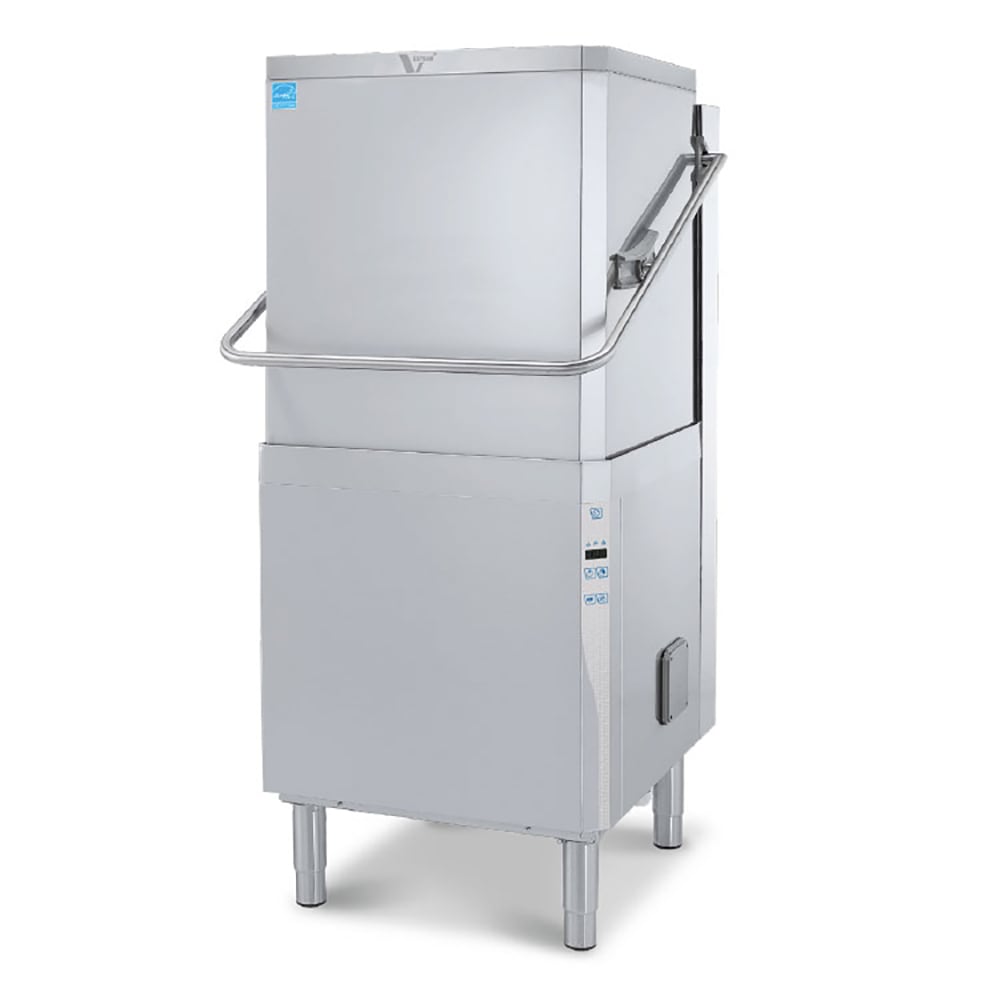

Veetsan Star VDH63 High Temp Door Type Dishwasher w/ 63 Racks/hr Capacity, Built-in Booster, 208v/1ph

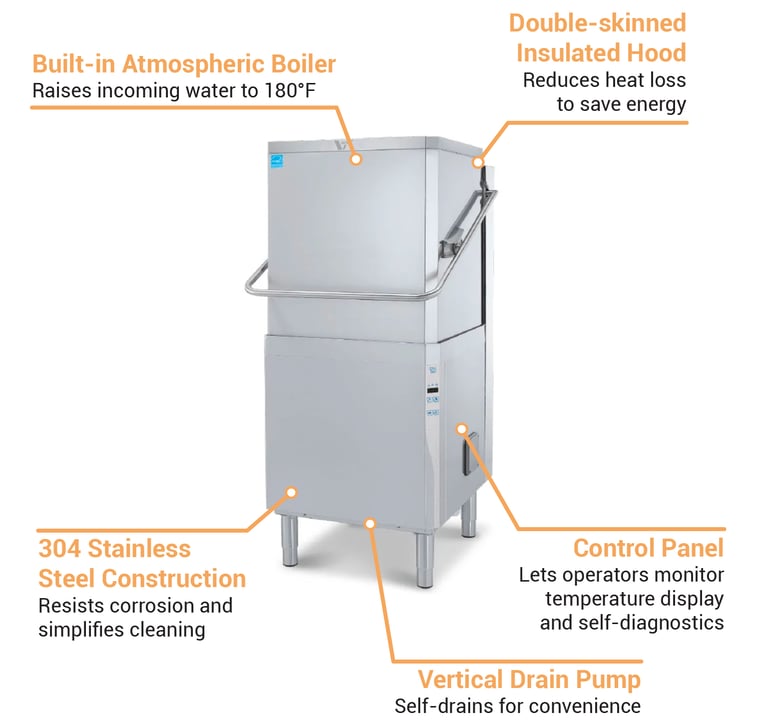

Because the Veetsan Star 504294 (VDH63) door-type dishwasher can wash 63 racks or 1,134 dishes per hour, it suits medium-sized restaurants. This hot-water sanitization system includes an atmospheric booster that eliminates the need for an external booster because it raises incoming water to 180 degrees Fahrenheit for safe rinsing. For efficient cleaning, its inclined ceiling and wash arms prevent detergent-based water drops from dripping onto clean dinnerware after rinsing, while its detergent and rinse aid pumps feature automatic initial and continuous cycle loading to minimize operational oversight. Its wash tank fills automatically, and its vertical wash pump self-drains for convenience. To maintain a clean interior, it self-cleans automatically. Operators can manage temperature and monitor self-diagnostics with its control panel.

To withstand daily use and facilitate cleaning, this Veetsan Star 504294 (VDH63) commercial door-type dishwasher is constructed of 304 stainless steel—a durable, corrosion-resistant metal. Its deep-drawn stainless steel tank features rounded corners that can be wiped clean, and its stainless steel upper and lower wash and rinse arms are interchangeable and removable for cleaning. Its hood-type design can open 17⁵⁄₁₆ inches to accommodate baking pans and large pots, and to preserve heat and save energy, its hood is double-skin insulated. Field convertible as a corner or straight-thru configuration, this unit measures 29⁵⁄₈ inches wide by 29³⁄₄ inches deep by 61¹¹⁄₁₆ inches high.

Product Details

• Door-type unit
• Can be field converted from corner to straight-thru configuration
• Cleans 63 racks or 1,134 dishes per hour when incoming water is 122 degrees F
• Uses 0.53 gal. of hot water per rack
• 57-150-second duration cycle
• 3.17-gal. atmospheric boiler
• Rinse aid and detergent dispenser
• Automatic initial and continuous cycle loading
• Control panel with temperature display and self-diagnostics
• Automatic self-cleaning cycle
• Rust- and corrosion-resistant 304 stainless steel construction
• Deep-drawn stainless steel tank with round corners
• Insulated double-skin hood
• Inclined wash arms and ceiling
• Interchangeable stainless steel upper and lower wash/rinse arms
• Removable stainless steel tank filter
• Wash tank fills automatically
• Automatic self-cleaning cycle
• Vertical self-draining wash pump
• Door can open 17⁵⁄₁₆ in.
• Noise level: less than 63 dBA
• Minimum wash temperature: 160 degrees F
• Minimum rinse temperature: 180 degrees F
• Required water supply temperature: 50-122 degrees F
• Required inlet water supply pressure: 7-102 PSI

Dimensions & Utilities

• 29⁵⁄₈ in. W x 29³⁄₄ in. D x 61¹¹⁄₁₆ in. H
• 50 A, 9.9 kW, 1.1 HP
• 208 V/60 Hz/1 ph
• ³⁄₄-in. incoming water line

Product Features

*Free shipping on Veetsan Star VDH63 within the 48 contiguous states.

From The Manufacturer

(VDH63) Dishwasher, hood type, 63 racks/hour, hot water sanitizing with built-in booster heater, field convert corner/straight thru, 304 stainless steel frame, wash tank, booster tank & side panels, detergent & rinse aid pumps, 208v/60/1-ph, 9.9 kW heat, 1.1 HP, CE. cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Veetsan Star VDH63 Specifications

Documents

Spec Sheet

Warranty

Manual
