Amerikooler QF061277**FBSM 6' x 12' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

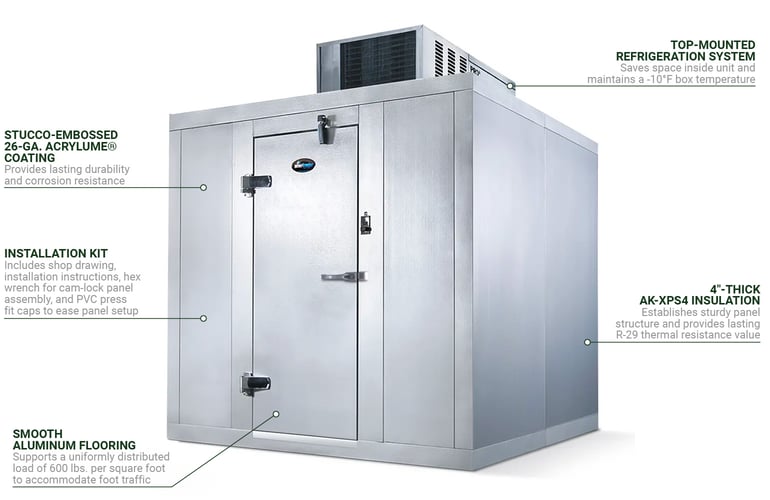

The Amerikooler QF061277**FBSM quick-ship indoor walk-in freezer provides a dedicated storage space for frozen products. This 11-foot-9¹⁄₄-inch-wide by 5-foot-10⁵⁄₈-inch-deep by 7-foot-7-inch-tall unit is equipped with modular tongue-and-groove wall, ceiling, and floor panels that can be attached with the corrosion-resistant cam-action locking system. To minimize temperature fluctuations, the compression gaskets can create an airtight seal, and to provide an R-32 thermal resistance value and establish a rigid structure, each panel is built with 4-inch-thick AK-XPS4 insulation. While the wall and ceiling panels' interiors and exteriors are laminated with a stucco-embossed, corrosion-resistant Acrylume® protective coating, the floor panels are finished with smooth aluminum.

The hinged, self-closing 76-inch-tall entrance door enables staff to enter and exit the freezer with ease, and to ensure it opens and closes smoothly, operators can adjust the super cam-rise spring-assisted hinges. The three-sided magnetic gasket, door closer, and temperature-controlled heater wire create a frost-free, secure seal. A heated pressure relief vent above the door jamb regulates the unit's interior pressure and removes warm air as the door is opened. Inside the unit, an LED light above the door jamb illuminates the storage space so users have full visibility, and a digital thermometer provides temperature readouts. The flooring can accommodate an evenly distributed load of 600 pounds—enough for regular foot traffic. After business hours, the deadbolt keyed handle latch can be locked, and in the event an employee becomes locked inside the unit, they can safely exit using the inside release mechanism.

The Amerikooler QF061277**FBSM walk-in freezer includes the Heatcraft Bohn PT0069LBNEMSA PRO³ self-contained refrigeration system, which can produce an interior temperature of -10 degrees Fahrenheit. By combining the mechanisms of a unit cooler and condensing unit, it's simple to install and reduces required refrigerant charge. For efficiency, it's built with microchannel coil technology, a two-speed electronically commutated (EC) evaporator fan motor, and electric defrost. To save space inside the unit, this 55-inch-wide by 49¹⁄₂-inch-deep by 32²⁄₅-inch-tall painted steel unit is designed to be mounted on top of the box in environments no hotter than 90 degrees Fahrenheit, maximizing efficiency.

Product Details

• For indoor use
• Quick-ship configuration
• Hardware and installation instruction kit includes shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps to ease setup
• Modular floor, wall, and ceiling panels with tongue-and-groove designs
• Cam-action locking system and compression gaskets
• 4-in.-thick AK-XPS4 rigid foam insulation built into panels
• Insulation provides R-32 thermal resistance
• Wall and ceiling panels' interiors and exteriors laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
• Smooth aluminum floor finish
• Floor accommodates an evenly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Inside safety release mechanism
• LED light above door jamb
• Safety pilot light switch
• Digital thermometer featuring LED temperature readout
• Heated pressure relief vent above door jamb
• Temperature-controlled heater wire built into door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn PT0069LBNEMSA top-mounted refrigeration unit
• Operates as a unit cooler and condensing unit
• R-448A refrigerant
• Generates and maintains -10-degree-F box temperature
• Maximum ambient temperature: 90 degrees F
• Ships fully assembled, evacuated, charged, run tested, and wired
• Microchannel coil technology
• 2-speed EC evaporator fan motor

Dimensions & Utilities

• Refrigeration system: 55 in. W x 49¹⁄₂ in. D x 32²⁄₅ in. H
• Walk-in freezer: 11 ft. 9¹⁄₄ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 16.74 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF061277**FBSM within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 5'-10 5/8" W x 11'-9 1/4" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, indoor refrigeration, PT0069LBNEMSA, sized at 90°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal
