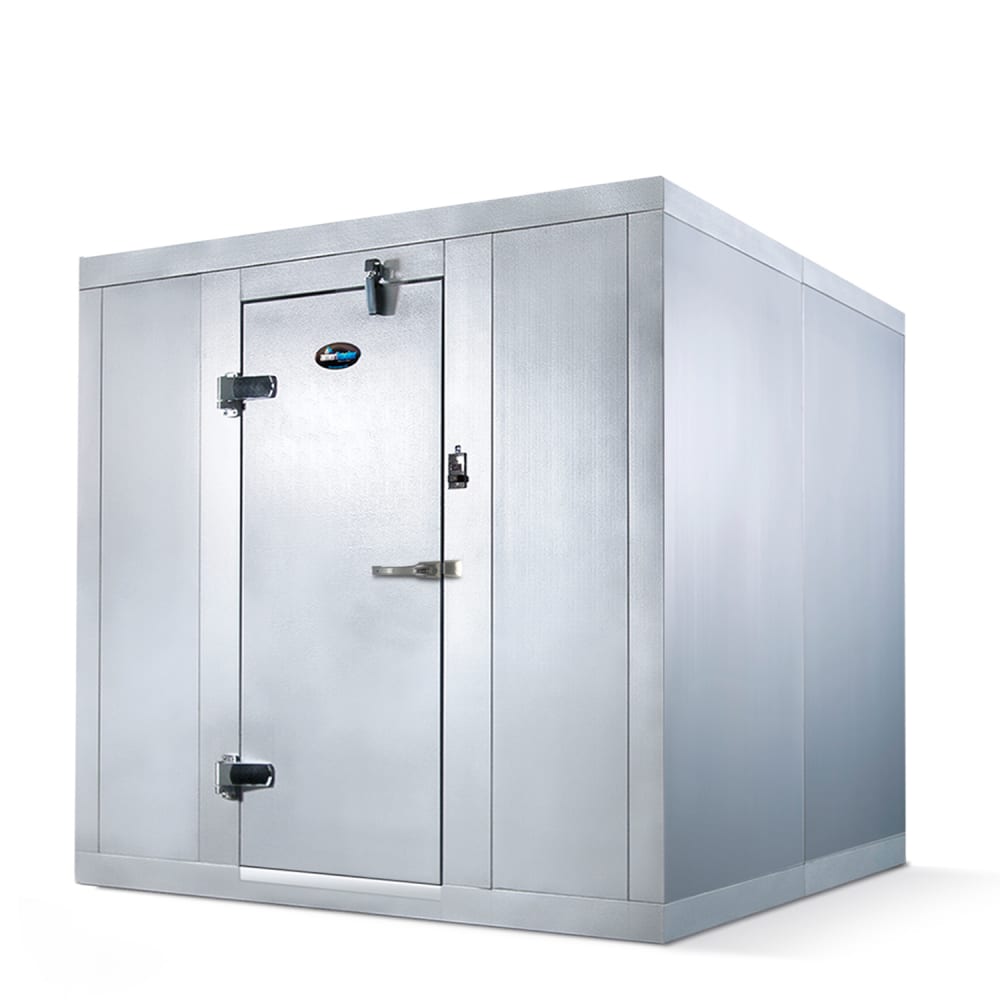

Amerikooler QF101282**FBRM-O-448A 10' x 12' Outdoor Walk-In Freezer w/ Remote Compressor - Floor

The Amerikooler QF101282**FBRM-O-448A outdoor walk-in freezer is built to provide durable cold storage in exterior environments. It features an aluminum floor and four-inch-thick AK-XPS4 insulation, offering R-29 thermal resistance for coolers and R-32 for freezers. The interior and exterior surfaces are constructed of corrosion-resistant 26-gauge stucco-embossed Acrylume, coated with acrylic paint for additional protection. A cam-action locking system and factory-installed compression gaskets create a secure and airtight seal between panels, ensuring long-term structural integrity.

The Amerikooler QF101282**FBRM-O-448A walk-in freezer includes a flush self-closing door with a keyed deadbolt handle and interior safety release for added security. Two super cam-lift spring-assisted hinges, a flexible double-wiper bottom gasket, and a spring-actuated door closer ensure a tight seal. A digital LED thermometer with an on/off pilot light switch provides accurate temperature readings, while a prewired vapor-proof LED light fixture mounted on the door jamb maximizes interior visibility. This unit is equipped with a Bohn outdoor remote refrigeration system using R-448A refrigerant, operating at -10 degrees Fahrenheit with a 3-horsepower capacity, sized for a 95-degree Fahrenheit ambient temperature.

Product Details

• For outdoor use
• 10-ft. W x 12-ft. L box size
• 26-gauge stucco-embossed Acrylume exterior and interior
• Aluminum floor construction
• 4-in.-thick AK-XPS4 insulation
• R-29 thermal resistance for coolers
• R-32 thermal resistance for freezers
• Cam-action locking system with compression gasket
• Flush self-closing door
• Keyed deadbolt handle with interior safety release
• 2 super cam-lift spring-assisted hinges
• Spring-actuated door closer
• 3-sided magnetic gasket and flexible double-wiper bottom gasket
• Prewired vapor-proof LED light fixture
• Digital LED thermometer with on/off pilot light switch
• Door jamb constructed with non-conductive heavy-duty PVC extrusion
• Outdoor accessories: rain roof, door hood, and perimeter angles

Refrigeration System

• Bohn outdoor remote refrigeration system
• Uses R-448A refrigerant
• Temperature holding range: -10 degrees Fahrenheit
• For 95-degree F ambient temperature

Dimensions & Utilities

• 9 ft., 9³⁄₄ in. W x 11 ft., 9¹⁄₄ in. L x 8 ft., 2¹⁄₄ in. H
• 3 HP
• 208/230 V/60 Hz/1 ph

*Free shipping on Amerikooler QF101282**FBRM-O-448A within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Freezer, 9'-9 3/4" W x 11'-9 1/4" L x 8'-2 1/4" H, With Aluminum Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, flush self-closing door with keyed heavy-duty deadbolt handle, digital LED thermometer with pilot light switch, 2 super cam-lift spring assisted hinges & door closer, prewired LED light fixture, Outdoor Accessories Include: Rain Roof, Door Hood, and Perimeter Angles, Bohn outdoor remote R-448A refrigeration, -10°F, 3 HP, BCH0030LBACZA0200-BEL0100BS6EEAB0402 with EC motor, sized at 95°F ambient temperature, subject to terms & conditions, UL, Made in USA.

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal

Amerikooler QF101282**FBRM-O-448A Specifications

Documents

Spec Sheet

Warranty

Product Info

Brochure
