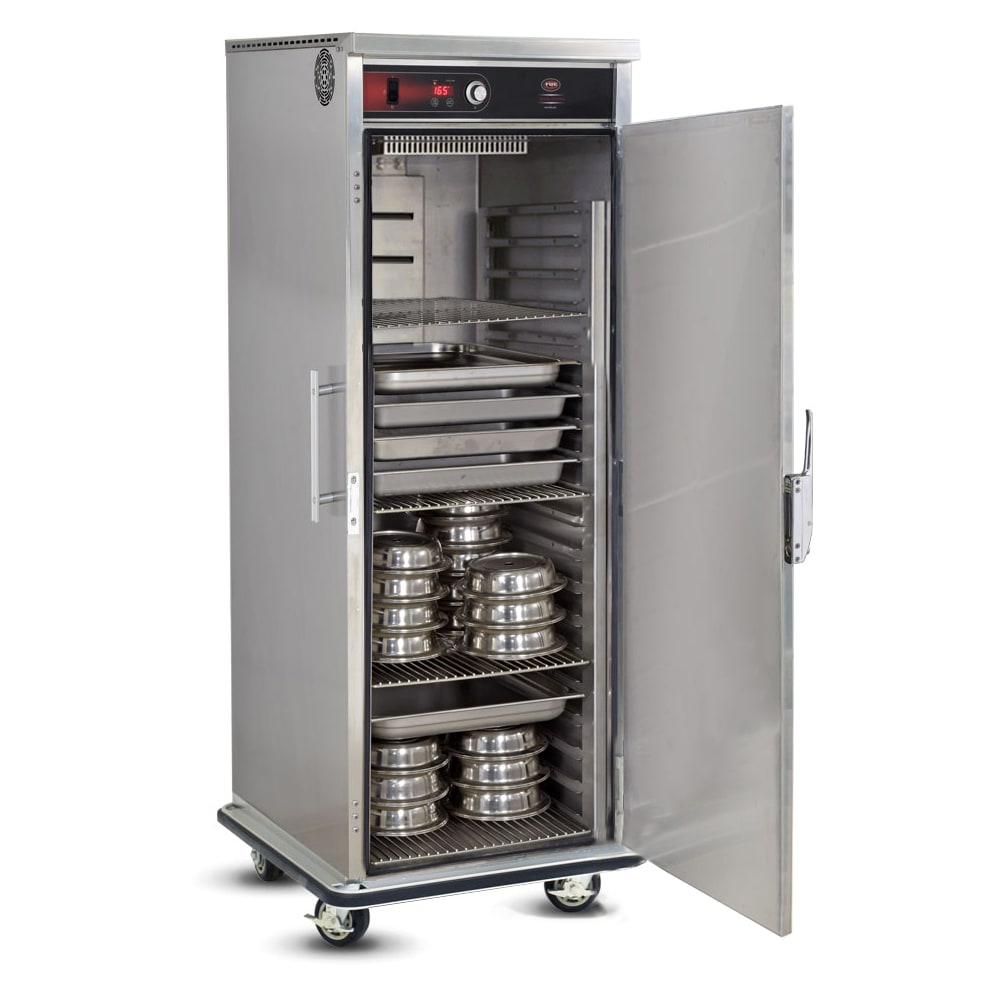

FWE UHST-GN-6480-BQ Full Height Insulated Mobile Heated Cabinet w/ (19) Pan Capacity, 120v

For catering events, the FWE UHST-GN-6480-BQ Ultra-Universal Series heated cabinet supports 64 to 80 covered plates and as many as 38 pans. Each of the 19 stainless steel rails hold a 22.25-inch by 33-inch triple-plated, welded shelf, which is removable and adjustable for versatility. Its insulated door swings open for full access to the interior contents, simplifying inventory checks and organization, and the door’s magnetic latch, which has a full grip, ensures a positive closing mechanism to prevent heat loss.

Its top, back, bottom, sides, and door retain heat with high-density ceramic and fiberglass insulation, and the entire unit is constructed of durable stainless steel. Designed for transportation, it has two rigid casters and two swivel casters to move forward, reverse, and park as needed. Users push the unit with the 1-inch by 0.38-inch solid-formed push-bar handles along its sides.

The FWE UHST-GN-6480-BQ commercial heated cabinet minimizes cold spots by forcing hot air throughout the cabinet with the top-mounted heat system. Located in the top heat chamber, it’s separated from the food cabinet and vented for uniform circulation. This design also protects the heating cabinet from spills at the bottom of the unit and increases easy-to-clean space. With a set range of 90 to 190 degrees Fahrenheit, users can adjust temperature at the electronic controls located at the front of the unit. To prevent damage to stored food, a low-temperature alarm will sound if temperature drops unexpectedly, and an indicator light signals the unit is on.

Product Details

• Mobile application
• Reach-in design
• Temperature range: 90-190 degrees F
• Stainless steel construction
• Insulated top, back, bottom, sides, and door
• 19 rails with 3-in. spacing
• 4 removable shelves
• Maximum capacity: (64-80) 10.5-in.-diameter covered plates or (38) 1/1 full-size Gastro-Norm pans
• Top-mounted forced-air system
• Front features adjustable control thermostat
• Low-temperature alarm
• Solid door with sealed gaskets and magnetic latch
• Full-perimeter bumper
• 5-in. casters (2 swivel, 2 rigid)
• Power indicator light
• Removable humidity reservoir

Dimensions & Utilities

• Push-bar handles: 1 in. x 0.375 in.
• Overall: 35.25 in. W x 30.75 in. D x 76.25 in. H
• 14.1 A, 1.7 kW
• 120 V/60 Hz/1 ph, tri-directional power cord with NEMA 5-15P plug

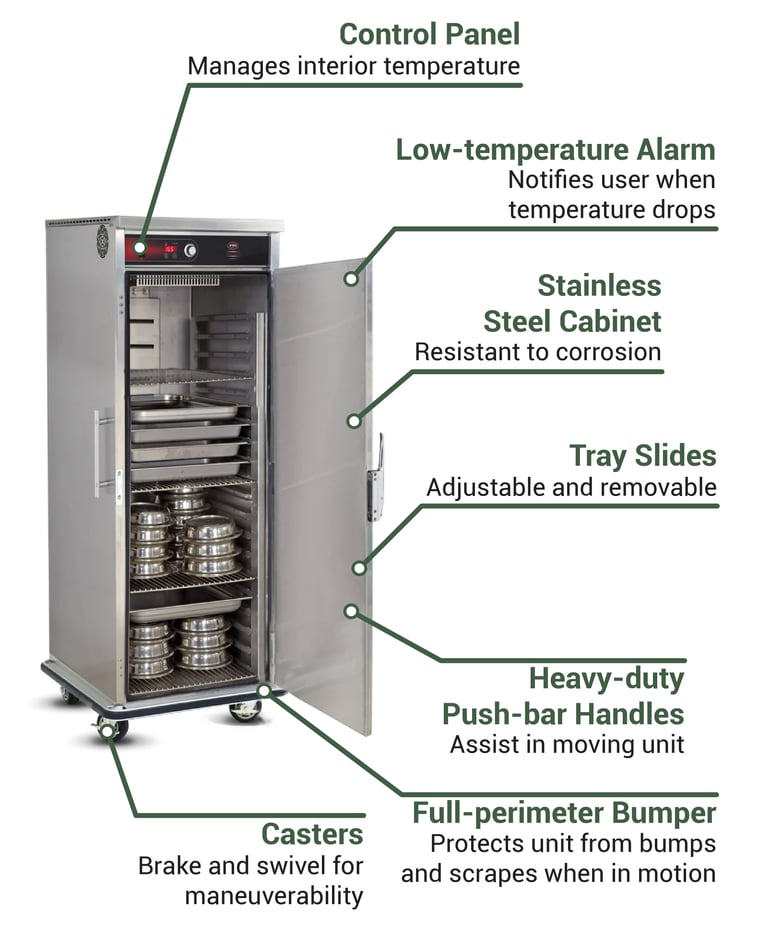

Product Features

From The Manufacturer

Ultra-Universal Heated Banquet Cabinet, mobile, 30-3/4", (64-80) 10-1/2" diameter covered plate or (38) 1/1 GN pan capacity, (19) sets of rails on 3" spacing, top mounted forced-air blower system, adjustable thermostat, 90°F to 190°F temperature range, (1) gasket sealed door with magnetic latch, insulated, (4) removable rod-type shelves, removable humidity reservoir, (1) push-bar handle on each end, full perimeter bumper, fully welded stainless steel construction, 5" casters, (2) swivel, (2) swivel with brake, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

2-year Limited Parts; 1-year Limited Labor

FWE UHST-GN-6480-BQ Specifications

Documents

Spec Sheet

Warranty

Certifications
