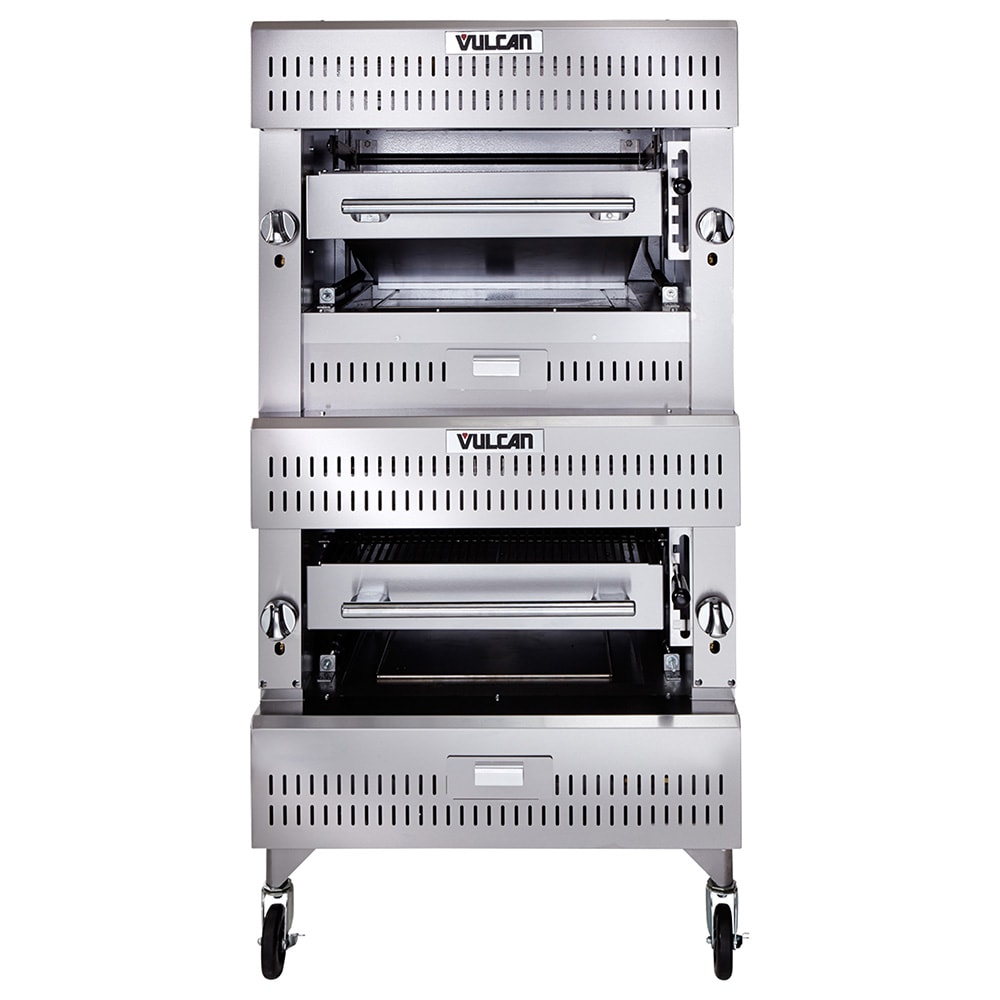

Vulcan VIB2 Double Deck Liquid Propane Broiler - Infrared Over Ceramic, 200,000 BTU

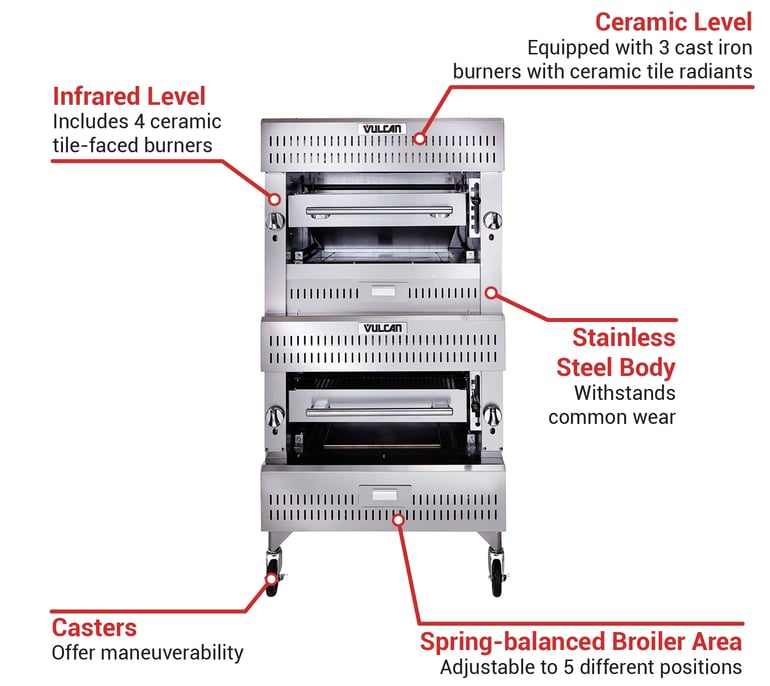

To optimize operation, the Vulcan VIB2 double-deck broiler has two levels. The top level is heated by four 25,000-BTU ceramic tile-faced burners, and the bottom has three 32,500-BTU cast iron burners with ceramic tile radiants for efficient heating. Each deck has two infinite heat controls so the user can easily adjust the temperature for desired results. To support a variety of foods, the spring-balanced broiler areas have a 25¹⁄₂-inch-wide by 24¹⁄₂-inch-deep structure, and they’re made of steel bars that can be adjusted to five different positions with roller bearings depending.

Because it has insulation between its inner and outer walls, heat is retained in the Vulcan VIB2 broiler, enabling back-to-back use for high-traffic establishments. Its body is made of durable stainless steel to endure common wear from daily use, and it measures 36 inches wide by 37¹⁄₂ inches deep by 74 inches high. For maneuverability, it sits atop 5-inch casters, enabling it to turn, reverse, and remain in place for extended periods of time.

Product Details

• Part of the V series
• Double-deck design
• Stainless steel body
• Top level has (4) 25,000-BTU ceramic tile-faced burners
• Bottom deck has (3) 32,500-BTU cast iron burners with ceramic tile radiants
• Insulation sits between outer and inner walls
• 2 infinite heat controls per level
• 2 cold-rolled steel cooking grids with 5 adjustable positions
• Grids adjust on roller bearings
• Heat-retaining insulation between outer and inner walls
• (4) 5-in. casters
• 6-in. clearance required for each side and rear
• 200,000 BTU

Dimensions & Utilities

• Cooking grids: (2) 25¹⁄₂ in. W x 24¹⁄₂ in. D
• Overall: 36 in. W x 37¹⁄₂ in. D x 74 in. H
• Uses LP gas
• Rear gas connection with 1-in. regulator

Product Features

*Free shipping on Vulcan VIB2 within the 48 contiguous states.

From The Manufacturer

V Series Deck-Broiler, Heavy Duty range match, Gas, double-deck, infrared over ceramic, (2) 25-1/2" x 24-1/2 cooking grids, spring balanced, 5 position grip, stainless steel front, top & sides, 5" casters, 1" rear gas manifold with regulator, 200,000 BTU, NSF, CSA Star, CSA Flame

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VIB2 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
